Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock

CONTACTOR REVERSING IEC STYLE

SQDLAD9R1 LAD9R1 3389110393972
49.70 / EA
http://schema.org/OutOfStock

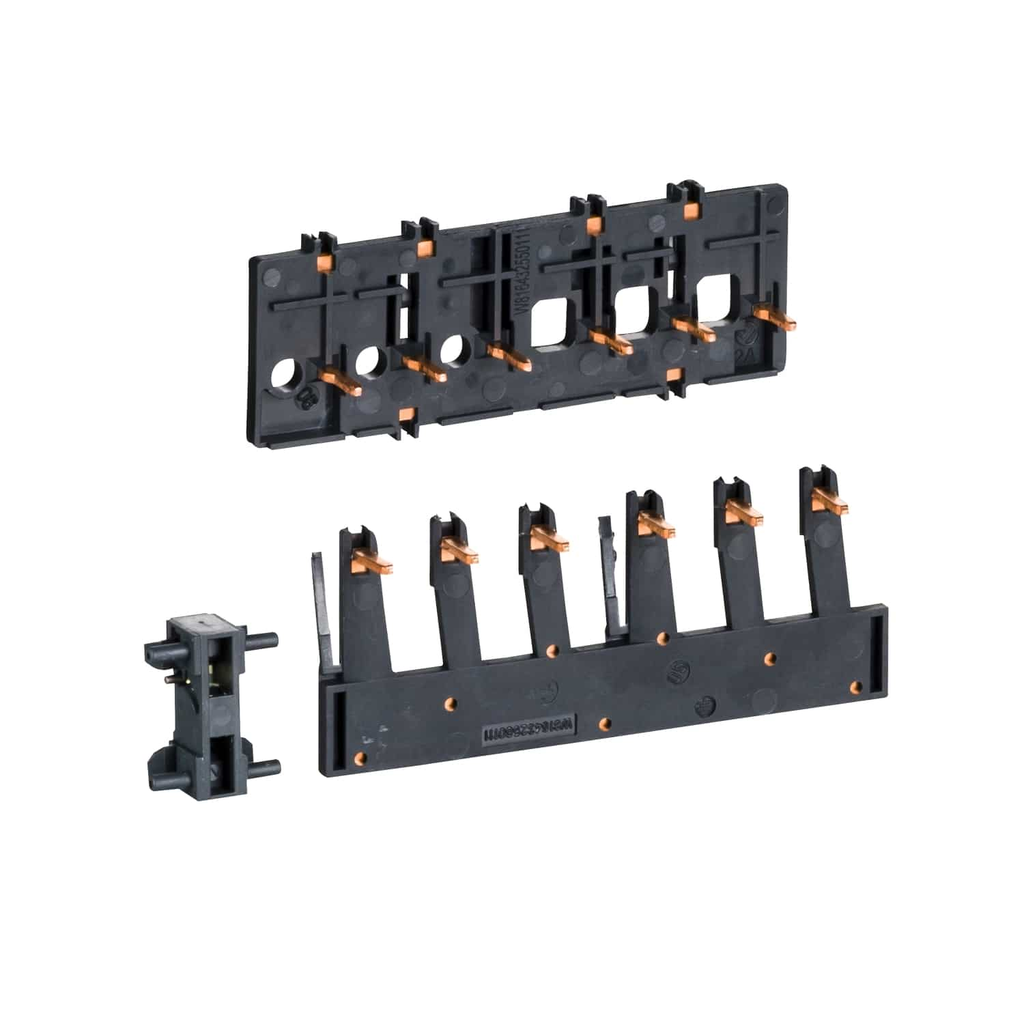

Mayer-DDS-Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock-1
  • Warranty Length: 18 mth
TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
QTY
  • Product Description
  • Specifications
TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=LAD9R1-CAD
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Kit Composition : mechanical interlock, set of power connection
    • Range : TeSys, Linergy
    • Medium Desc : Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Global Commercial Status : Commercialised
    • Html Descr : CONTACTOR KIT
    • Return Indicator : Y
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : LAD9
    • Device Short Name : LAD9
    • Energy Efficiency Optimized : False
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : kits for reversing contactor
    • Range Of Product : TeSys Deca
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Product Compatibility : LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : kits for reversing contactor
    • Range Of Product : TeSys Deca
  • ETIM
    • ETIM 8 : EC002498
    • ETIM 9 : EC002498
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, United Kingdom
