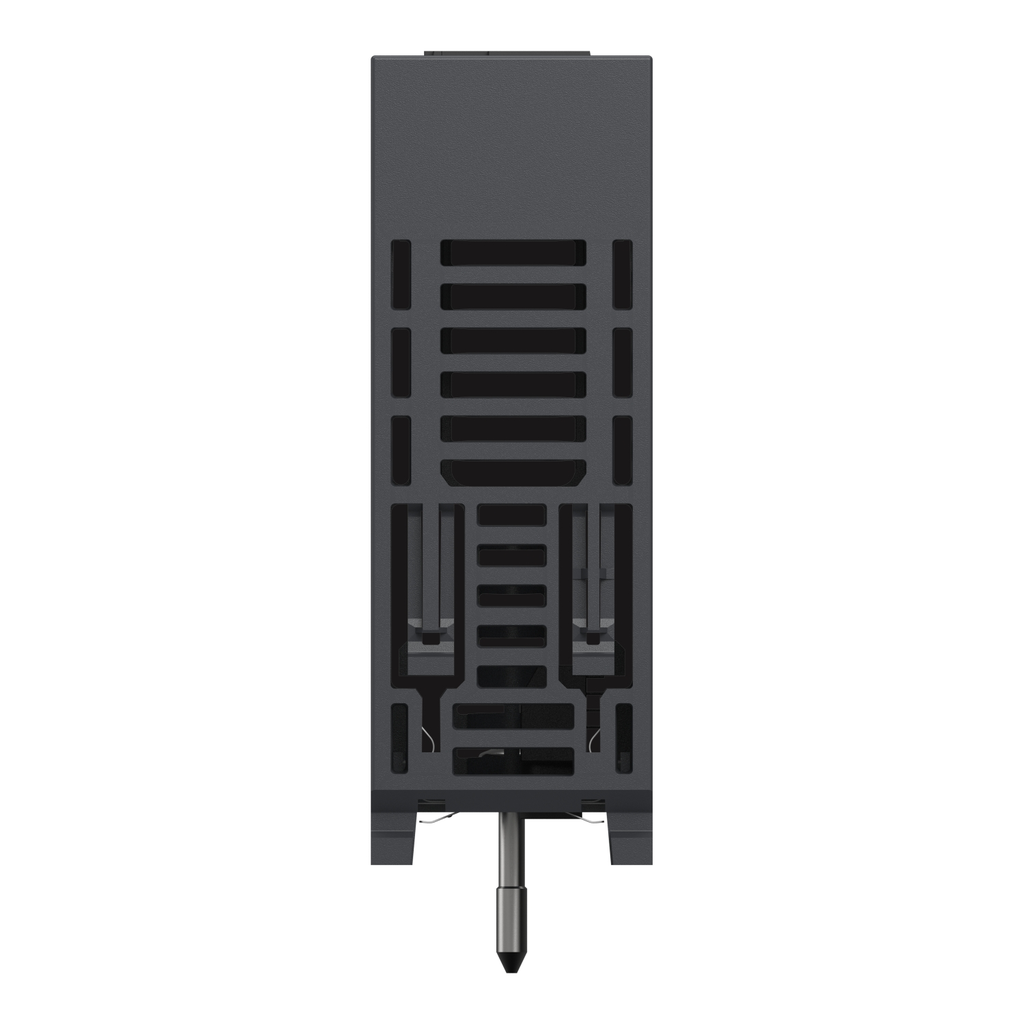

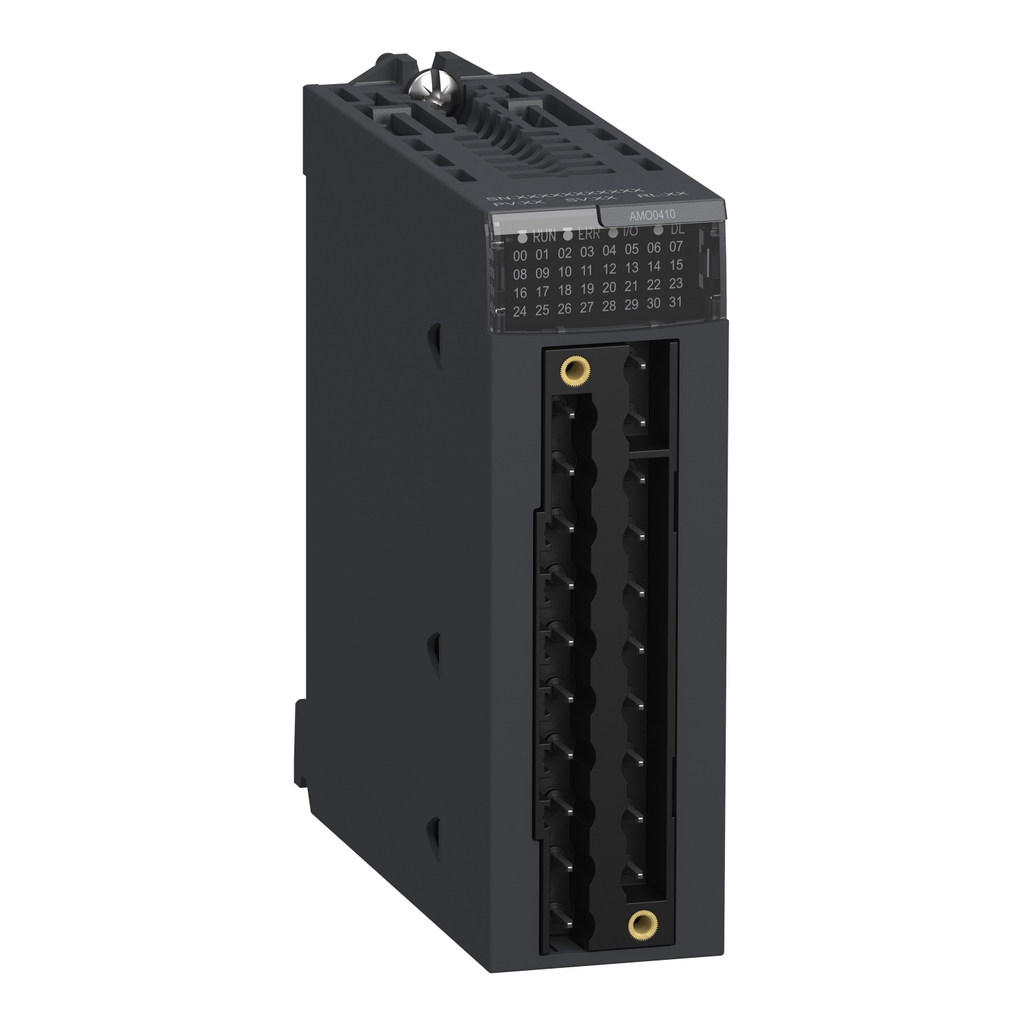

analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

ANA 4 U/I OUT ISOLATED

SQDBMXAMO0410 BMXAMO0410 3595864081571
811.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative-2
  • Country of Origin: USA
  • Net Weight: 0.15 kg
  • Warranty Length: 18 mth
  • Weight: 0.15 kg
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CE || RCM || CSA || EAC || Merchant Navy || UL
    • Ambient Air Temperature For Operation : 0-60 °C
    • Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
    • Shock Resistance : 30 gn
    • Vibration Resistance : 3 gn
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 204.7572223988
  • Complementary
    • Mtbf Reliability : 1000000 H
    • Fallback Mode : configurable || predefined
    • Measurement Error : <= 0.2 % of full scale 0...60 °C || 0.1 % of full scale 25 °C
    • Maximum Conversion Value : 0...21 mA 0...20 mA || 0...21 mA 4...20 mA || +/- 10.5 V +/- 10 V
    • Status Led : 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
    • Temperature Drift : 45 ppm/°C +/- 10 V || 45 ppm/°C 0...20 mA || 45 ppm/°C 4...20 mA
    • Analogue Output Type : current 0...20 mA || current 4...20 mA || voltage +/- 10 V
    • Common Mode Rejection : 100 dB
    • Output Level : high level
    • Supply : internal power supply via rack
    • Current Consumption : 150 mA 3.3 V DC || 140 mA 24 V DC
    • Minimum Crosstalk Attenuation : 80 dB
    • Net Weight : 0.15 kg
    • Isolation Voltage : 1400 V DC between channels and ground || 1400 V DC between channels and bus || 750 V DC between channels
    • Analogue Output Number : 4
    • Power Consumption In W : 3 W 24 V DC typical || 3.6 W 24 V DC maximum || 0.45 W 3.3 V DC typical || 0.51 W 3.3 V DC maximum
    • Load Impedance Ohmic : >= 1000 Ohm +/- 10 V || <= 500 Ohm 0...20 mA || <= 500 Ohm 4...20 mA
    • Detection Type : open circuit 0...20 mA || open circuit 4...20 mA || short circuit +/- 10 V
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Analogue Output Resolution : 15 bits + sign
    • Conversion Time : <= 1 ms
  • Specifications
    • Country of Origin : United States
    • Weight : 0.15 kg
    • Range Of Product : Modicon X80
    • Product Or Component Type : analog output module
    • Electrical Connection : 20 ways 1 connector
    • Input Output Isolation : isolated
