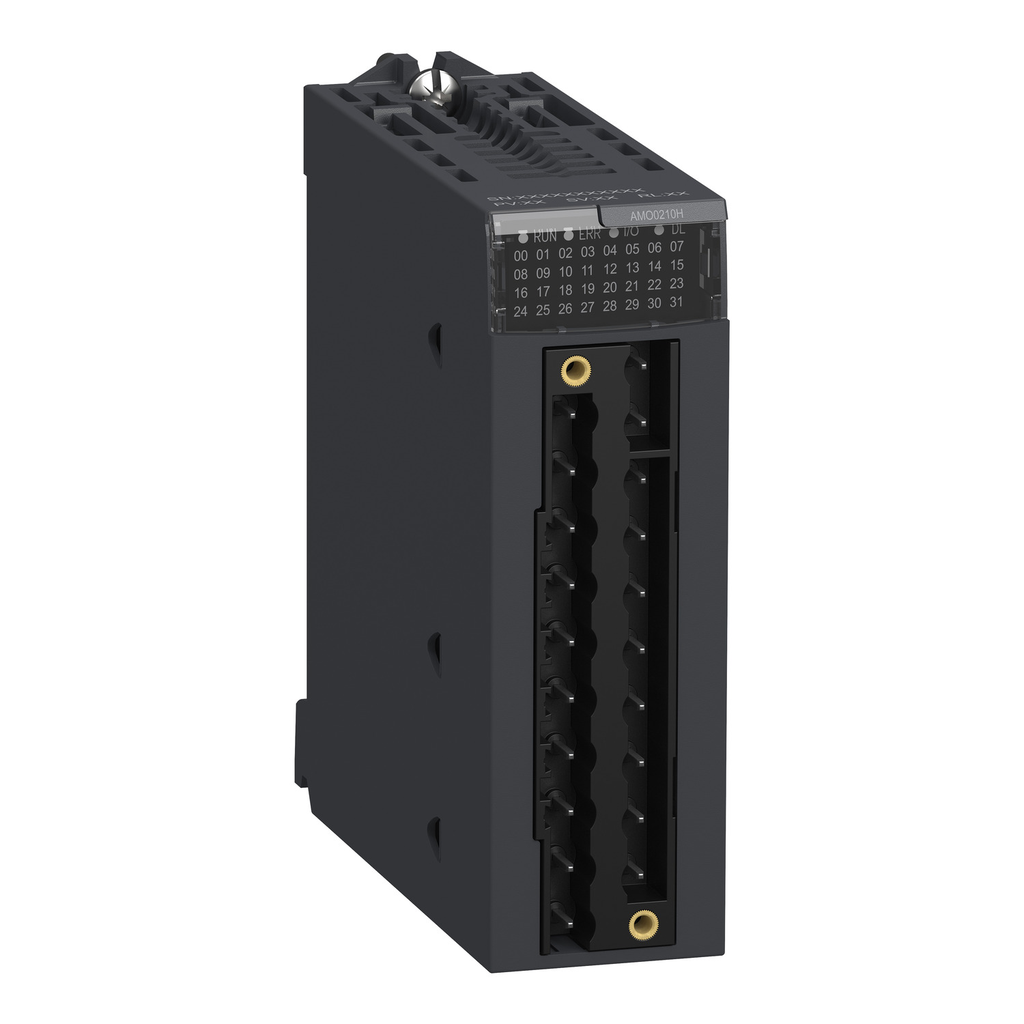

Analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA / 4 to 20mA, 10V positive or negative, for severe environments

H ANA 2 U/I OUT ISOLATED

SQDBMXAMO0210H BMXAMO0210H 3595864025322
926.42 / EA
http://schema.org/OutOfStock

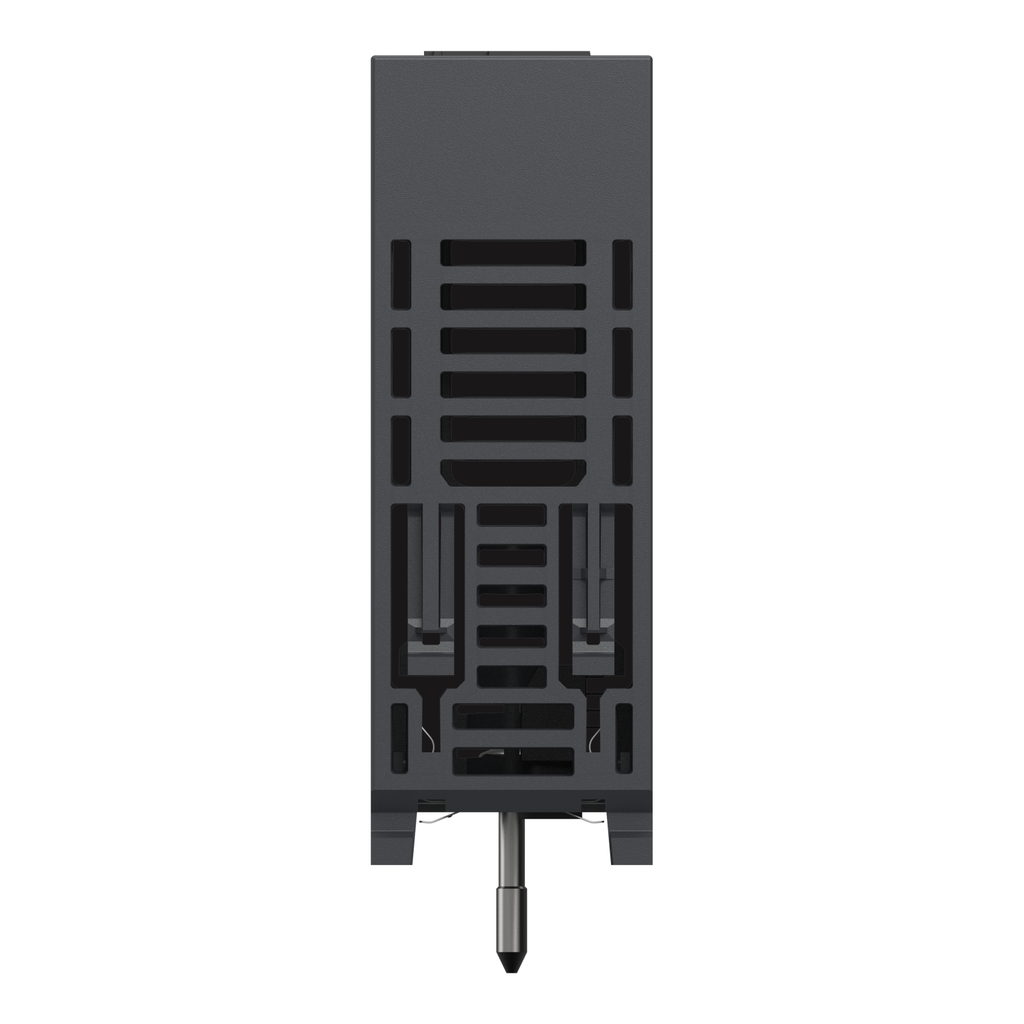

Mayer-DDS-Analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA / 4 to 20mA, 10V positive or negative, for severe environments-2
  • Warranty Length: 18 mth
This analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 2 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1301835 hours of MTBF. This analog module has a weight of 0.144kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 2 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1301835 hours of MTBF. This analog module has a weight of 0.144kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Conversion Value : +/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V, 0...24 mA 0...20 mA, 0...24 mA 0...20 mA, 0...24 mA 4...20 mA, 0...24 mA 4...20 mA
    • Minimum Crosstalk Attenuation : 90 dB
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : 150 mA 3.3 V DC, 150 mA 3.3 V DC, 150 mA 3.3 V DC, 110 mA 24 V DC, 110 mA 24 V DC, 110 mA 24 V DC
    • Detection Type : open circuit 0...20 mA, open circuit 0...20 mA, open circuit 4...20 mA, open circuit 4...20 mA, short circuit +/- 10 V, short circuit +/- 10 V
    • Electrical Connection : 20 ways 1 connector, 20 ways 1 connector
    • Environmental Characteristic : gas resistant class Gx, gas resistant class Gx, gas resistant class 3C4, gas resistant class 3C4, dust resistant class 3S4, dust resistant class 3S4, sand resistant class 3S4, sand resistant class 3S4, salt resistant level 2, salt resistant level 2, mold growth resistant class 3B2, mold growth resistant class 3B2, fungal spore resistant class 3B2, fungal spore resistant class 3B2, hazardous location
    • Fallback Mode : configurable, predefined
    • Isolation Voltage : 1400 V DC between channels and ground, 1400 V DC between channels and ground, 1400 V DC between channels and ground, 1400 V DC between channels and bus, 1400 V DC between channels and bus, 1400 V DC between channels and bus, 750 V DC between channels, 750 V DC between channels, 750 V DC between channels
    • Load Impedance Ohmic : <= 600 Ohm 0...20 mA, <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V
    • Measurement Error : 0.1 % of full scale 25 °C, 0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C
    • Power Consumption In W : 2.1 W 24 V DC typical, 2.1 W 24 V DC typical, 2.1 W 24 V DC typical, 2.1 W 24 V DC typical, 2.8 W 24 V DC maximum, 2.8 W 24 V DC maximum, 2.8 W 24 V DC maximum, 2.8 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.35 W 3.3 V DC typical, 0.35 W 3.3 V DC typical, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum, 0.48 W 3.3 V DC maximum, 0.48 W 3.3 V DC maximum, 0.48 W 3.3 V DC maximum
    • Status Led : 1 LED (Green) RUN, 1 LED (Green) RUN, 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED per channel (Green) channel diagnostic, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) ERR, 1 LED (Red) ERR, 1 LED (Red) I/O, 1 LED (Red) I/O, 1 LED (Red) I/O
    • Carbon Footprint Of The Distribution Phase A4 : 0.0239297455, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3247196364
    • Carbon Footprint Of The Installation Phase A5 : 0.0487290182, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 23 kg CO2 eq., 23.3818545455
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 126 kg CO2 eq., 125.9368435754
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-08
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 183.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : analog output module
    • Product Specific Application : for severe environments
    • Range Of Product : Modicon X80
    • Recalibration : factory calibrated
    • Returnability : No
    • Shock Resistance : 30 gn
    • Sustainable Packaging : Yes
    • Temperature Drift : 30 ppm/°C
    • Total Lifecycle Carbon Footprint : 150 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor, 2000...5000 m with derating factor
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation, 5-95 % 55-55 °C without condensation, 5-95 % 55-55 °C without condensation
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 149.7160765209
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Made With Recycled Cardboard : Yes
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : analog output module
    • Range Of Product : Modicon X80
  • Output Attributes
    • Analogue Output Type : current 0...20 mA, current 0...20 mA, current 4...20 mA, current 4...20 mA, voltage +/- 10 V, voltage +/- 10 V
    • Analogue Output Resolution : 15 bits + sign
    • Output Level : high level
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Output Isolation : isolated
