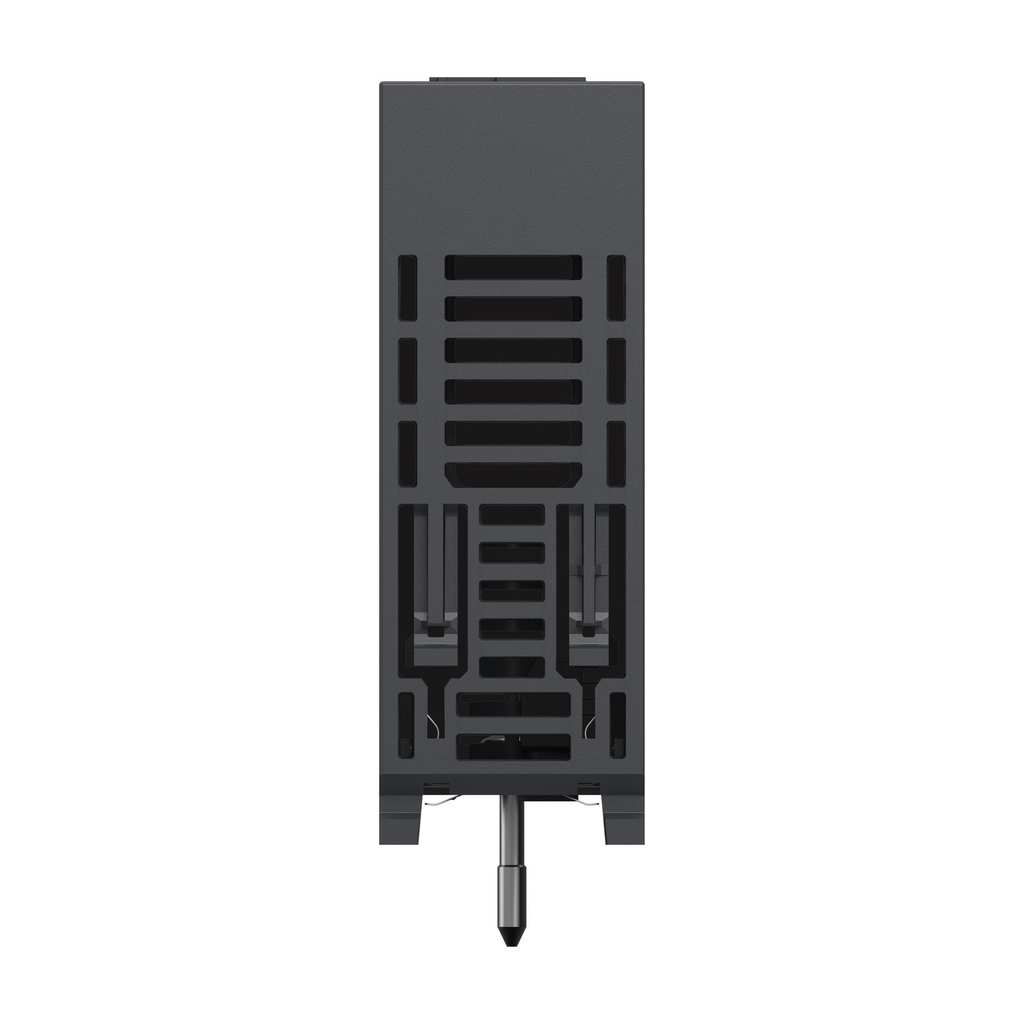

isolated analog input module X80 - 8 inputs - high speed - severe

isolated analog input module X80 - 8 inputs - high speed - severe

SQDBMXAMI0810H BMXAMI0810H 785901447474
1455.00 / EA
  • Certifications: ATEX, CE, CSA, EAC, IEC-Ex, Merchant Navy, RCM, UL
  • Impedance: 50 ohm
  • Net Weight: 0.175 kg
  • Standard: CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Environment
    • Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Vibration Resistance : 3 gn
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Protective Treatment : conformal coating
    • Ambient Air Temperature For Operation : -25-70 °C
    • Shock Resistance : 30 gn
    • Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location
    • Product Certifications : CE || RCM || CSA || EAC || Merchant Navy || UL || ATEX || IEC-Ex
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Common Mode Rejection : 80 dB
    • Analogue Input Resolution : 15 bits + sign
    • Net Weight : 0.175 kg
    • Type Of Filter : first order digital filtering
    • Fast Read Cycle Time : 1 ms + 1 ms x number of channels used
    • Minimum Crosstalk Attenuation : 80 dB
    • Precision Of Internal Conversion Resistor : 0.1 % - 15 ppm/°C
    • Digital Value Format : 32768 to + 32767 in maximum user scale || +/- 10000 by default
    • Isolation Voltage : 300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus
    • Nominal Read Cycle Time : 9 ms for 8 channels
    • Analog/Digital Conversion : 16 bits
    • Power Consumption In W : 1.06 W 24 V DC typical || 1.50 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
    • Input Impedance : 10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
    • Status Led : RUN 1 LED Green) || channel diagnostic 1 LED per channel Green) || ERR 1 LED Red) || I/O 1 LED Red)
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Permitted Overload On Inputs : +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 30 mA +/- 20 mA
    • Measurement Resolution : 0.36 mV +/- 10 V || 0.36 mV 0...10 V || 0.36 mV 0...5 V || 0.36 mV 1...5 V || 0.36 mV +/- 5 V || 1.4 µA +/- 20 mA || 1.4 µA 0...20 mA || 1.4 µA 4...20 mA
  • Product Or Component Type : analog input module
  • Electrical Connection : 28 ways 1 connector
  • Input Output Isolation : isolated
  • Analogue Input Type : current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
  • Range Of Product : Modicon X80
  • Input Level : high level
  • Product Specific Application : for severe environments
  • Analogue Input Number : 8
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP070204EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI0702004EN
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
