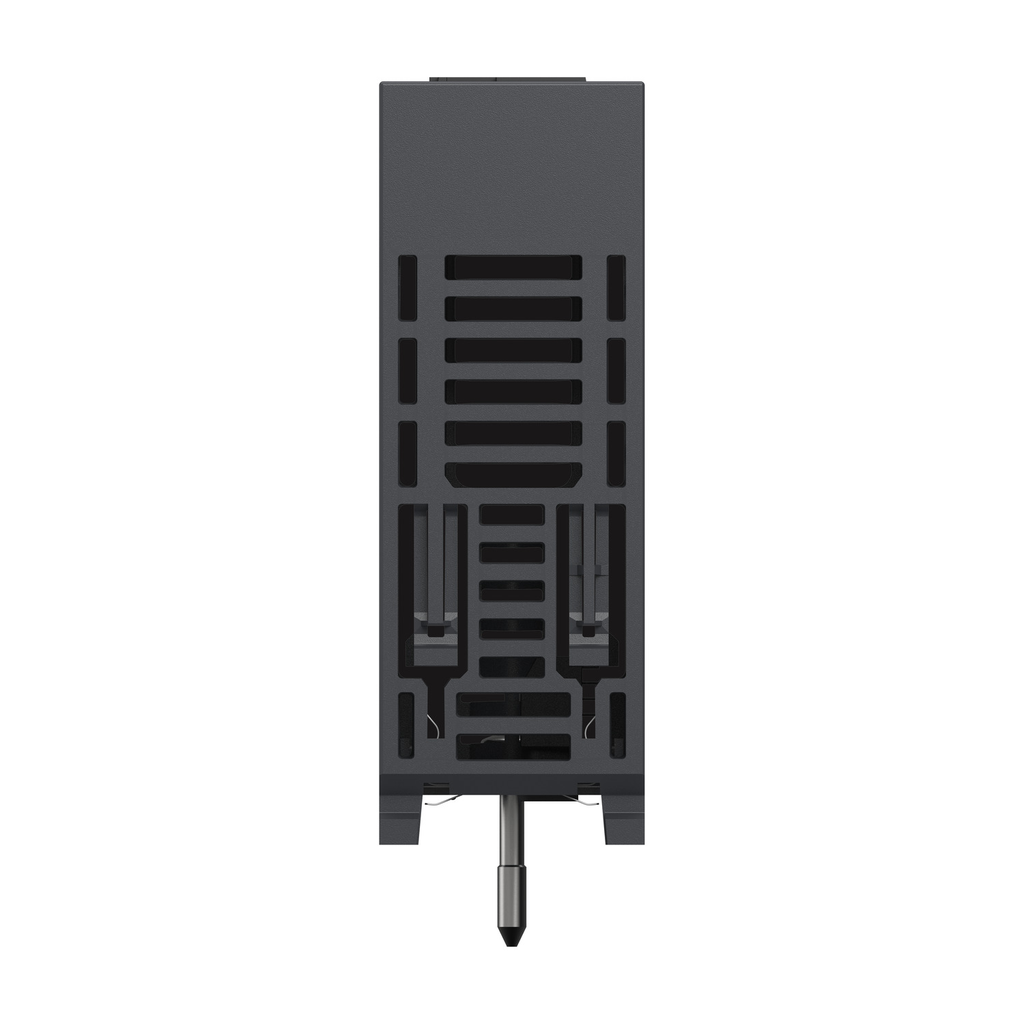

This high level analog input module is part of the Modicon X80 modules. It has 8 isolated analog inputs (15 bits + sign). This module is connected via 28-way removable terminal block. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : CE, RCM, CSA, EAC, Merchant Navy, UL
• Standards : IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
• Complementary Attributes
• Maximum Conversion Value : +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V
• Minimum Crosstalk Attenuation : 80 dB
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Current Consumption : 150 mA 3.3 V DC, 54 mA 24 V DC
• Digital Value Format : - 32768 to + 32767 in maximum user scale, +/- 10000 by default, - 32768 to + 32767 in maximum user scale, +/- 10000 by default
• Isolation Voltage : 300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus
• Measurement Error : <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.075 % of full scale +/- 10 V 25 °C
• Measurement Resolution : 0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V, 1.4 µA +/- 20 mA, 1.4 µA 0...20 mA, 1.4 µA 4...20 mA
• Power Consumption In W : 1.06 W 24 V DC typical, 1.50 W 24 V DC maximum, 0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
• Status Led : 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
• Temperature Drift : 30 ppm/°C +/- 10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C 0...10 V, 30 ppm/°C 0...5 V, 30 ppm/°C 1...5 V, 50 ppm/°C +/- 20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C 4...20 mA
• Carbon Footprint Of The Distribution Phase A4 : 0.021576, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.29278
• Carbon Footprint Of The Installation Phase A5 : 0.043936, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.082
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 92 kg CO2 eq., 92.011
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 21.082
• Use Carbon Footprint : 92.011
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Analog Digital Conversion : 16 bits
• Common Mode Rejection : 80 dB
• Electrical Connection : 28 ways 1 connector
• Fast Read Cycle Time : 1 ms + 1 ms x number of channels used
• Mtbf Reliability : 900000 H
• Nominal Read Cycle Time : 9 ms for 8 channels
• Precision Of Internal Conversion Resistor : 0.1 % - 15 ppm/°C
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : analog input module
• Protective Treatment : standard version
• Range Of Product : Modicon X80
• Returnability : Yes
• Shock Resistance : 30 gn
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 113 kg CO2 eq.
• Type Of Filter : first order digital filtering
• Vibration Resistance : 3 gn
• Warranty In Months : 18
• Pep Code : ENVPEP2311046EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 165
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 141.1236
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Recyclability Potential In 2 : 3
• Offer Owner Code : 190786
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 2 : 21.062
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2 : 91.951
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 2 : 21.082
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 2 : 92.011
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2 : 249.6
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 1702
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 2 : 2.2102
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 267.09
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2 : 1368.6
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 2 : 86.541
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 101.02
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 2.2234
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle2 : 4667711
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 2 : 44586
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 2 : 42211
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 2 : 0.0655
• Materials For Recycling Kg Installation A5 2 : 0.006
• Net Use Of Fresh Water M3 Manufacturing A1 A3 2 : 0.1361
• Net Use Of Fresh Water M3 End Of Life C1 C4 2 : 11553
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 56586
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 14539
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D 2 : -0.1723
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 1954.26
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 249.6
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 1702
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 22102
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 258.99
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 1908.1
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2 : 24029
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D 2 : -0.5349
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 2156933
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 93911
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 206.1
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 0.1927
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 27309
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 27309
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 1951.53
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 246.87
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 1702
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 22102
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 2150311
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 87289
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 206.1
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 0.1927
• Water Use M3 Eq Manufacturing A1 A3 2 : 58454
• Water Use M3 Eq Operational Energy Use B6 2 : 36028
• Water Use M3 Eq End Of Life C1 C4 2 : 44137
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 113.451292
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : analog input module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001420
• ETIM 9 : EC001420
• Surge Protection And Filtering Attributes
• Type Of Filter : first order digital filtering
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : current +/- 20 mA, current 0...20 mA, current 4...20 mA, voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
• Input Impedance : 10 MOhm in voltage mode, 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
• Input Output Isolation : isolated, isolated
• Permitted Overload On Inputs : +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA, +/- 30 mA +/- 20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA
• Analogue Input Number : 8
• Analogue Input Resolution : 15 bits + sign
• Input Level : high level
