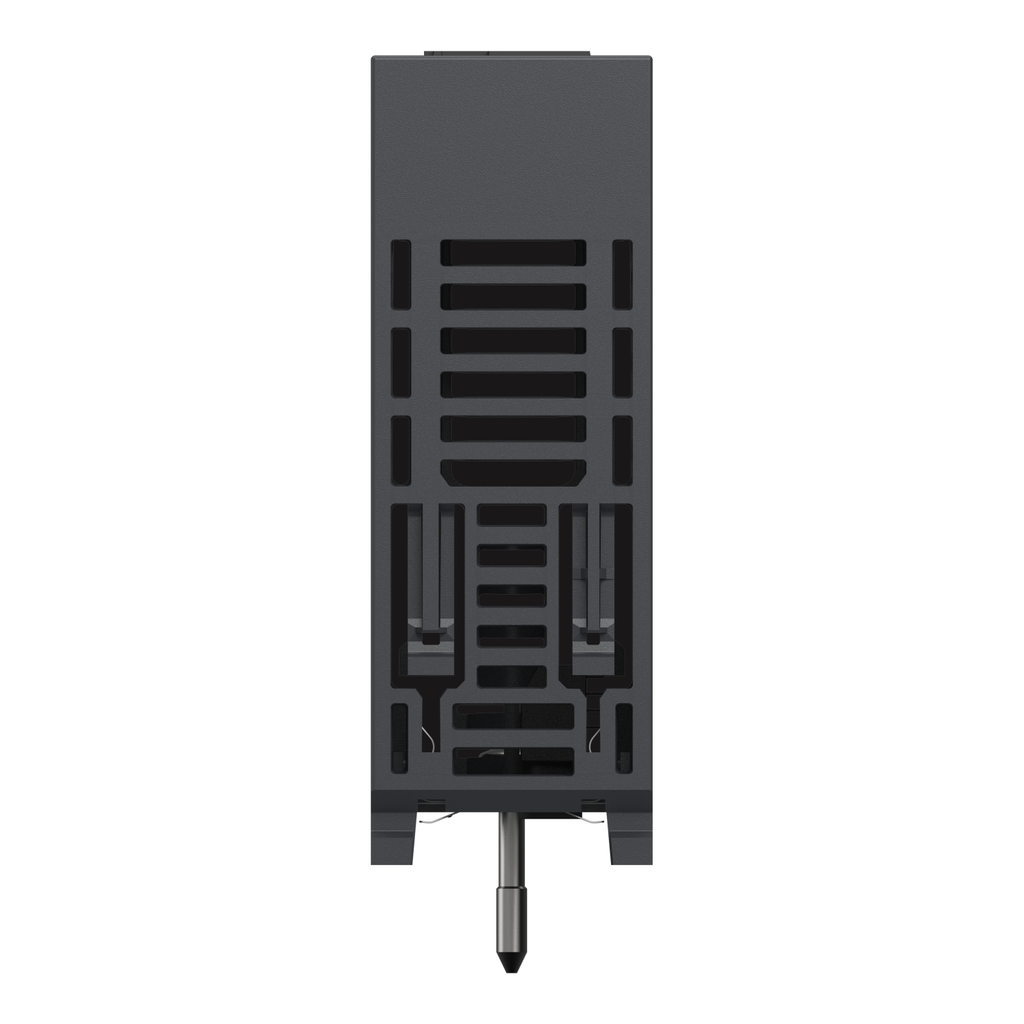

isolated analog input module X80 - 4 inputs - severe

isolated analog input module X80 - 4 inputs - severe

SQDBMXAMI0410H BMXAMI0410H 785901687276
765.13 / EACH
  • Certifications: ATEX, CE, CSA, EAC, IEC-Ex, Merchant Navy, RCM, UL
  • Impedance: 50 ohm
  • Net Weight: 0.143 kg
  • Standard: CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 4 inputs with 16bit resolution for severe environments. It is an input module with a power consumption of 1.3W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.143kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 4 inputs with 16bit resolution for severe environments. It is an input module with a power consumption of 1.3W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.143kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Environment
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Ip Degree Of Protection : IP20
    • Ambient Air Temperature For Storage : -40-85 °C
    • Product Certifications : CE || RCM || CSA || EAC || Merchant Navy || UL || ATEX || IEC-Ex
    • Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location
    • Protective Treatment : conformal coating
    • Shock Resistance : 30 gn
    • Ambient Air Temperature For Operation : -25-70 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Vibration Resistance : 3 gn
    • Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
  • Complementary
    • Precision Of Internal Conversion Resistor : 0.1 % - 15 ppm/°C
    • Digital Value Format : 32768 to + 32767 in maximum user scale || +/- 10000 by default
    • Common Mode Rejection : 90 dB
    • Analog/Digital Conversion : 24 bits
    • Fast Read Cycle Time : 1 ms + 1 ms x number of channels used
    • Minimum Crosstalk Attenuation : 80 dB
    • Permitted Overload On Inputs : +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 90 mA +/- 20 mA || +/- 90 mA 0...20 mA || +/- 90 mA 4...20 mA
    • Power Consumption In W : 0.82 W 24 V DC typical || 1.30 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
    • Input Impedance : 10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
    • Net Weight : 0.143 kg
    • Isolation Voltage : 300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus
    • Recalibration : internal
    • Status Led : RUN 1 LED Green) || channel diagnostic 1 LED per channel Green) || ERR 1 LED Red) || I/O 1 LED Red)
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Type Of Filter : first order digital filtering
    • Nominal Read Cycle Time : 5 ms for 4 channels
    • Analogue Input Resolution : 16 bits
    • Measurement Resolution : 0.35 mV +/- 10 V || 0.35 mV +/- 5 V || 0.35 mV 0...10 V || 0.35 mV 0...5 V || 0.35 mV 1...5 V || 0.92 µA +/- 20 mA || 0.92 µA 0...20 mA || 0.92 µA 4...20 mA
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP070204EN
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI0702004EN
    • Reach Free Of Svhc : Yes
  • Input Output Isolation : isolated
  • Product Specific Application : for severe environments
  • Product Or Component Type : analog input module
  • Electrical Connection : 20 ways 1 connector
  • Analogue Input Type : current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
  • Analogue Input Number : 4
  • Range Of Product : Modicon X80
  • Input Level : high level
  • Contractual warranty
    • Warranty : 18 months
