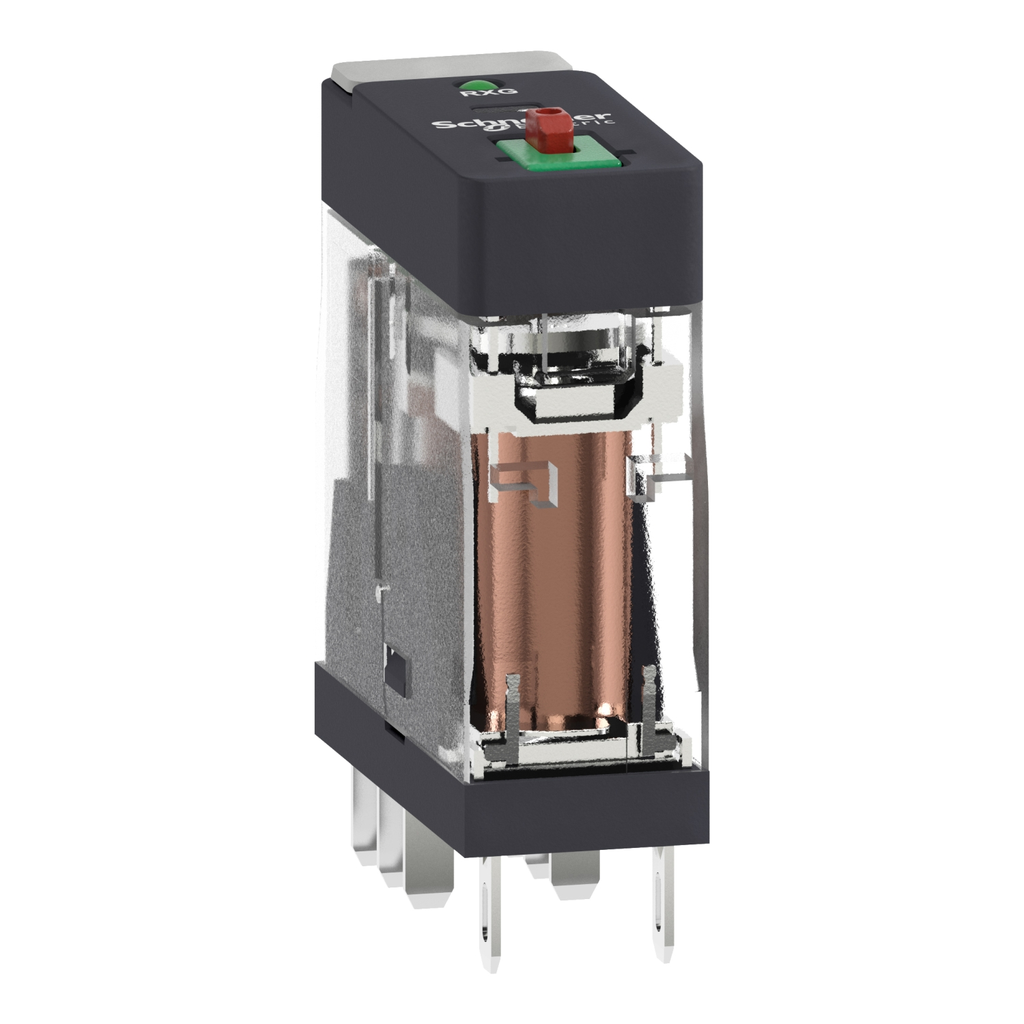

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 230V AC

RELAY 2CO 5A@250VAC 230VAC COI

SQDRXG22P7 RXG22P7 3606480689147
18.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 230V AC-1
  • Country of Origin: Indonesia
  • Dielectric Strength: 1000 V, 1300 V, 3000 V, 5000 V
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
  • Features
    • Help to reduce the size of enclosures
    • Provides economical solution for the implementation of many switching functions
    • Flexible design for space-saving
    • Latest interface relay with single-step lockable testing button
    • Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL, EAC, CE, CSA, DNV
    • Standards : CSA C22.2 No 14, UL 508, IEC 61810-1
  • Complementary Attributes
    • Control Circuit Type : AC
    • Maximum Switching Voltage : 250 V AC, 30 V DC
    • Line Rated Current : 5 A
    • Maximum Switching Capacity : 1250 VA
    • Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Control Type : lockable test button, lockable test but
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation, 1300 V AC terminals and case with basic insulation
    • Drop Out Voltage Threshold : >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC
    • Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
    • Product Or Component Type : plug-in relay
    • Status Led : with, w
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Ie Rated Operational Current2 : 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to UL
    • Uc Control Circuit Voltage2 : 230 V AC, 230 V
    • Ui Rated Insulation Voltage2 : 250 V IEC, 300 V CSA, 300 V UL
    • Uimp Rated Impulse Withstand Voltage2 : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 4000 V between poles with basic insulation
    • Carbon Footprint Of The Distribution Phase A4 : 0.06551564855924241, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.06466599441775461, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0007132401944399417
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.1841355813711413
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 15 kg CO2 eq., 14.6408260635045
    • Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    • Ie Rated Operational Current5 : 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to UL, 5 A at 250 V (AC) conforming to IEC
    • Ui Rated Insulation Voltage5 : 250 V IEC, 300 V CSA, 300 V UL
    • Uimp Rated Impulse Withstand Voltage5 : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 4000 V between poles with basic insulation
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-26
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2208012EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contact Resistance : 100 mOhm
    • Contacts Type And Composition : 2 C/O
    • Electrical Insulation Class : class F
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Load Current : 5 A 250 V AC
    • Local Signalling : flag
    • Mechanical Durability : 10000000 cycles
    • Operating Time : 20 ms
    • Overvoltage Category : III
    • Package Weight Lbs : 20.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : Harmony Electromechanical Relays
    • Relay Type : interface relay
    • Returnability : Yes
    • Series Name : RXG series
    • Shape Of Pin : flat (faston type)
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
    • Ithe Conventional Enclosed Thermal Current2 : 5 A -40-55 °C
    • Medium Desc : interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 230V AC
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Ats Control Circuit Type : AC
    • Pep Code : ENVPEP2208012EN
    • Database Version : 2023-02
    • Pep Verification Date : 2023-11-27
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : Harmony RXG relays are interface plug-in relays with faston pins for better reliability and robust installation. This relays offer a broad range of coil voltages from 6 V to 110 Va and 24 V to 230 Va. The RXG interface relay range comprises 10 A relays with 1 CO contact and 5 A relays with 2 CO contacts and it also offers sockets with separate or mixed contact terminals, built-in plastic maintaining clamp. Product is adhering to IEC 61810-1 & UL 508 standards.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : China, CN
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Average Resistance : 23500 Ohm at 23 °C +/- 15 %
    • Protection Category : RT I
    • Reset Time : 20 ms
    • Safety Reliability Data : B10d = 100000
    • Test Levels : level A group mounting
    • Utilisation Coefficient : 20 %
    • Global Commercial Status : Commercialised
    • Ithe Conventional Enclosed Thermal Current5 : 5 A -40-55 °C
    • Uc Control Circuit Voltage5 : 230 V AC
  • Environment Attributes Main
    • Take Back : Nej, No
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 14.955856528047079
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2208012EN
    • Environmental Disclosure : ENVPEP2208012EN
    • IP Degree Of Protection : IP40
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-85 %
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 2023-11-27
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Specifications
    • Country of Origin : Indonesia
  • Overview Attributes
    • Device Presentation : complete product
    • Presentation Of Legend : with
