CE, CSA, DNV-GL, EAC, UL
<= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
0.82 VA, 60 Hz
CSA C22.2 No 14, IEC 61810-1, UL 508

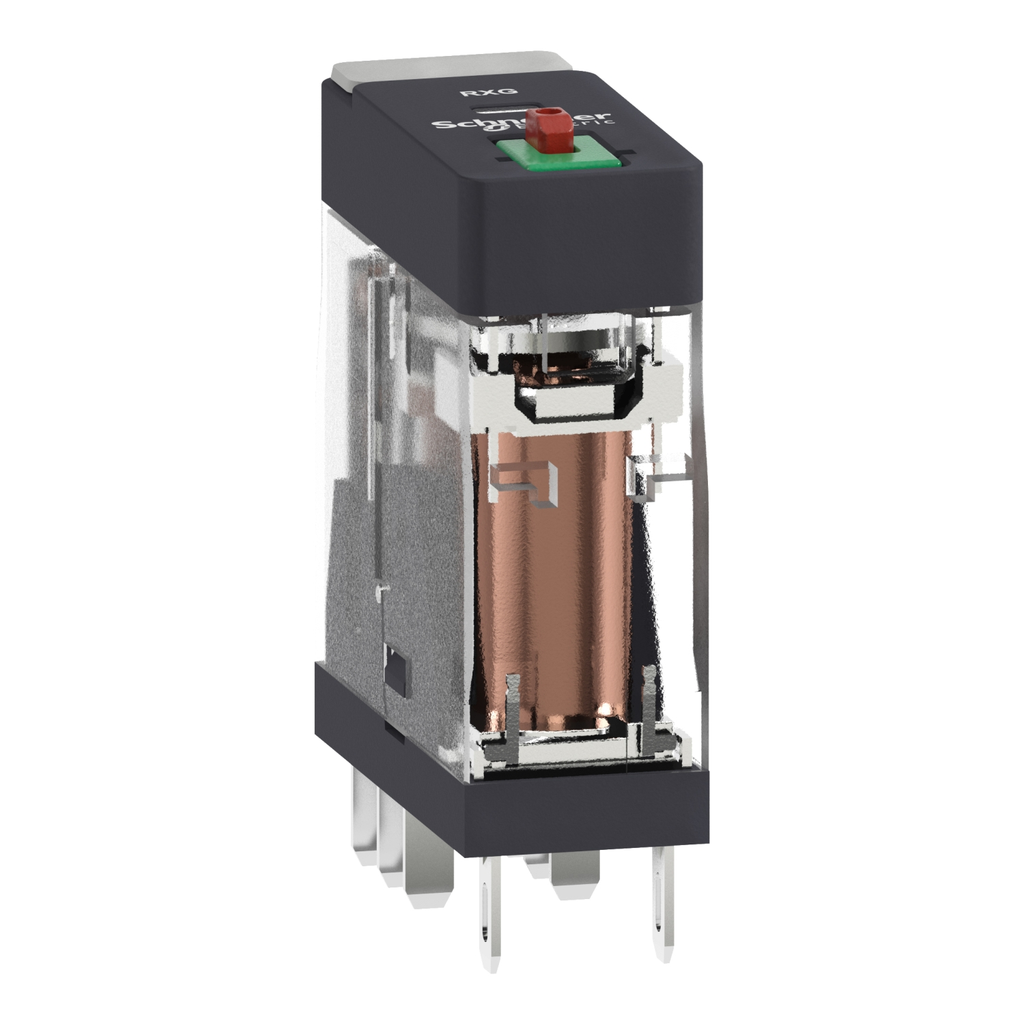

This Zelio RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers a lockable test button. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
