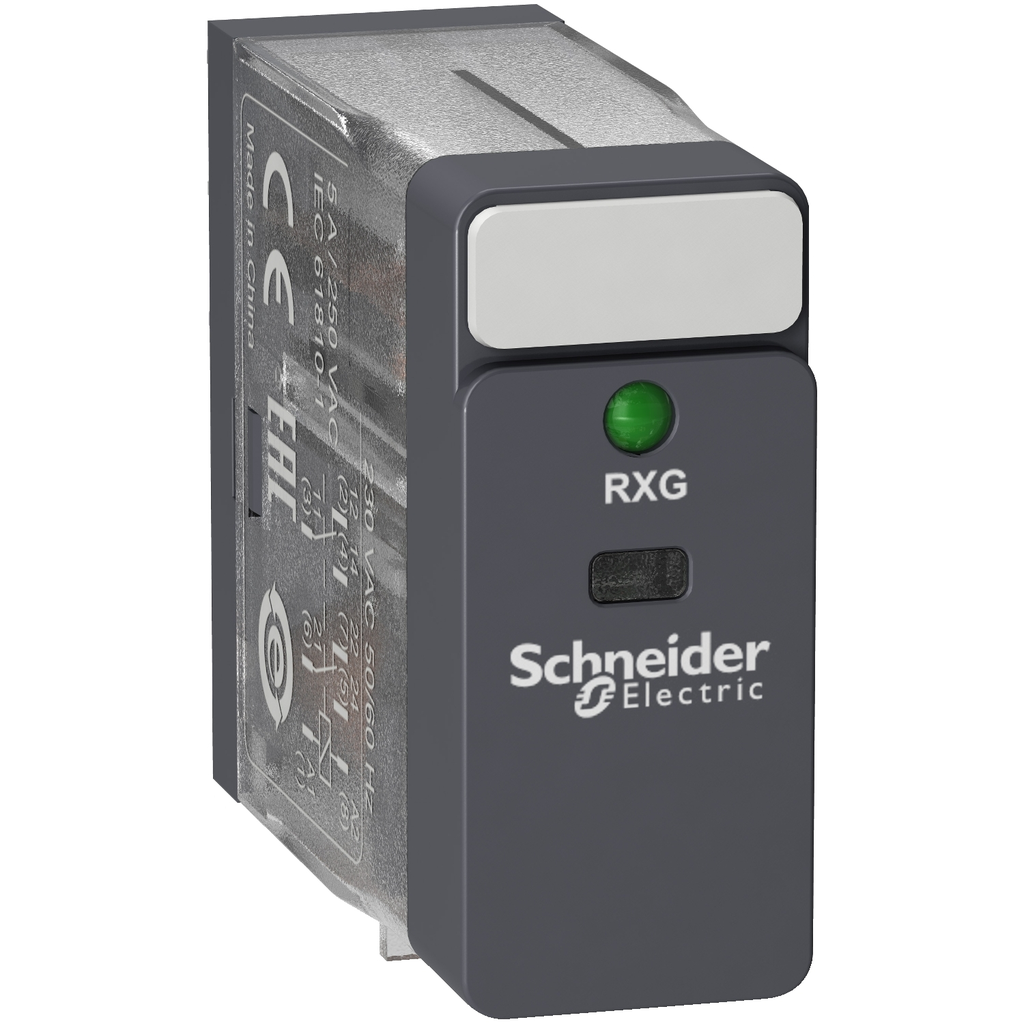

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 24V AC

5A@250VAC 24VAC COIL

SQDRXG23B7 RXG23B7 3606480689215
13.17 / EA
http://schema.org/OutOfStock
Mayer-DDS-interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 24V AC-1
  • Country of Origin: China
"This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design
QTY
  • Product Description
  • Features
  • Specifications
"This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design
  • Insulation Resistance
    • 1000 MOhm at 500 V DC
  • IE Rated Operational Current
    • 5 A at 30 V (DC) conforming to UL
    • 5 A at 30 V (DC) conforming to IEC
    • 5 A at 30 V (
  • Test Levels
    • level A group mounting
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004997_3D-CAD&p_File_name=MCADID0004997_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004997_3D-CAD&p_File_name=MCADID0004997_2D-back.dwg
    • https://downlo
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0007132401944399417
  • Load Current
    • 5 A 250 V AC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.06466599441775461
    • 0.1 kg CO2 eq.
  • Maximum Switching Voltage
    • 250 V AC
    • 30 V DC
  • UC Control Circuit Voltage
    • 24 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.2 kg CO2 eq.
    • 0.1841355813711413
  • UI Rated Insulation Voltage
    • 250 V IEC
    • 300 V CSA
    • 300 V UL
  • Accessories
    • RGZE1S48M
    • RGZE08P
  • Electrical Durability
    • 100000 cycles NO resistive at 55 °C
    • 100000 cycles NC resistive at 55 °C
    • 10
  • Vibration Resistance
    • 3 gn +/- 0.75 mm 10-150 Hz)in operation
    • 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • 5 gn +
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.3 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 10 kg CO2 eq.
    • 10.300035087813598
  • ITHE Conventional Enclosed Thermal Current
    • 5 A -40-55 °C
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1000 V AC between contacts with micro disconnection
    • 5000 V AC between coil and contact with reinfo
  • Carbon Footprint Of The Distribution Phase A4
    • 0.06551564855924241
    • 0.1 kg CO2 eq.
  • Average Resistance
    • 260 Ohm at 23 °C +/- 10 %
  • Minimum Switching Capacity
    • 50 mW at 10 mA, 5 V DC
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 1800 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • UIMP Rated Impulse Withstand Voltage
    • 1200 V AC between contacts with micro disconnection
    • 6000 V between coil and contact with reinforced insulation
    • 6000 V between coil and contact with re
  • Complementary Attributes
    • Maximum Switching Capacity : 1250 VA
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 10/15/2025
    • HTML Description : Interface plug-in relay, 5 A, 2 CO, LED, 24 V AC
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.184135581
    • Distribution Carbon Footprint : 0.065515649
    • Installation Carbon Footprint : 0.00071324
    • Use Carbon Footprint : 10.30003509
    • End Of Life Carbon Footprint : 0.064665994
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2208012EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Package Weight Lbs : 20.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : No
    • Series Name : RXG series
    • Shape Of Pin : flat (faston type)
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 11 kg CO2 eq.
    • Utilisation Coefficient : 20%
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 10.61506555
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 11/27/2023
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 33
    • Functional Unit Description : Harmony RXG relays are interface plug-in relays with faston pins for better reliability and robust installation. This relays offer a broad range of coil voltages from 6 V to 110 Va and 24 V to 230 Va. The RXG interface relay range comprises 10 A relays w
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 16.658016
    • Energy Model Manufacturing A1 A3 : China, CN
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    • Recyclability Potential In : 70
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.070829277
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.002850043
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.000269059
    • Acidification Ap Mole Of H Equiv Installation A5 : 2.76506E-06
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.067424636
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000282774
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.001306996
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.011203941
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.003128749
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -1.12991E-07
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.006740773
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.001334532
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.001298406
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 10.60385668
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.181001921
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.065515649
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.000713353
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 10.29329431
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.063331441
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.066965008
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 10.61506555
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.184135581
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.065515649
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.00071324
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 10.30003509
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.064665994
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.068263414
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000169536
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000167965
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 5.60461E-12
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 9.09931E-12
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 3.29122E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 1.24223E-06
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -1.64635E-05
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 200.5100205
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2.987158123
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.811282587
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.002412034
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 194.1045659
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2.604601866
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.997738389
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 162.0483934
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 4.294265316
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.26721273
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.031005166
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 153.8266748
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 3.629235385
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2.209979737
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 4.35102E-07
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 1.92957E-08
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 7.40794E-10
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 1.14183E-11
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 4.13499E-07
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 1.55493E-09
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -2.08611E-08
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.000199195
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 2.65306E-05
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.000172665
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 5.77315E-05
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 8.80083E-06
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 7.63481E-09
    • Freshwater Eutrophication Kg P Eq Installation A5 : 9.89464E-10
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 9.75345E-06
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 3.91686E-05
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -1.78967E-07
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1.53358184
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.533547053
    • Hazardous Waste Disposed Of Kg Distribution A4 : 5.40203E-05
    • Hazardous Waste Disposed Of Kg Installation A5 : 1.21812E-06
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : -2.04523E-05
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.356848875
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.63771E-07
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.62432E-07
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 9.60331E-13
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 4.11801E-11
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.25428E-09
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 4.19704E-11
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -2.03678E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 9.28806E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.7616E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 1.51441E-10
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 1.41151E-11
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 6.13982E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 3.70084E-09
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -1.5243E-08
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.248377921
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.035737147
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.096685493
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.115955281
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 7.763558888
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 2.45370935
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00014456
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 2.06459E-06
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 5.30785572
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.001847193
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -1.700049815
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.007896593
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.00029895
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000122431
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 1.2866E-06
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.007426616
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 4.73094E-05
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -4.49098E-05
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.020078362
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.002622974
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.017455388
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.015471669
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.004866394
    • Net Use Of Fresh Water M3 Distribution A4 : 7.7019E-05
    • Net Use Of Fresh Water M3 Installation A5 : 1.20285E-05
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.009432127
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0010841
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.001660414
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 1.830483031
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.185072703
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 6.63632E-05
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.005328779
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.631547404
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.008467781
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.021538417
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 1.65907E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 5.74351E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 5.75382E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 8.25957E-12
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 5.02579E-08
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 6.67636E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -2.01826E-08
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.026257353
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.001128999
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00044272
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 3.15277E-06
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.024520612
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000161869
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.000241418
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.00023311
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 3.52113E-05
    • Radioactive Waste Disposed Of Kg Distribution A4 : 1.29634E-05
    • Radioactive Waste Disposed Of Kg Installation A5 : 9.76387E-09
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000184536
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.88775E-07
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.07768E-05
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.097531564
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.003243213
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.001328007
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 1.32575E-05
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.092381017
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00056607
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00051218
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.33019294
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.33019294
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 227.9458062
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3.15420109
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.811287891
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.002416235
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 221.3433862
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.634514781
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.028277745
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 27.43578573
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.167042967
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 5.30403E-06
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.20017E-06
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 27.23882034
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.029912916
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.030539355
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.33019294
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.33019294
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 200.1798276
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.656965183
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.811282587
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.002412034
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 194.1045659
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.604601866
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.997738389
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.106451724
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.106451724
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 27.329334
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.060591243
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 5.30403E-06
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.20017E-06
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 27.23882034
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.029912916
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.030539355
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 1.34118E-05
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 1.34118E-05
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 0.662023791
    • Water Use M3 Eq Manufacturing A1 A3 : 0.206527581
    • Water Use M3 Eq Distribution A4 : 0.003307968
    • Water Use M3 Eq Installation A5 : 0.000516625
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0.405109858
    • Water Use M3 Eq End Of Life C1 C4 : 0.046561758
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.071313783
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=395923140&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 10.61506555
    • Circularity Profile : ENVEOLI2208012EN
    • Environmental Disclosure : ENVPEP2208012EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 11/27/2023
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : China
  • Overview Attributes
    • Device Presentation : complete product
