Schneider Electric at Mayer

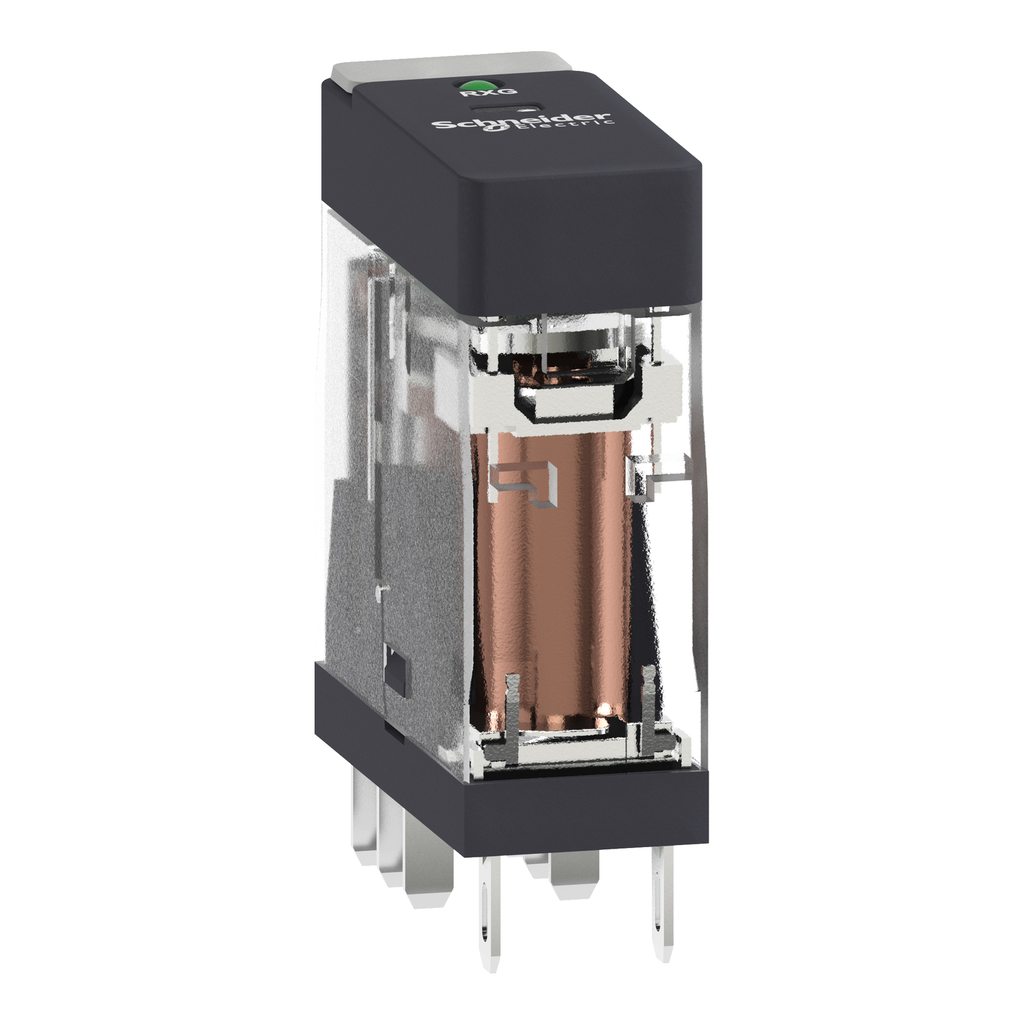

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 230V AC

RELAY 2CO 5A@250VAC 230VAC COI

SQDRXG23P7 RXG23P7 3606480689253
14.86 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, DNV-GL, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.02 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Power Consumption: 0.82 VA, 60 Hz
  • Resistance: 15 %, 23500 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Specifications
This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406006EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : CSA || CE || UL || EAC || DNV-GL
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Relative Humidity : 10-85 %
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP40
  • Complementary
    • Utilisation Coefficient : 20 %
    • Maximum Switching Capacity : 1250 VA
    • Safety Reliability Data : B10d = 100000
    • [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
    • Average Consumption : 0.82 VA 60 Hz
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Torque Value : 0.8 N.m
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Pollution Degree : 2
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
    • Status Led : with
    • Net Weight : 0.02 kg
    • Colour Of Cover : standard
    • Maximum Switching Voltage : 250 V AC || 30 V DC
    • Device Presentation : complete product
    • [Ie] Rated Operational Current : 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Electrical Durability : 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
    • Mechanical Durability : 10000000 cycles
    • Resistance : 23500 Ohm +/- 15 %
    • Control Circuit Voltage Limits : 0.8...1.1 Uc AC
    • Mounting Position : any position
    • Overvoltage Category : III
    • Load Current : 5 A 250 V AC
    • Drop-Out Voltage Threshold : >= 0.3 Uc AC
    • Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
  • Specifications
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : plug-in relay
    • Series Name : interface relay
    • Contacts Type And Composition : 2 C/O
    • Local Signalling : flag
    • Device Short Name : RXG
    • [Ithe] Conventional Enclosed Thermal Current : 5 A -40-55 °C
