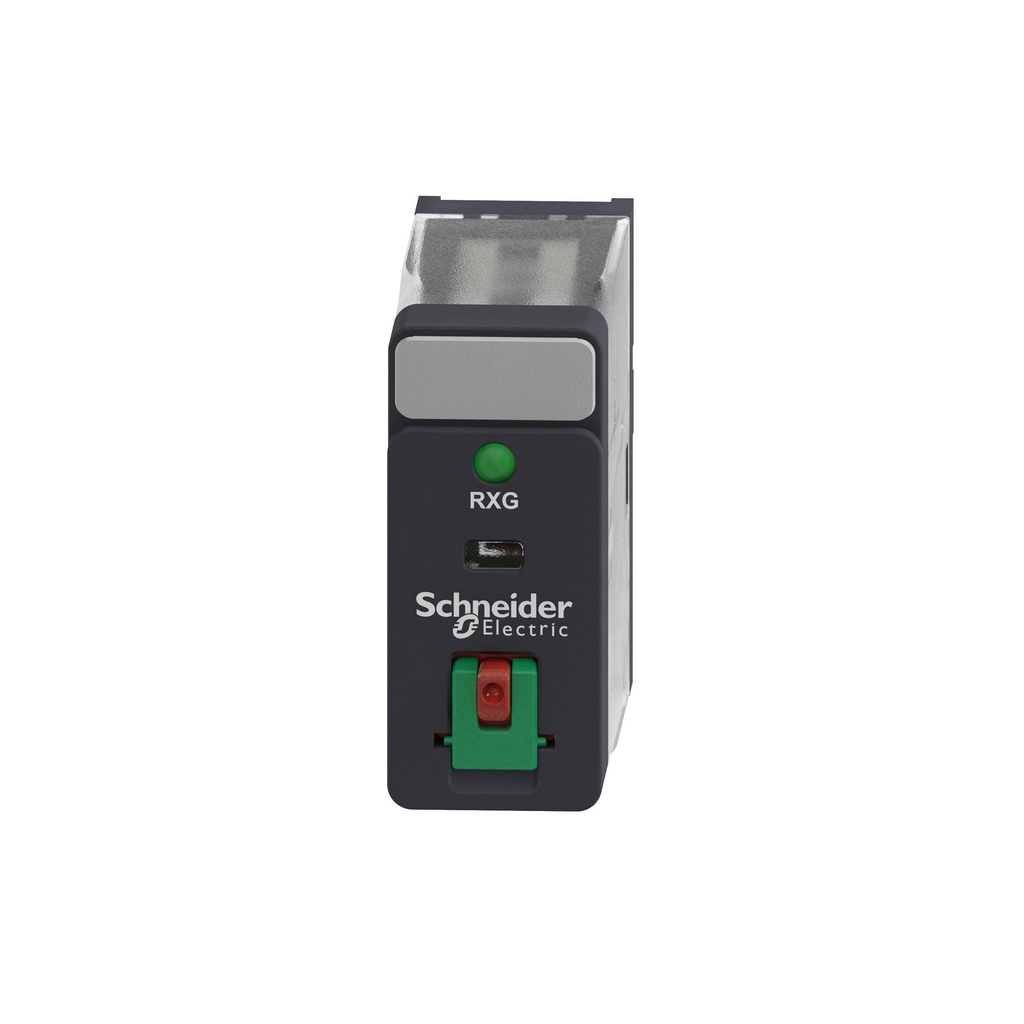

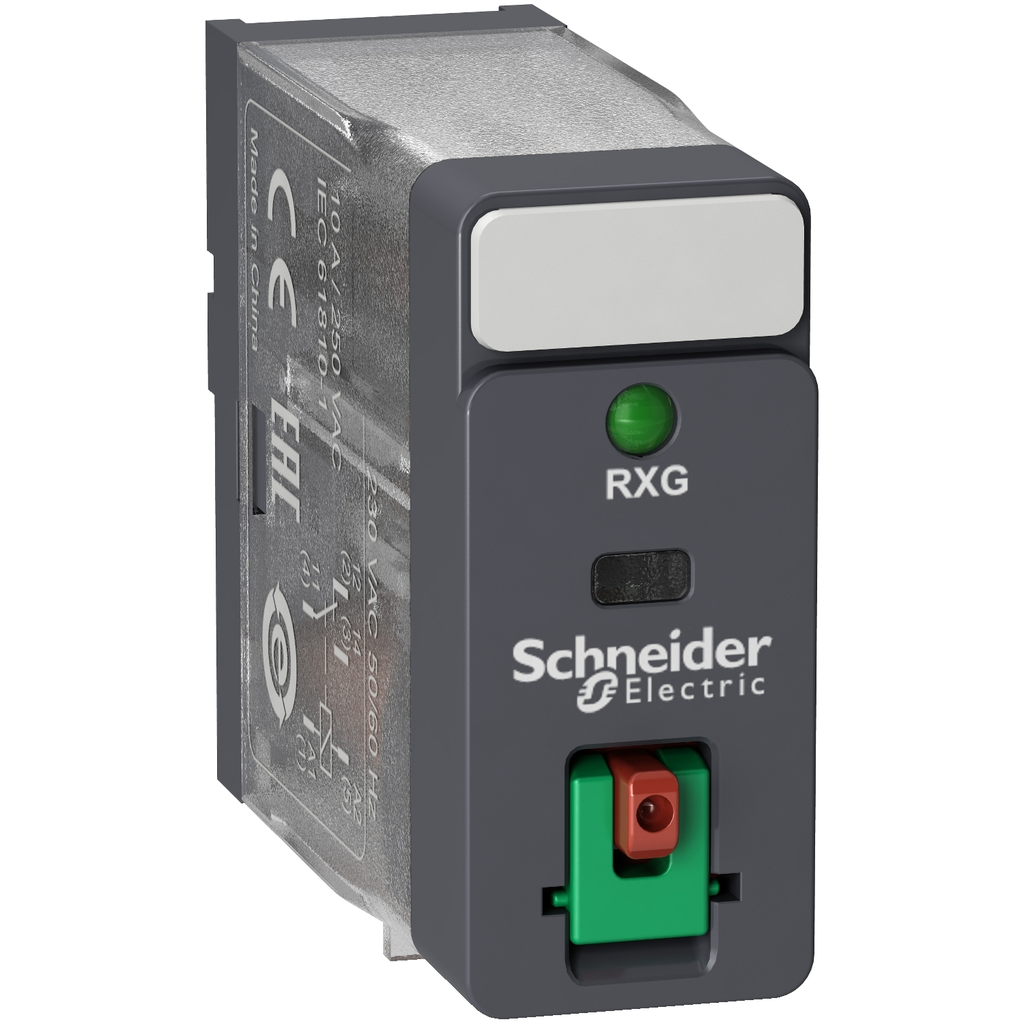

"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Control Circuit Type : AC
• Line Rated Current : 10 A
• Maximum Switching Capacity : 2500 VA
• Maximum Switching Voltage : 250 V AC30 V DC
• Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
• Rated Current : 10 A
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 1300 V AC terminals and case with basic insulation
• Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
• Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Contacts Composition : 1 C/O
• Certificate Agency : CSA, EAC, UL, CE, DNV
• [Ie] Rated Operational Current : 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL
• [Uc] Control Circuit Voltage : AC, 230 V
• [Ui] Rated Insulation Voltage : 250 V IEC300 V CSA, 300 V UL
• Drop-out Voltage Threshold : >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
• Carbon Footprint Of The Distribution Phase [A4] : 0.06551564855924241, 0.1 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.06466599441775461, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq., 0.0007132401944399417
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.2 kg CO2 eq., 0.1841355813711413
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : 14 kg CO2 eq., 13.873487171287282
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Service Catalog Item : Finished good
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Resistance : 23500 Ohm at 23 °C +/- 15 %
• Contact Resistance : 100 mOhm
• Contacts Material : silver alloy (AgSnO2In2O3)
• Contacts Type And Composition : 1 C/O
• Control Type : lockable test button
• Electrical Insulation Class : class F
• Insulation Resistance : 1000 MOhm at 500 V DC
• Load Current : 10 A 250 V AC
• Local Signalling : flag
• Mechanical Durability : 10000000 cycles
• Operating Time : 20 ms
• Overvoltage Category : III
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : interface relay
• Reset Time : 20 ms
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Series Name : RXG series
• Shape Of Pin : flat (faston type)
• Software Version : v6.1
• Status Led : with
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation5 gn +/- 0.75 mm 10-150 Hz)not in operation
• Control Circuit Voltage : 230 V
• Pep Code : ENVPEP1406006EN
• Database Version : 2023-02
• Pep Verification Date : 2023-11-27
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Harmony RXG relays are interface plug-in relays with faston pins for better reliability and robust installation. This relays offer a broad range of coil voltages from 6 V to 110 Va and 24 V to 230 Va. The RXG interface relay range comprises 10 A relays with 1 CO contact and 5 A relays with 2 CO contacts and it also offers sockets with separate or mixed contact terminals, built-in plastic maintaining clamp. Product is adhering to IEC 61810-1 & UL 508 standards.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Model - Manufacturing [A1-a3] : China, CN
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
• Recyclability Potential In % : 70
• [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
• [Uimp] Rated Impulse Withstand Voltage : 1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 18.000 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8536490055
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 14.18851763582986
• Environmental Disclosure : ENVPEP1406006EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP40
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-85 %
• Pep Code : ENVPEP1406006EN
• Pep Verification Date : 2023-11-27
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, China, France
• Overview Attributes
• Device Presentation : complete product
• Presentation Of Legend : with
