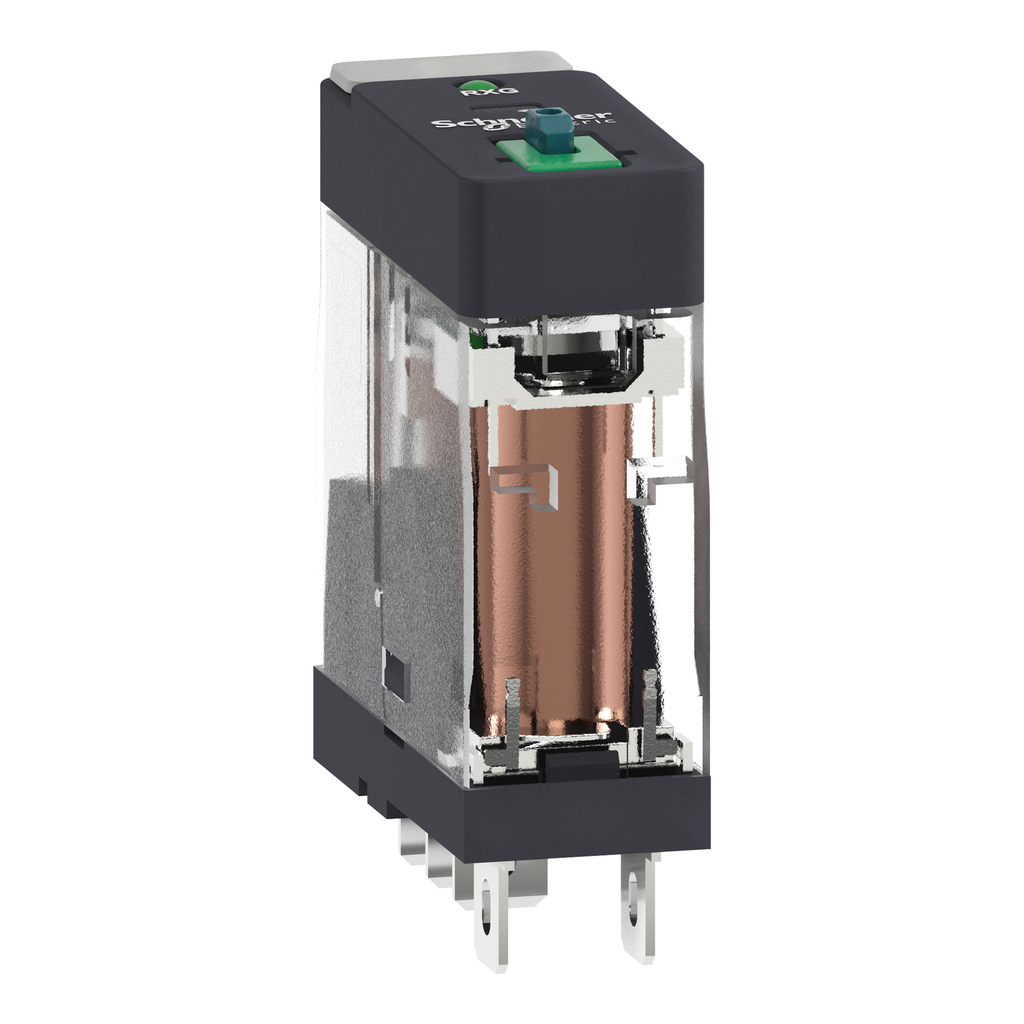

Harmony, Interface plug-in relay, 10 A, 1 CO, with LED, with lockable test button, 12 V DC

RELAY 1CO 10A@250VAC 12VDC COI

SQDRXG12JD RXG12JD 785901949886
9.11 / EA
  • Certifications: CE, CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.02 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Resistance: 270 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
This Zelio RXG plug-in relay socket has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button and LED indicator. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere thanks to its 16mm width. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RXG plug-in relay socket has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button and LED indicator. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere thanks to its 16mm width. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Or Component Type : plug-in relay
  • Contacts Type And Composition : 1 C/O
  • Device Short Name : RXG
  • Series Name : interface relay
  • Range Of Product : Harmony Electromechanical Relays
  • Complementary
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV 1.2/50 µs
    • Torque Value : 0.8 N.m
    • Control Type : lockable test button
    • Status Led : with
    • Maximum Switching Capacity : 2500 VA
    • Electrical Durability : 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
    • Operating Time : 20 ms
    • Mounting Position : any position
    • Colour Of Cover : standard
    • Mechanical Durability : 10000000 cycles
    • Net Weight : 0.02 kg
    • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Drop-Out Voltage Threshold : >= 0.1 Uc DC
    • Test Levels : level A
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • Load Current : 10 A 250 V AC
    • Resistance : 270 Ohm +/- 10 %
    • Safety Reliability Data : B10d = 100000
    • Electrical Insulation Class : class F
    • Maximum Switching Voltage : 250 V AC || 30 V DC
    • [Uc] Control Circuit Voltage : 12 V DC
    • Device Presentation : complete product
    • Contact Resistance : 100 mOhm
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Reset Time : 20 ms
    • Utilisation Coefficient : 20 %
    • Local Signalling : flag
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1406006EN
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Overvoltage Category : III
    • Standards : UL 508 || CSA C22.2 No 14 || IEC 61810-1
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP40
    • Product Certifications : EAC || CE || CSA || UL
    • Relative Humidity : 10-85 %
    • Protection Category : RT I
    • Pollution Degree : 2
