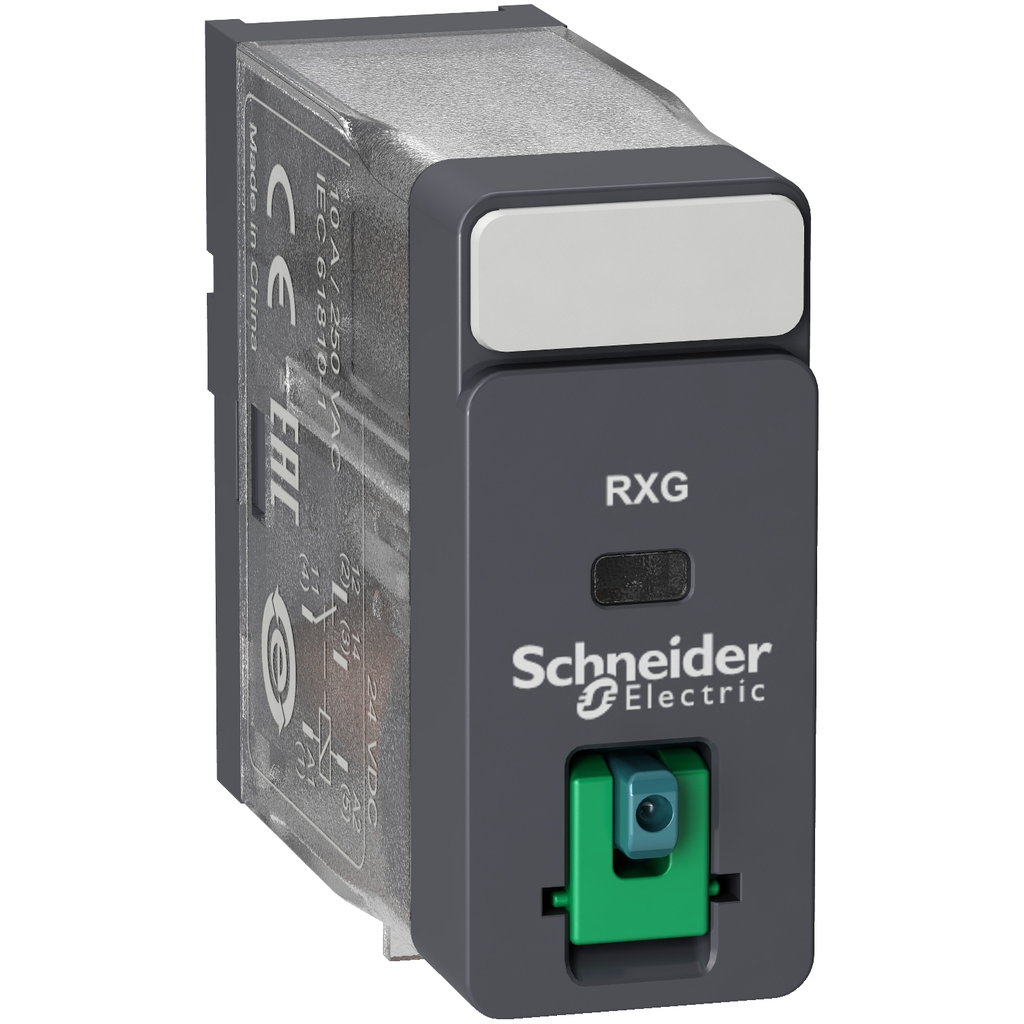

Harmony, Interface plug-in relay, 10 A, 1 CO, with lockable test button, 24 V DC

Harmony, Interface plug-in relay, 10 A, 1 CO, with lockable test button, 24 V DC

SQDRXG11BD RXG11BD 785901949718
5.55 / EA
  • Certifications: CE, CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.02 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Resistance: 1100 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
This Zelio RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere thanks to its 16mm width. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
  • Product Description
  • Specifications
This Zelio RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere thanks to its 16mm width. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1406006EN
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Maximum Switching Capacity : 2500 VA
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • Utilisation Coefficient : 20 %
    • Torque Value : 0.8 N.m
    • Resistance : 1100 Ohm +/- 10 %
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Colour Of Cover : standard
    • Drop-Out Voltage Threshold : >= 0.1 Uc DC
    • Control Type : lockable test button
    • Net Weight : 0.02 kg
    • Mechanical Durability : 10000000 cycles
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
    • Operating Time : 20 ms
    • Local Signalling : flag
    • Load Current : 10 A 250 V AC
    • Device Presentation : complete product
    • [Uc] Control Circuit Voltage : 24 V DC
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV 1.2/50 µs
    • Safety Reliability Data : B10d = 100000
    • Status Led : without
    • Electrical Insulation Class : class F
    • Mounting Position : any position
    • Maximum Switching Voltage : 250 V AC || 30 V DC
    • Test Levels : level A
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Reset Time : 20 ms
    • Contact Resistance : 100 mOhm
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Electrical Durability : 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
    • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
  • Environment
    • Standards : CSA C22.2 No 14 || IEC 61810-1 || UL 508
    • Protection Category : RT I
    • Pollution Degree : 2
    • Overvoltage Category : III
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Product Certifications : EAC || UL || CSA || CE
    • Ip Degree Of Protection : IP40
    • Relative Humidity : 10-85 %
    • Ambient Air Temperature For Storage : -40-85 °C
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
  • Product Or Component Type : plug-in relay
  • Range Of Product : Harmony Electromechanical Relays
  • Contacts Type And Composition : 1 C/O
  • Device Short Name : RXG
  • Series Name : interface relay
