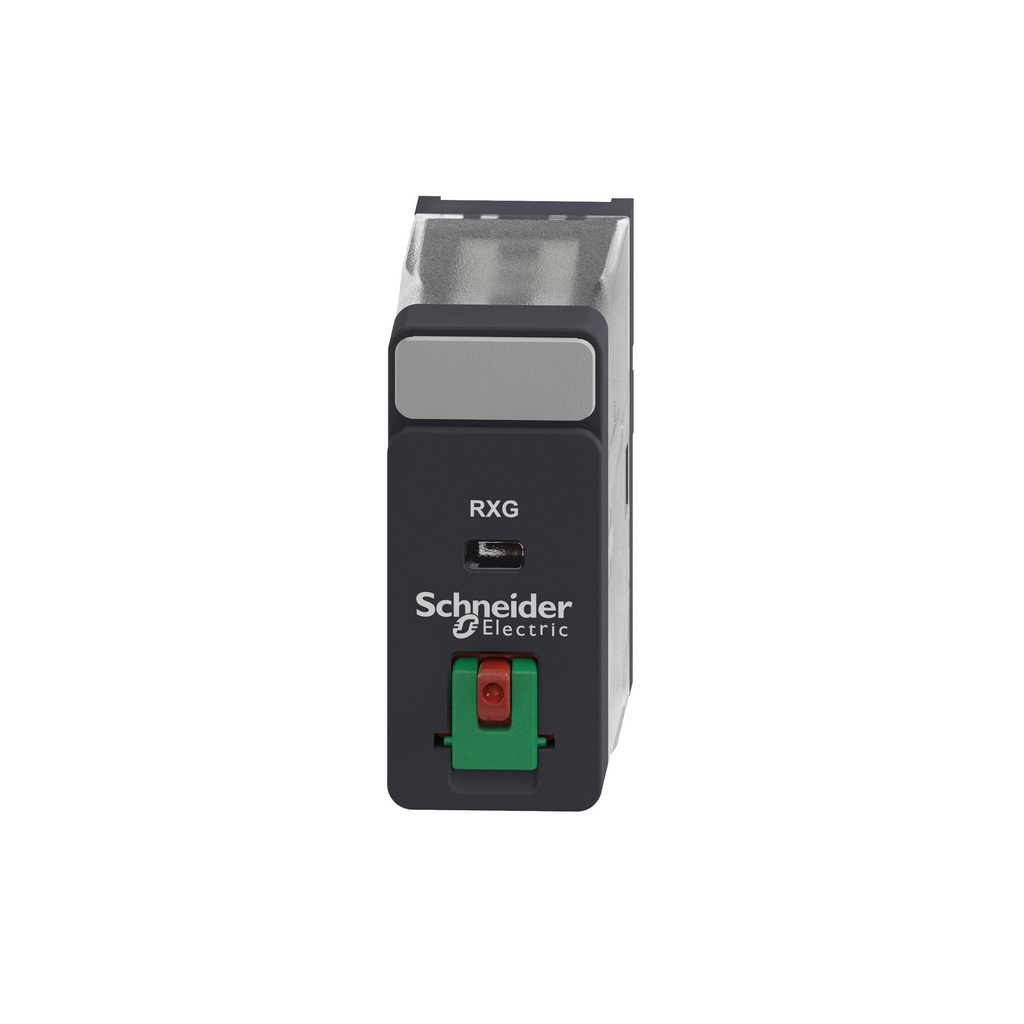

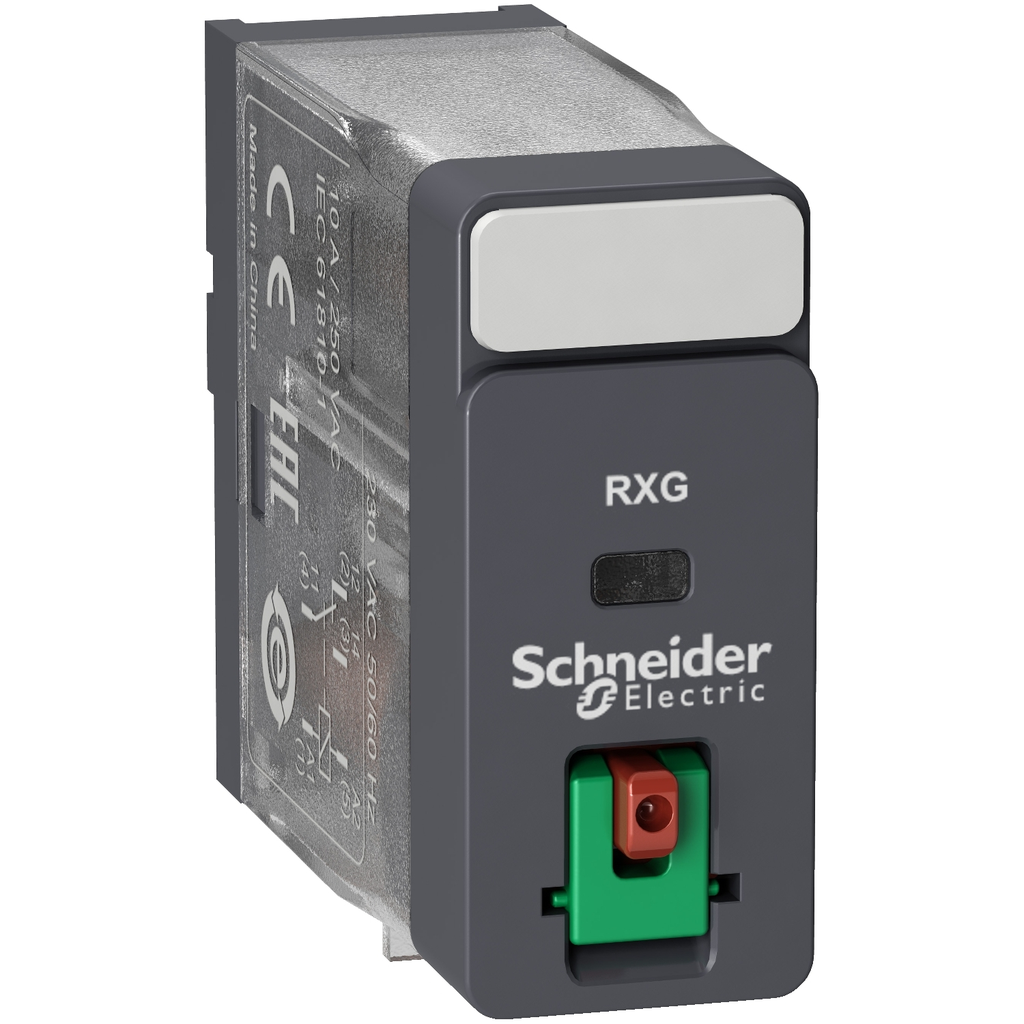

This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. "It has large choice of number of contacts for high rated current use." "It also offers lockable

• Uc Control Circuit Voltage
• 24 V AC
• Insulation Resistance
• 1000 MOhm at 500 V DC
• Test Levels
• level A group mounting
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.0001447434
• 0 kg CO2 eq.
• Load Current
• 10 A 250 V AC
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.003249776
• Standards
• CSA C22.2 No 14
• UL 508
• IEC 61810-1
• Ui Rated Insulation Voltage
• 250 V IEC
• 300 V CSA
• 300 V UL
• Maximum Switching Voltage
• 250 V AC
• 30 V DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1613017521
• Accessories
• RGZE1S35M
• RGZE05P
• Vibration Resistance
• 3 gn +/- 0.75 mm 10-150 Hz)in operation
• 5 gn +/- 0.75 mm 10-150 Hz)not in operation
• 5 gn +
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Drop Out Voltage Threshold
• >= 0.3 Uc AC
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 8 kg CO2 eq.
• 7.9658792157
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Dielectric Strength
• 1000 V AC between contacts with micro disconnection
• 5000 V AC between coil and contact with reinfo
• Carbon Footprint Of The Distribution Phase A4
• 0.0028513856
• 0 kg CO2 eq.
• Minimum Switching Capacity
• 500 mW at 100 mA, 5 V DC
• Ithe Conventional Enclosed Thermal Current
• 10 A -40-55 °C
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operating Rate
• <= 1800 cycles/hour under load
• <= 18000 cycles/hour no-load
• Product Certifications
• CE
• UL
• EAC
• CSA
• DNV-GL

• Complementary Attributes
• Control Circuit Type : AC
• Line Rated Current : 10 A
• Maximum Switching Capacity : 2500 VA
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-04-03
• ETIM 10 : EC001437
• Manufacturing Carbon Footprint : 0.1613017521
• Distribution Carbon Footprint : 0.0028513856
• Installation Carbon Footprint : 0.0001447434
• Use Carbon Footprint : 7.9658792157
• End Of Life Carbon Footprint : 0.003249776
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2208012EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Contact Resistance : 100 mOhm
• Contacts Material : silver alloy (AgSnO2In2O3)
• Contacts Type And Composition : 1 C/O
• Control Type : lockable test button
• Electrical Insulation Class : class F
• Local Signalling : flag
• Mechanical Durability : 10000000 cycles
• Operating Time : 20 ms
• Overvoltage Category : III
• Package Weight Lbs : 20.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : interface relay
• Reset Time : 20 ms
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Series Name : RXG series
• Shape Of Pin : flat (faston type)
• Status Led : without
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 8.1334268728
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=395923074&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 8.1334268728
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2208012EN
• Environmental Disclosure : ENVPEP2208012EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP40
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-85 %
• Specifications
• Country of Origin : China
• Overview Attributes
• Device Presentation : complete product
• Presentation Of Legend : with
