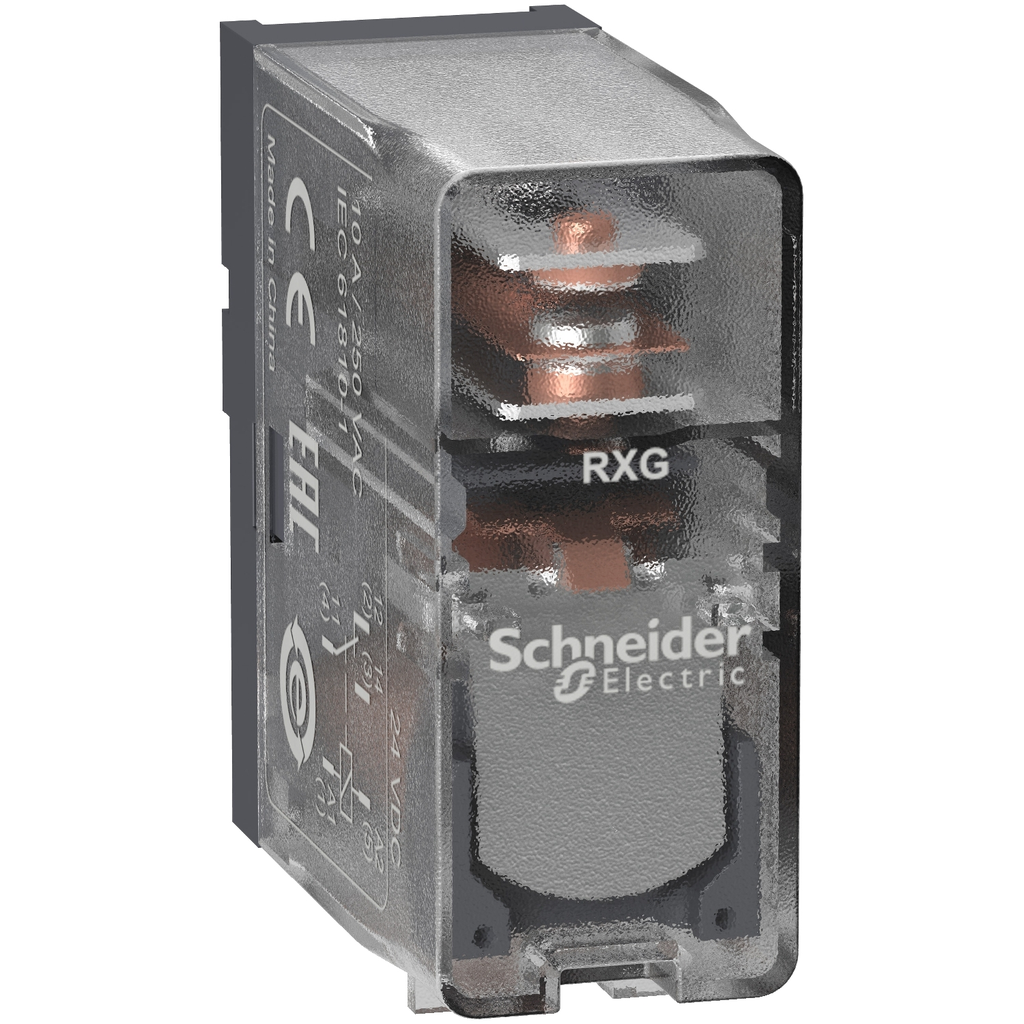

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Switching Voltage : 250 V AC, 250 V AC, 30 V DC, 30 V DC
• Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC, 500 mW at 100 mA, 5 V DC, 500 mW at 100 mA, 5 V DC, 500 mW at 100 mA, 5 V DC
• IE Rated Operational Current : 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC
• UC Control Circuit Voltage : 230 V DC, 230 V DC
• UI Rated Insulation Voltage : 250 V IEC, 250 V IEC, 300 V CSA, 300 V CSA, 300 V UL, 300 V UL
• UIMP Rated Impulse Withstand Voltage : 1200 V AC between contacts with micro disconnection, 1200 V AC between contacts with micro disconnection, 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 1500 V between terminals and case with basic insulation
• Maximum Switching Capacity : 2500 VA
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Average Resistance : 1100 Ohm at 23 °C +/- 10 %, 1100 Ohm at 23 °C +/- 10 %, 1100 Ohm at 23 °C +/- 10 %
• Dielectric Strength : 1000 V AC between contacts with micro disconnection, 1000 V AC between contacts with micro disconnection, 1000 V AC between contacts with micro disconnection, 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 5000 V AC between coil and contact with reinforced insulation, 5000 V AC between coil and contact with reinforced insulation, 5000 V AC between coil and contact with reinforced insulation
• Drop Out Voltage Threshold : >= 0.1 Uc DC, >= 0.1 Uc DC
• Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NO resistive at 55 °C, 100000 cycles NO resistive at 55 °C, 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C, 100000 cycles NC resistive at 55 °C, 100000 cycles NC resistive at 55 °C, 100000 cycles NC resistive at 55 °C
• Insulation Resistance : 1000 MOhm at 500 V DC, 1000 MOhm at 500 V DC, 1000 MOhm at 500 V DC
• Load Current : 10 A 250 V AC, 10 A 250 V AC, 10 A 250 V AC
• Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Test Levels : level A group mounting, level A group mounting
• Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation, 3 gn +/- 0.75 mm 10-150 Hz)in operation, 3 gn +/- 0.75 mm 10-150 Hz)in operation, 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
• IE Rated Operational Current : 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC
• ITHE Conventional Enclosed Thermal Current : 10 A -40-55 °C, 10 A -40-55 °C
• Carbon Footprint Of The Distribution Phase A4 : 0.029158966, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.033233003, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0014801815
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.6495111303
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 kg CO2 eq., 5.3907027451
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-02
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2208012EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 19.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Series Name : RXG series
• Shape Of Pin : flat (faston type)
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2208012EN
• Pep Verification Date : 2018-09-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 7.1040860259
• Circularity Profile : ENVEOLI2208012EN
• Environmental Disclosure : ENVPEP2208012EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2208012EN
• Pep Verification Date : 2018-09-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Overview Attributes
• Device Presentation : complete product
