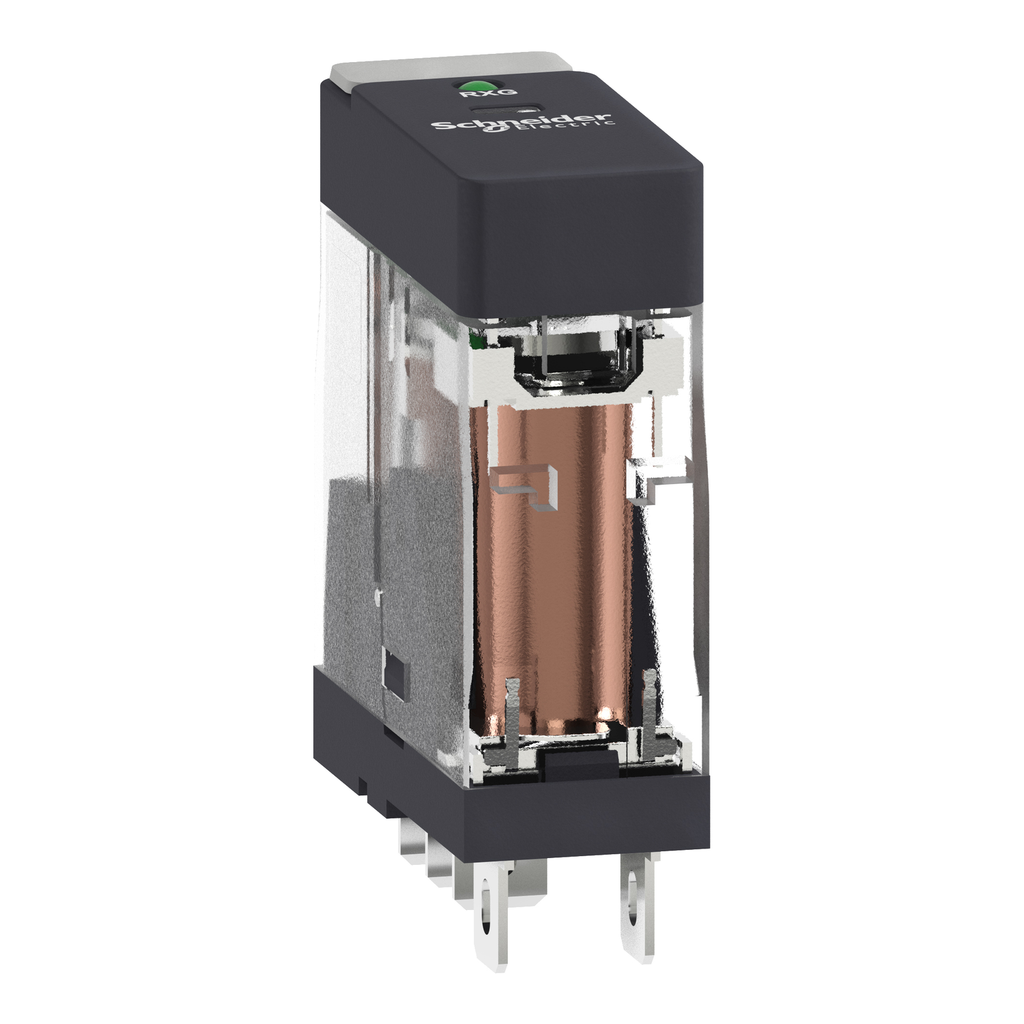

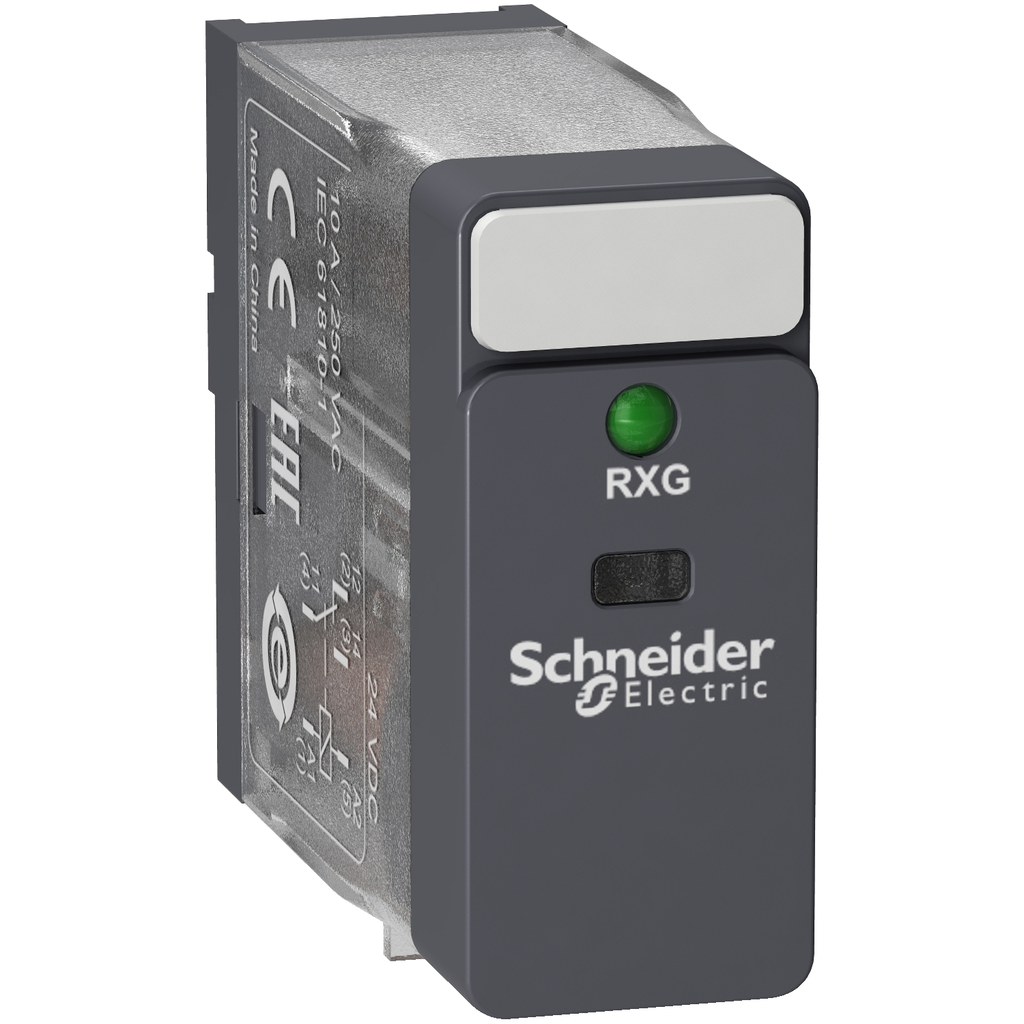

Harmony, Interface plug-in relay, 10 A, 1 CO, with LED, 24 V DC

Harmony, Interface plug-in relay, 10 A, 1 CO, with LED, 24 V DC

SQDRXG13BD RXG13BD 785901956327
8.95 / EA
  • Certifications: CE, CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.02 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Resistance: 1100 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
This Zelio RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers LED indicator. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers LED indicator. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Contacts Type And Composition : 1 C/O
  • Device Short Name : RXG
  • Product Or Component Type : plug-in relay
  • Range Of Product : Harmony Electromechanical Relays
  • Series Name : interface relay
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1406006EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Operating Time : 20 ms
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
    • Drop-Out Voltage Threshold : >= 0.1 Uc DC
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV 1.2/50 µs
    • Torque Value : 0.8 N.m
    • Device Presentation : complete product
    • Mounting Position : any position
    • Mechanical Durability : 10000000 cycles
    • Safety Reliability Data : B10d = 100000
    • Net Weight : 0.02 kg
    • Local Signalling : flag
    • Contact Resistance : 100 mOhm
    • Resistance : 1100 Ohm +/- 10 %
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
    • Electrical Durability : 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
    • Colour Of Cover : standard
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Status Led : with
    • Utilisation Coefficient : 20 %
    • [Uc] Control Circuit Voltage : 24 V DC
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
    • Electrical Insulation Class : class F
    • Test Levels : level A
    • Reset Time : 20 ms
    • Load Current : 10 A 250 V AC
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Maximum Switching Capacity : 2500 VA
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • Maximum Switching Voltage : 250 V AC || 30 V DC
  • Environment
    • Ip Degree Of Protection : IP40
    • Product Certifications : CE || UL || CSA || EAC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Pollution Degree : 2
    • Protection Category : RT I
    • Ambient Air Temperature For Storage : -40-85 °C
    • Overvoltage Category : III
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Standards : CSA C22.2 No 14 || IEC 61810-1 || UL 508
    • Relative Humidity : 10-85 %
