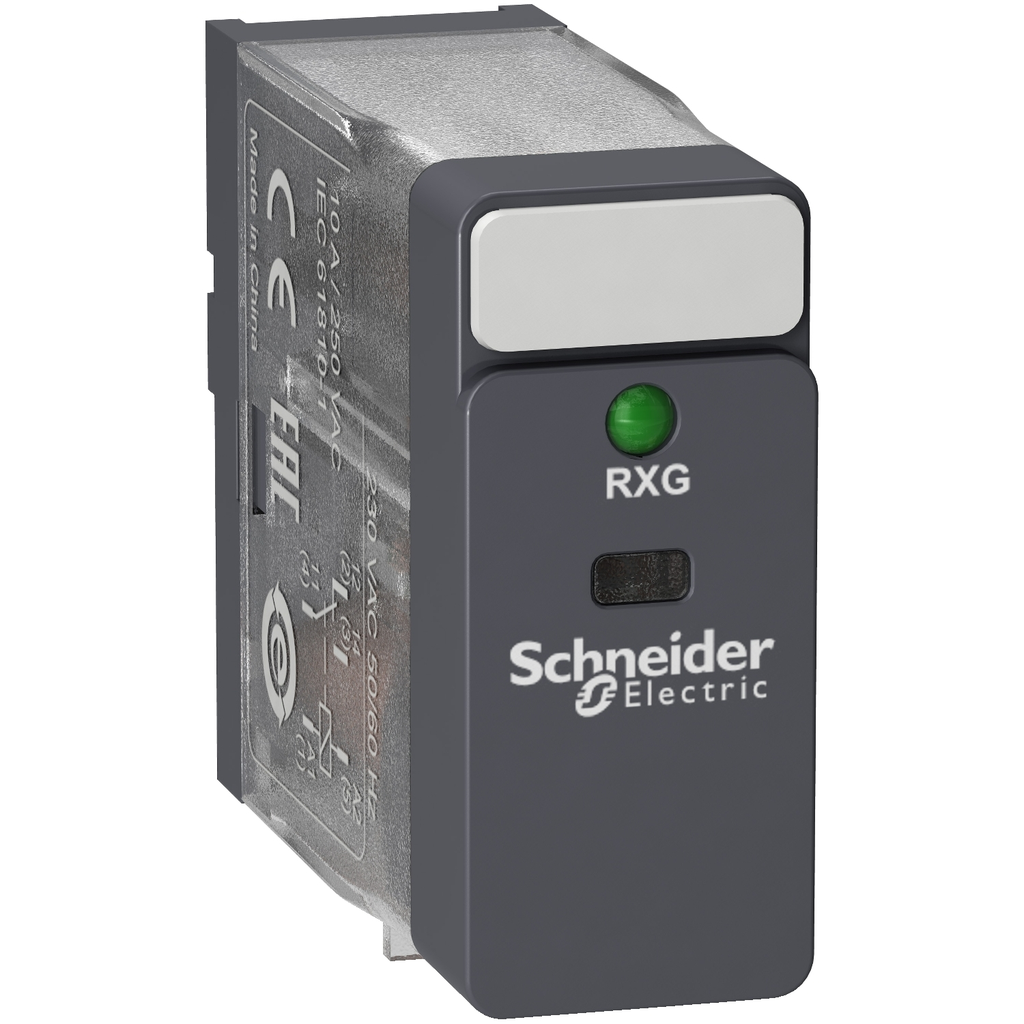

Harmony, Interface plug-in relay, 10 A, 1 CO, with LED, 120 V AC

RELAY 1CO 10A@250VAC 120V

SQDRXG13F7 RXG13F7 785901956334
10.65 / EA
  • Certifications: CE, CSA, DNV-GL, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.02 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Power Consumption: 0.82 VA, 60 Hz
  • Resistance: 6300 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This Zelio RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers LED indicator. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers LED indicator. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Complementary
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
    • Average Consumption : 0.82 VA 60 Hz
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Local Signalling : flag
    • Resistance : 6300 Ohm +/- 10 %
    • Mechanical Durability : 10000000 cycles
    • Utilisation Coefficient : 20 %
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
    • Maximum Switching Capacity : 2500 VA
    • Safety Reliability Data : B10d = 100000
    • Drop-Out Voltage Threshold : >= 0.3 Uc AC
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Mounting Position : any position
    • Control Circuit Voltage Limits : 0.8...1.1 Uc AC
    • Status Led : with
    • Device Presentation : complete product
    • Test Levels : level A
    • Colour Of Cover : standard
    • Electrical Durability : 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
    • Reset Time : 20 ms
    • Contact Resistance : 100 mOhm
    • Maximum Switching Voltage : 250 V AC || 30 V DC
    • Operating Time : 20 ms
    • Load Current : 10 A 250 V AC
    • Electrical Insulation Class : class F
    • [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Torque Value : 0.8 N.m
    • Net Weight : 0.02 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV 1.2/50 µs
    • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
  • Environment
    • Product Certifications : CE || CSA || EAC || UL || DNV-GL
    • Relative Humidity : 10-85 %
    • Standards : UL 508 || IEC 61810-1 || CSA C22.2 No 14
    • Overvoltage Category : III
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP40
    • Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
    • Protection Category : RT I
    • Pollution Degree : 2
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Ambient Air Temperature For Storage : -40-85 °C
  • Range Of Product : Harmony Electromechanical Relays
  • Product Or Component Type : plug-in relay
  • Series Name : interface relay
  • Contacts Type And Composition : 1 C/O
  • Device Short Name : RXG
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1406006EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
