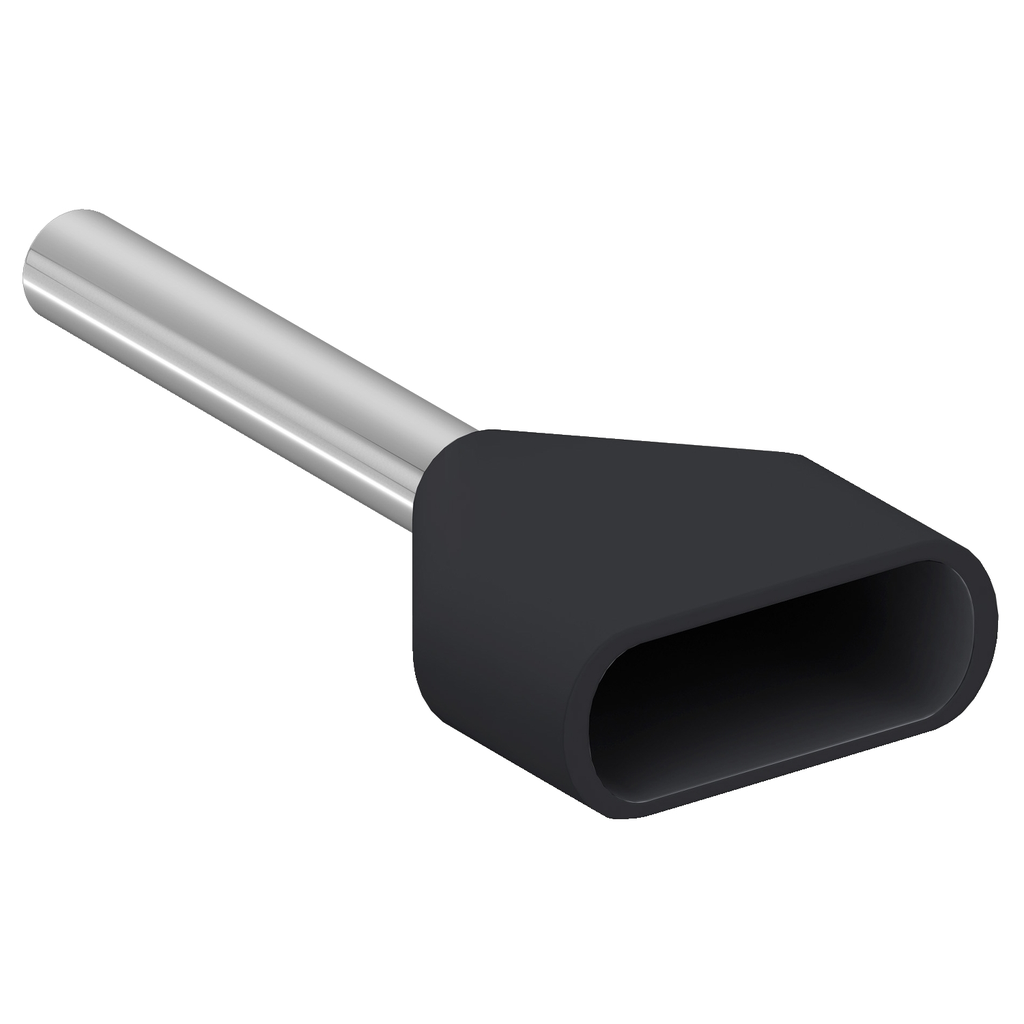

Cable end, Linergy TR cable ends, twin conductor, black, 1.5mm², for insulated cable, medium size, 5 sets of 50

TWIN CABLE END/SOLD IN LOTS OF

SQDAZ5DE015 AZ5DE015 3389110515855
0.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable end, Linergy TR cable ends, twin conductor, black, 1.5mm², for insulated cable, medium size, 5 sets of 50-1
  • Bezel Material: Halogen-Free Plastic
  • Certifications: CCSAus
  • End Type: Twin Conductor
  • Length: 15 mm
  • Net Weight: 0.155 kg
  • Standard: NF C 63-023
  • Warranty Length: 18 mth
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 1.5 mm² cable cross section. It has black surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified It is compliant with Green Premium (RoHS/REACH).
QTY
  • Product Description
  • Specifications
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 1.5 mm² cable cross section. It has black surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified It is compliant with Green Premium (RoHS/REACH).
  • Environment
    • Product Certifications : cCSAus
    • Ambient Air Temperature For Operation : -20-105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1304013EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Tube Length : 8 mm
    • Bezel Size : Ø 3.6 x 6.6 mm
    • Number Of Cables : 2
    • Cable End Type : twin conductor
    • Length : 15 mm
    • Net Weight : 0.155 kg
    • Color : Black
    • Awg Gauge : AWG 16
    • Bezel Material : halogen-free plastic
    • Tube Material : Copper ISO 1337
    • Additional Information : without marker tag holder
    • Tube Diameter : 2.5 mm
  • Specifications
    • Range Of Product : Linergy
    • Standards : NF C 63-023
    • Product Or Component Type : cable end
    • Type Of Packing : dispenser pack
    • Cable Cross Section : 1.5-1.5 mm²
    • Cable End Size : medium
    • Quantity Per Set : 5 sets of 100
