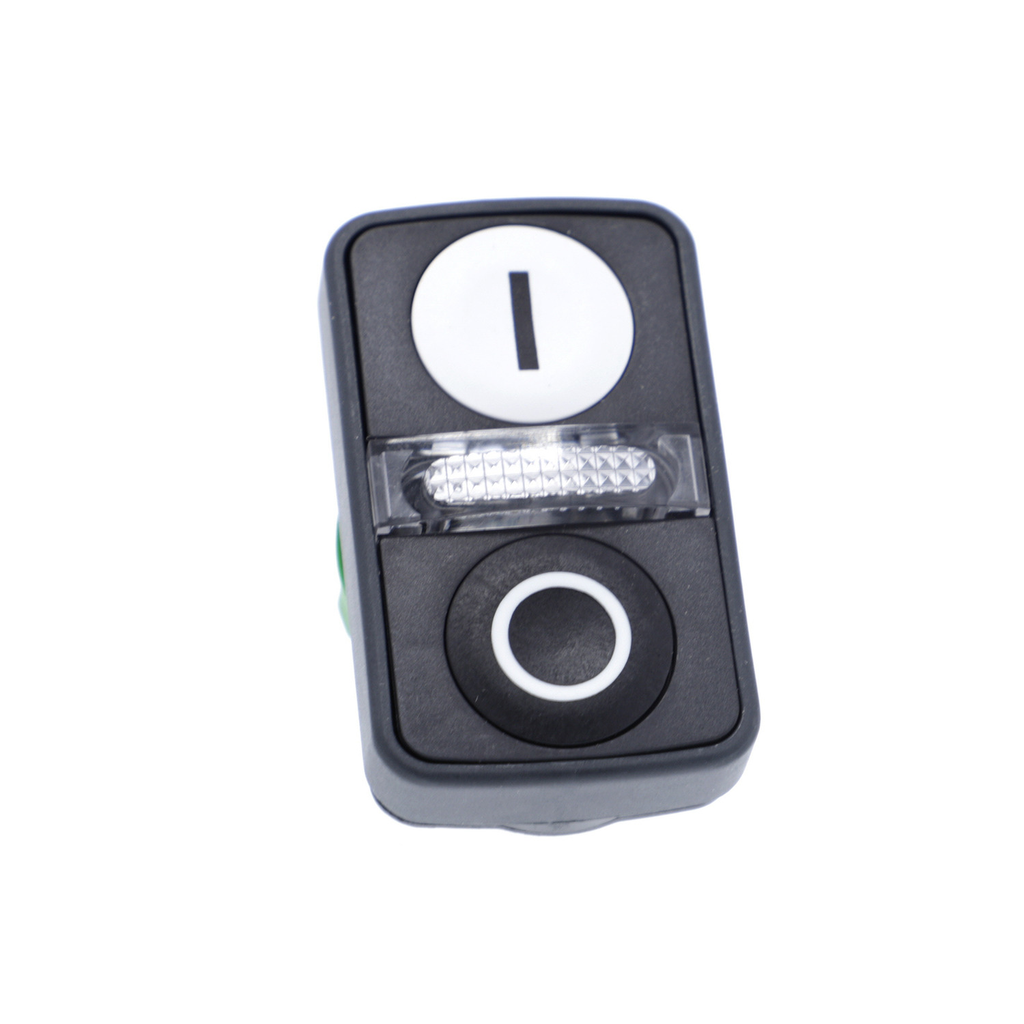

This Harmony XB5, double head has 1 white, 1 black button and 1 central white pilot light, operates with a spring return mechanism, with. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environment
- Product Certifications : BV || DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed
- Ik Degree Of Protection : IK05 conforming to IEC 50102
- Ambient Air Temperature For Operation : -25-70 °C
- Standards : EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Electrical Shock Protection Class : class II IEC 60536
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Colour Of Marking : black marking when white caps
- Net Weight : 0.023 kg
- Cad Overall Height : 50 mm
- Device Presentation : basic sub-assemblies
- Operator Profile : white flush, I black) || black flush, O white)
- Mechanical Durability : 1000000 cycles
- Station Name : XALD 1 cut-out
- Cad Overall Width : 30 mm
- Cad Overall Depth : 30 mm
- Specifications
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Operators Description : white ''I'' - black ''O''
- Product Or Component Type : head for illuminated double-headed push-button
- Shape Of Signaling Unit Head : rectangular
- Operator Profile : 2 flush push-buttons - 1 central pilot light
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Product Compatibility : integral LED
- Device Short Name : ZB5
