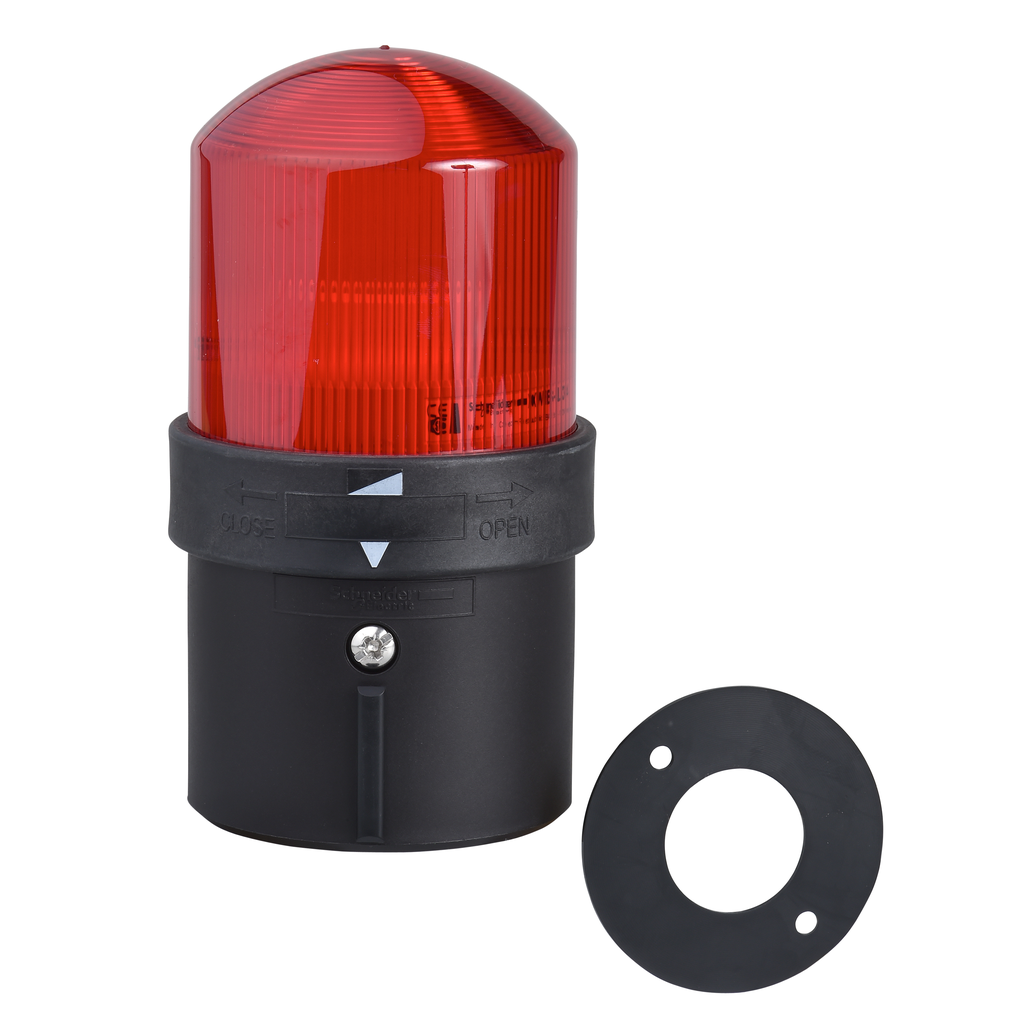

Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V

INDICATING BEACON 250V 10W +OP

SQDXVBL34 3389110844139
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V-2
  • Certifications: CCC, CSA C22-2 No 14, EAC, UL 508
  • Material: Polyamide, Polycarbonate
  • Net Weight: 0.26 kg
  • Standard: IEC 60947-5-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : CCC || EAC || CSA C22-2 No 14 || UL 508
    • Ambient Air Temperature For Operation : -25-50 °C LED || -25-70 °C incandescent
    • Standards : IEC 60947-5-1
    • Pollution Degree : 2
    • Ip Degree Of Protection : IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : Type 4X UL indoor)
    • Electrical Shock Protection Class : class I on support tube IEC 61140 || class II on base unit IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP070907EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Terminals Description Iso N°1 : (COM-1)PW || (GND)GROUND
    • Net Weight : 0.26 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Cad Overall Height : 139 mm
    • Connections - Terminals : screw clamp terminals, <= 1 x 1.5 mm² with cable end
    • [Ui] Rated Insulation Voltage : 250 V IEC 60947-1
    • Nominal Voltage Limit : 0.85...1.1 Un IEC 60947-5-1
    • Cad Overall Width : 70 mm
    • Cad Overall Depth : 70 mm
  • Specifications
    • Beacon Or Indicator Bank Unit Type : base unit direct or tube fixing || illuminated unit
    • Range Of Product : Harmony XVB Universal
    • Mounting Diameter : 70 mm
    • Light Source : bulb not included, red
    • Product Or Component Type : complete beacon
    • Component Name : XVBL
    • Maximum Power Dissipation In W : 7 W
    • Signalling Type : steady
    • Bulb Type : incandescent BA 15d || protected LED
    • Material : glass reinforced polyamide: base unit || polycarbonate: illuminated unit
    • [Us] Rated Supply Voltage : <= 250 V
