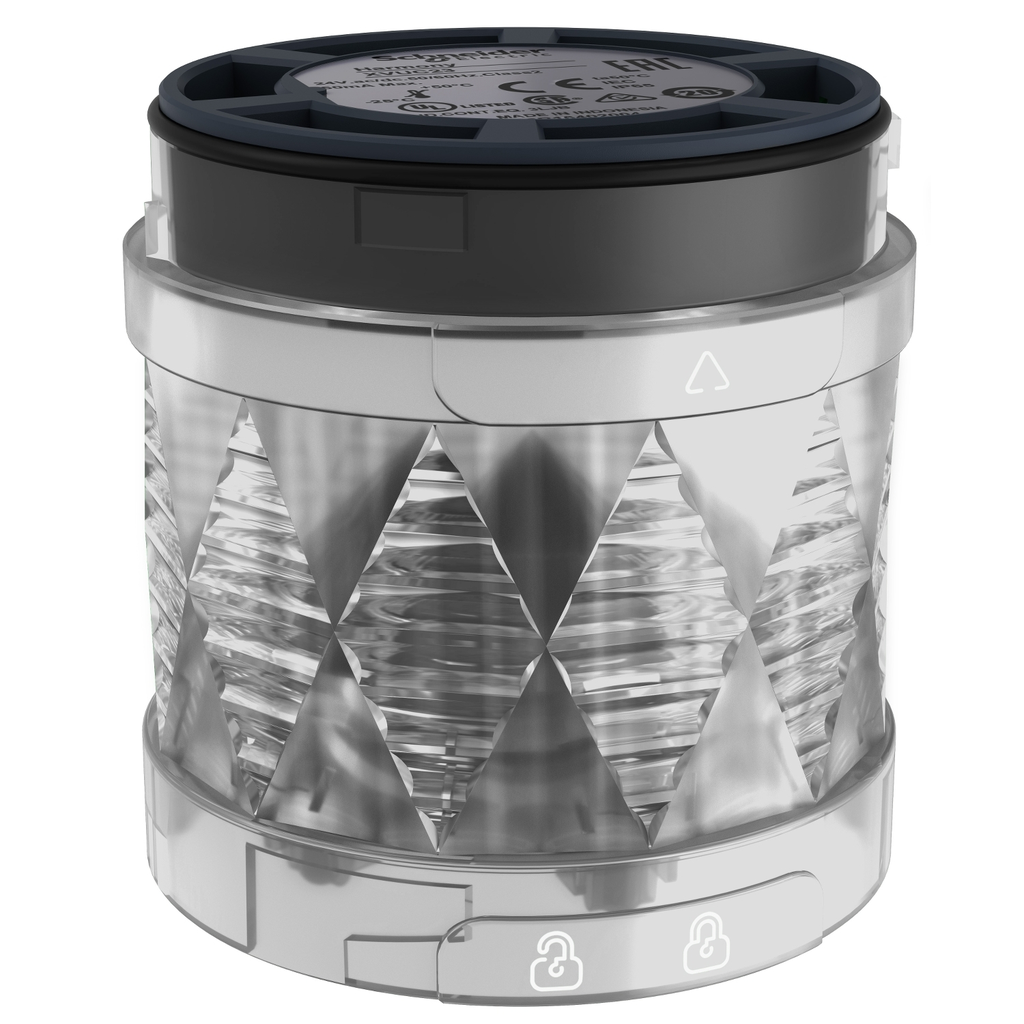

This multi-color illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Assembly Style : up to 4 units with buzzer, customer assembly, up to 5 units
• Material : PC (polycarbonate) V-2 UL 94, PC (polycarbonate) V-0 UL 94
• Signalling Type : steady, rotating, flashing, blinking, steady/blinking/flashing/rotating
• Carbon Footprint Of The Distribution Phase A4 : 0.00836886573396554, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.05577412242190091
• Carbon Footprint Of The Installation Phase A5 : 0.0661929013249039, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.4206599153154208
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 17 kg CO2 eq., 17.05291095890411
• Flashing Frequency : 1 Hz blinking, 0.23 Hz slow flashing, 7.26 Hz fast flashing, 2.33 Hz slow rotating, 3.3 Hz fast rotating
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : 60 mm Illuminated LED Unit - steady/flash/rotate-multi-color Unit-IP65 - 24 V
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308032EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Component Name : XVU
• Current Consumption : <= 70 mA
• Light Source : LED, multi-colour
• Mounting Diameter : 60 mm
• Package Weight Lbs : 146.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : modular tower light
• Range Of Product : Harmony XVU
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
• Vibration Resistance : 2 gn
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2308032EN
• Pep Verification Date : 2025-02-23
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : ZHARIF BIN NORHISHAM
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 17.6039067637003
• Circularity Profile : ENVEOLI2308032EN
• Environmental Disclosure : ENVPEP2308032EN
• IP Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308032EN
• Pep Verification Date : 2025-02-23
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : modular tower light
• Range Of Product : Harmony XVU
• Complementary Attributes
• Maximum Power Dissipation In W : 1.5 W
• US Rated Supply Voltage : 24 V AC/DC
