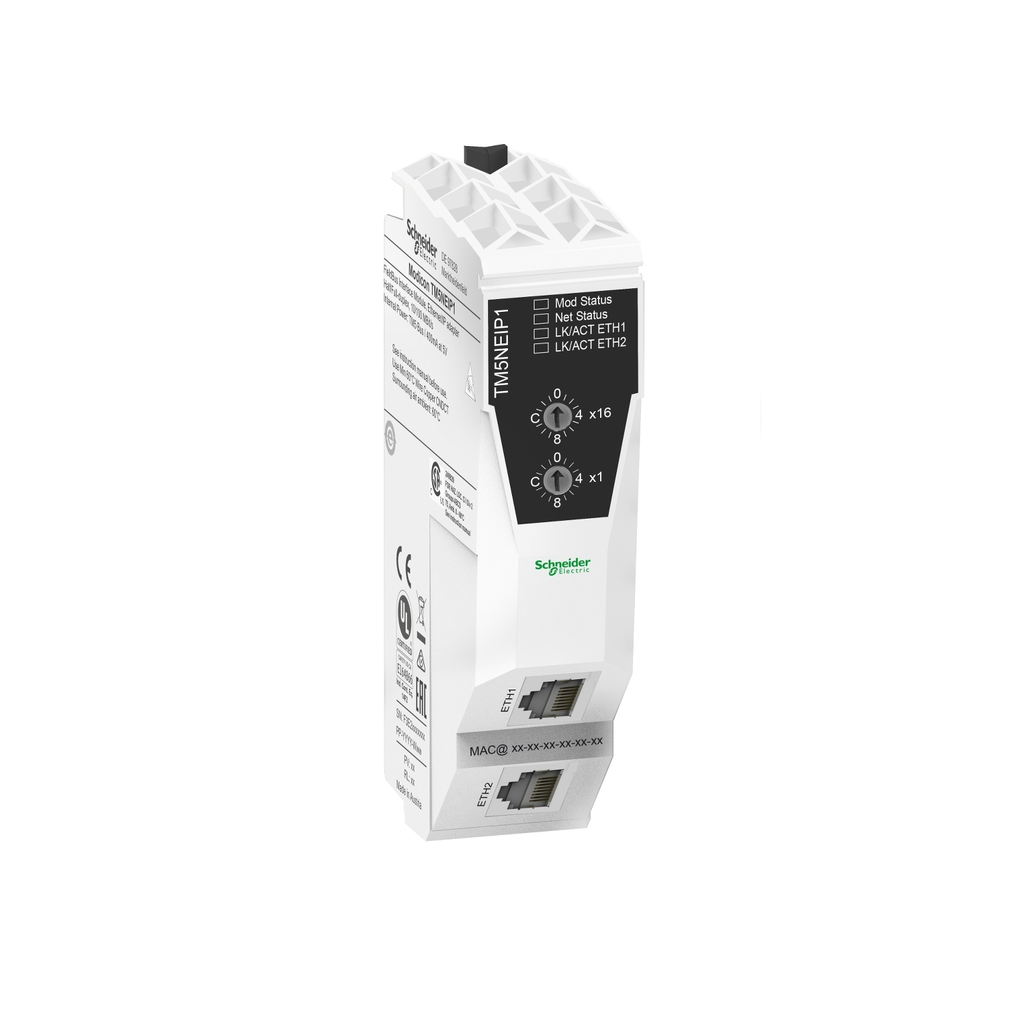

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on Ethernet network, exchanging data between controller and distributed IO. It has an

• Connector Type
• RJ45 2 Ethernet daisy chain shielded
• Range Compatibility
• Modicon TM5
• Modicon TM7
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• IEC 61131-2:2007
• UL 508
• Disturbance Radiated Conducted
• 10 V 0.15...80 MHz IEC 61000-4-6
• Marking
• CE
• EAC
• UL
• CSA
• Accessories
• TM5ACBN1
• TM5SPS3
• TM5ACTB12PS
• Vibration Resistance
• 3.5 mm constant amplitude 5-84 Hz 35 x 15 mm symmetrical DIN rail
• 9.8 m/s² constant acceleration 8.4-150 Hz
• 9.8 m/s² const
• Electromagnetic Compatibility
• emission standard for industrial environments IEC 61000-6-4 2011/A1
• immunity for industrial environments IEC 61000-6-2
• Resistance To Fast Transients
• 1 kV IEC 61000-4-4 I/O)
• 1 kV IEC 61000-4-4 shielded cable)
• 2 kV IEC 61000-4-4 power lines)
• 2 kV IEC 6100
• Relative Humidity
• 5-95 % non-condensing
• Surge Withstand
• 0.5 kV in differential mode 24 V DC IEC 61000-4-5
• 1 kV
• Resistance To Electrostatic Discharge
• 4 kV contact discharge IEC 61000-4-2
• 8 kV air discharge IEC 61000-4-2
• Resistance To Electromagnetic Fields
• 1 V/m 2...2.7 GHz IEC 61000-4-3
• 10 V/m 80 MHz...2 GHz IEC 61000-4-3
• Shock Resistance
• 147 m/s² 11 ms
• Product Compatibility
• logic controller
• motion controller
• Local Signalling
• 1 LED green/red module status
• 1 LED green/red network
• 1 LED green Ethernet activity (ETH1)
• 1 LED green Ethern
• Ambient Air Temperature For Operation
• -20-60 °C horizontal position)
• -20-50 °C vertical position)
• Product Certifications
• UL 508
• CSA 22-2 No 142-M1987
• CSA 22-2 No 213-M1987

• Complementary Attributes
• Integrated Connection Type : Ethernet/IP
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Pre Comm Date : 2019-07-12
• ETIM 10 : EC000634
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511025EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1922
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Environmental Characteristic : no corrosion resistance
• Exchange Mode : half duplex, full duplex, autonegotiation, auto MDIX
• Package Weight Lbs : 71.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Ethernet module
• Product Specific Application : bus coupler module
• Returnability : Yes
• Sustainable Packaging : No
• Transmission Rate : 10/100 Mbit/s
• Web Server : embedded
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Ethernet module
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465484172&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI1511025EN
• Environmental Disclosure : ENVPEP1511025EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP20
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Specifications
• Country of Origin : Austria
• Height : 3.9 in
• Width : 0.98 in
• Depth : 2.95 in
