bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20

Serial Line TM3 Bus Coupler Mo

SQDTM3BCSL TM3BCSL 3606489811051
459.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20-1

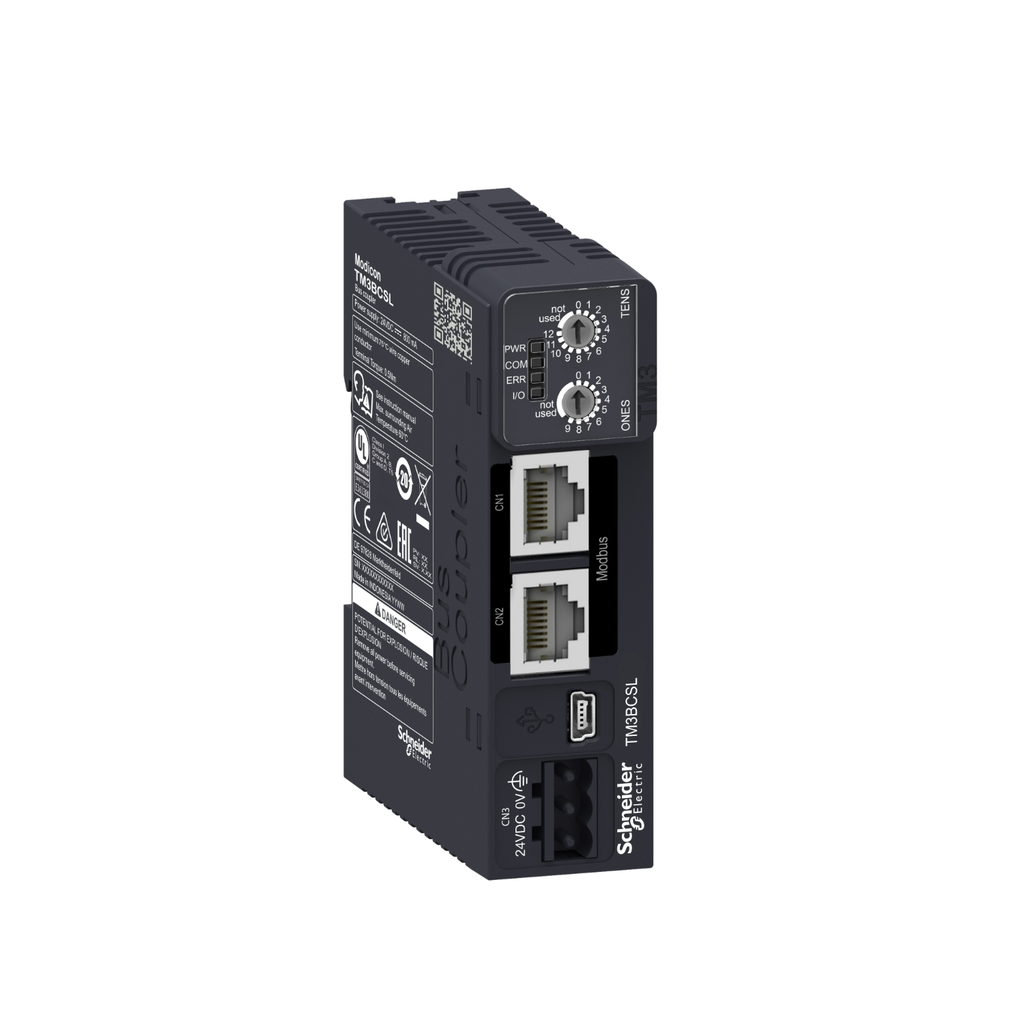

This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This is a bus coupler for the Modbus serial link. It has 2 isolated RJ45s to connect to the Serial line bus. It allows plc to manage the distribution of up to 448 digital I/O and 112 analog I/O through a Modbus serial line. The data exchange rate is from 1.2kbits/s up to 112.2 kbits/s. It works via a 24VDC external power supply. It is an IP20-rated product. It measures 27mm wide 96.5mm high and 70mm deep. It weighs 0.100kg. It is a device designed to manage serial line communication when using expansion modules with a controller in a distributed architecture. It is certified by ce, cULus, EAC, RCM, UKCA, and EU RO Mutual Recognition. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Fixing Mode : by clipping locks (rail), by screws (mounting plate)
    • Local Signalling : 1 LED green/red PWR (System Status), 1 LED green/red COM (Run), 1 LED green/red ERR (Error), 1 LED green/red I/O status
    • Carbon Footprint Of The Distribution Phase A4 : 0.0215463579, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0654188944, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0004487807
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.980616518
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 155 kg CO2 eq., 154.51
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : IP20 I/O Distributed Optimized TM3 Bus Coupler Module Serial Line Interface
    • Manufacturer : Square D
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1712005EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Bearing Track Assembly Possible : true
    • Current Consumption : 0.8 A 24 V DC internal supply maximum 7 expansion modules
    • Front Installation Possible : false
    • IO Link Master Present : false
    • Network Type : DC
    • Package Weight Lbs : 167.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : I/O distributed module
    • Rack Assembly Possible : true
    • Radio Standard Bluetooth : false
    • Radio Standard GPRS : false
    • Radio Standard GSM : false
    • Radio Standard UMTS : false
    • Range Of Product : Modicon TM3
    • Returnability : Yes
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 158 kg CO2 eq.
    • Vibration Resistance : 3M4 on 35 mm DIN rail
    • Wall Mounting Direct Mounting Possible : false
    • Web Services : web server, USB
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • DC Supply Voltage : 20.4-28.8 V
    • Radio Standard Wi Fi 802 11 : false
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1712005EN
    • Pep Verification Date : 2018-06-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : To communicate I/Os data coming from TM3 I/O Modules connected on the right side of the TM3 Bus Controller, up to the main controller via the Fieldbus Ethernet at 3.6 W 100% of the time.
    • Functional Unit Unit : unité (unit)
    • Performance Level According To En Iso 13849 1 : none
    • Potential Separation Present : false
    • Radio Standard Egprs : false
    • Radio Standard Lte : false
    • System Accessory : true
    • Installation Material : TMAM2
    • Product Kit Identifier : N
    • Product Manager : IRINA BELOZEROVA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 157.578030551
    • Ambient Air Temperature For Operation : -10-60 °C
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI1712005EN
    • Environmental Disclosure : ENVPEP1712005EN
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1712005EN
    • Pep Verification Date : 2018-06-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Conformance Attributes
    • Product Certifications : CE, cULus, EAC, RCM, UKCA, EU-RO MR
    • Standards : IEC 61131-2, UL/CSA 61010-1, UL/CSA 61010-2-201
  • General Attributes
    • Product Or Component Type : I/O distributed module
    • Range Of Product : Modicon TM3
