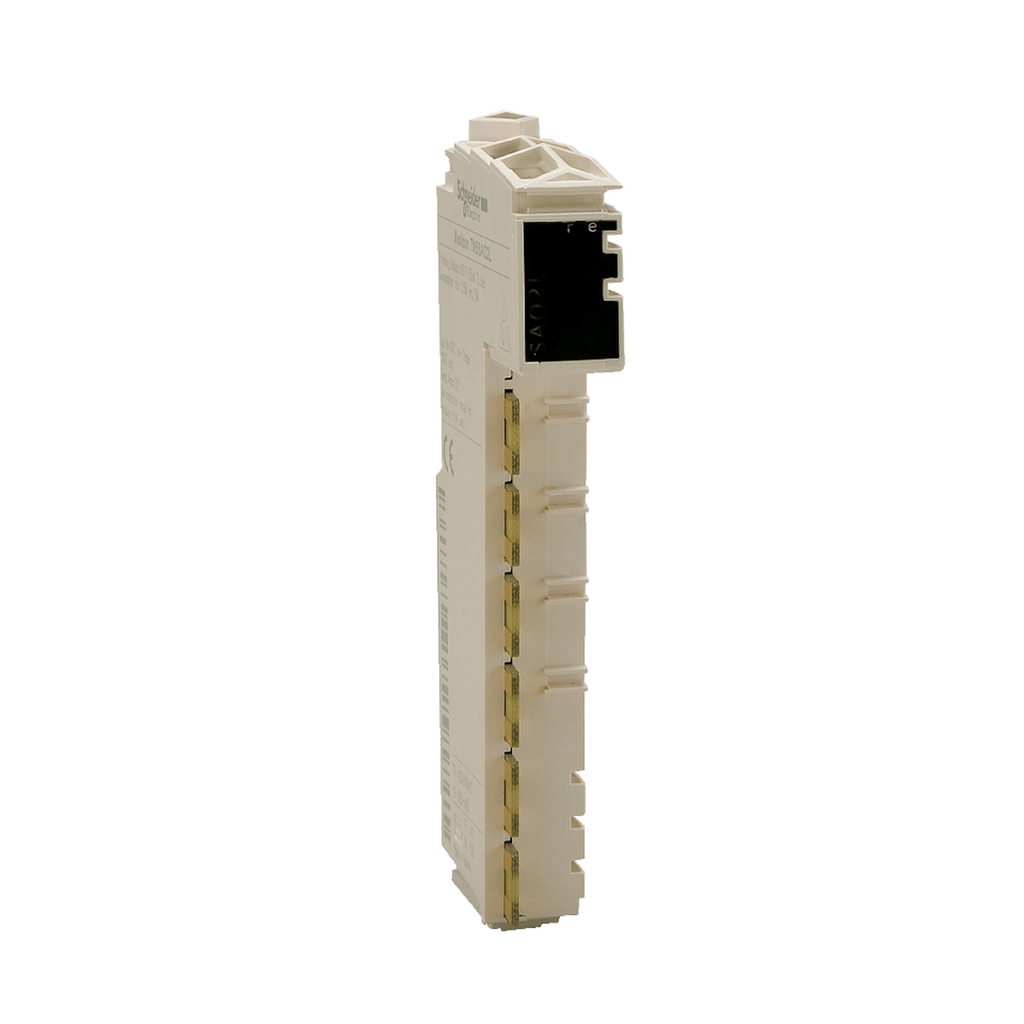

Mixed I/O module, Modicon TM5, module

MOD. 24VDC 4DI/2DO TR/1AI/1AO

SQDTM5SMM6D2L TM5SMM6D2L 3595864082073
450.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mixed I/O module, Modicon TM5, module-1
  • Output Voltage: 24 V
  • Warranty Length: 18 mth
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : C-tick, CSA, cULus, GOST-R
    • Standards : IEC 61131-2, CSA C22.2 No 142, UL 508, CSA C22.2 No 213
  • Complementary Attributes
    • Minimum Output Impedance : 1 kOhm +/- 10 V 0-55 °C, 10 kOhm +/- 10 V 55-60 °C
    • Maximum Leakage Current : 5 µA when switched off) digital output
    • Maximum Power Dissipation In W : 1.75 W
    • US Rated Supply Voltage : 24 V DC -15...20 %
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Common Mode Rejection : 70 dB DC analog input, 70 dB 50 Hz analog input
    • Current Consumption : 2 mA 5 V DC bus, 73 mA 24 V DC inputs/outputs
    • Isolation : no insulation between channels, 500 Vrms AC insulation between channel and bus
    • Load Impedance Ohmic : <= 400 Ohm0...20 mA) 0-55 °C, <= 400 Ohm0...20 mA) 0-55 °C, <= 400 Ohm0...20 mA) 0-55 °C, <= 300 Ohm0...20 mA) 55-60 °C, <= 300 Ohm0...20 mA) 55-60 °C, <= 300 Ohm0...20 mA) 55-60 °C, <= 300 Ohm 0...20 mA/4...20 mA), <= 300 Ohm 0...20 mA/4...20 mA)
    • Local Signalling : 1 LED (green) for power supply (ON), 1 LED (red) for power supply (OFF), 4 LEDs (green) for digital input status, 2 LEDs (orange) for digital output status, 1 LED (orange), 1 LED (green)
    • Measurement Error : < 0.08 % of full scale +/- 10 V) 25 °C, < 0.08 % of full scale +/- 10 V) 25 °C, < 0.08 % of full scale +/- 10 V) 25 °C, < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C, < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C, < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C, < 0.15 % of full scale+/- 10 V) 25 °C, < 0.15 % of full scale+/- 10 V) 25 °C, < 0.15 % of full scale+/- 10 V) 25 °C, < 0.15 % of full scale0...20 mA) 25 °C, < 0.15 % of full scale0...20 mA) 25 °C, < 0.15 % of full scale0...20 mA) 25 °C
    • Measurement Resolution : 2.441 mV, +/- 10 V, +/- 10 V, 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA
    • Non Linearity : +/- 0.02 %FS 0...20 mA/4...20 mA), +/- 0.02 %FS 0...20 mA/4...20 mA), +/- 0.02 %FS +/- 10 V), +/- 0.02 %FS +/- 10 V), +/- 0.1 %FS0...20 mA), +/- 0.1 %FS0...20 mA), +/- 0.1 %FS+/- 10 V), +/- 0.1 %FS+/- 10 V)
    • Protection Type : against reverse polarity digital output, against short-circuits digital output, thermal overload protection digital output, against short-circuits analog output
    • Response Time : <= 250 µs from state 0 to state 1 digital output, <= 250 µs from state 0 to state 1 digital output, <= 250 µs from state 0 to state 1 digital output, <= 250 µs from state 1 to state 0 digital output, <= 250 µs from state 1 to state 0 digital output, <= 250 µs from state 1 to state 0 digital output, 1 ms analog output
    • Temperature Coefficient : +/- 0.009 %FS/°C 0...20 mA/4...20 mA), +/- 0.009 %FS/°C 0...20 mA/4...20 mA), +/-0.006 %FS/°C +/- 10 V), +/-0.006 %FS/°C +/- 10 V), +/- 0.02 %FS/°C0...20 mA), +/- 0.02 %FS/°C0...20 mA), +/- 0.02 %FS/°C+/- 10 V), +/- 0.02 %FS/°C+/- 10 V)
    • Vibration Resistance : 1 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on DIN rail
    • Carbon Footprint Of The Distribution Phase A4 : 0.01505593868443122, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.06859268619381052, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.029697140620225156
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.4474566101112556
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 71 kg CO2 eq., 70.59216437854906
    • Auxiliaries : TM5ACTCH100, TM5ACTLC100
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1511026EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Bearing Track Assembly Possible : true
    • Conversion Time : 300 µs analog output
    • Front Installation Possible : false
    • IO Link Master Present : false
    • Network Type : DC
    • Package Weight Lbs : 43.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : mixed I/O module
    • Rack Assembly Possible : false
    • Radio Standard Bluetooth : false
    • Radio Standard GPRS : false
    • Radio Standard GSM : false
    • Radio Standard UMTS : false
    • Range Of Product : Modicon TM5
    • Returnability : No
    • Sampling Duration : 300 µs analog input
    • Shock Resistance : 15 gn 11 ms
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : No
    • Switching Frequency : 100 Hz, resistive digital output
    • Total Lifecycle Carbon Footprint : 72 kg CO2 eq.
    • Wall Mounting Direct Mounting Possible : false
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Wiring Mode : 1 wire digital input/output
    • Relationship Type : Compatible relationship
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • DC Supply Voltage : 24-24 V
    • Digital Outputs Configurable : false
    • Fieldbus Connection Over Separate Bus Coupler Possible : false
    • Radio Standard Wi Fi 802 11 : false
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1511026EN
    • Pep Verification Date : 2025-12-25
    • PCR Version : PCR-4-ed4-FR-2021 09 06
    • PSR Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
    • Functional Unit Unit : unit
    • Performance Level According To En Iso 13849 1 : none
    • System Accessory : false
    • Digital Inputs Configurable : false
    • Time Delay At Signal Change : 1-1 ms
    • Product Kit Identifier : N
    • Product Manager : DAVID LATRE
    • Analogue Input Signal Configurable : false
    • Analogue Input Current : true
    • Analogue Input Resistance Thermometer : false
    • Analogue Input Resistor : false
    • Analogue Input Thermocouple : false
    • Analogue Input Voltage : true
    • Analogue Inputs Configurable : true
    • Analogue Output Signal Configurable : false
    • Analogue Outputs Configurable : true
    • Short Circuit Protection Digital Outputs Available : true
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-55 °C without derating horizontal installation), 55-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 72.15296675415878
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI1511026EN
    • Environmental Disclosure : ENVPEP1511026EN
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Pep Code : ENVPEP1511026EN
    • Pep Verification Date : 2025-12-25
    • PCR Version : PCR-4-ed4-FR-2021 09 06
    • PSR Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : mixed I/O module
    • Range Of Product : Modicon TM5
  • Output Attributes
    • Analogue Output Resolution : 12 bits + sign, +/- 10 V, 12 bits, 0...20 mA
    • Analogue Output Type : voltage +/- 10 V, current 0...20 mA
    • Discrete Output Current : <= 0.5 A per output, <= 0.5 A per output, <= 1 A
    • Minimum Output Impedance : 1 kOhm +/- 10 V 0-55 °C, 10 kOhm +/- 10 V 55-60 °C
    • Output Voltage : 24 V DC
    • Peak Output Current : 14 A
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Analogue Input Resolution : 12 bits + sign voltage, 12 bits current
    • Analogue Input Type : voltage +/- 10 V, current 0...20 mA/4...20 mA
    • Input Filtering : <= 2 µs hardware, <= 2 µs hardware, 1 ms by default, <= 25 ms configurable by software, <= 25 ms configurable by software
    • Input Impedance : 7.18 kOhm digital, >= 1 MOhm analog, +/- 10 V, >= 1 MOhm analog, +/- 10 V, >= 1 MOhm analog, +/- 10 V
    • Discrete Input Voltage : 24 V DC 20.4...28.8 V)
    • Discrete Input Voltage Type : DC
