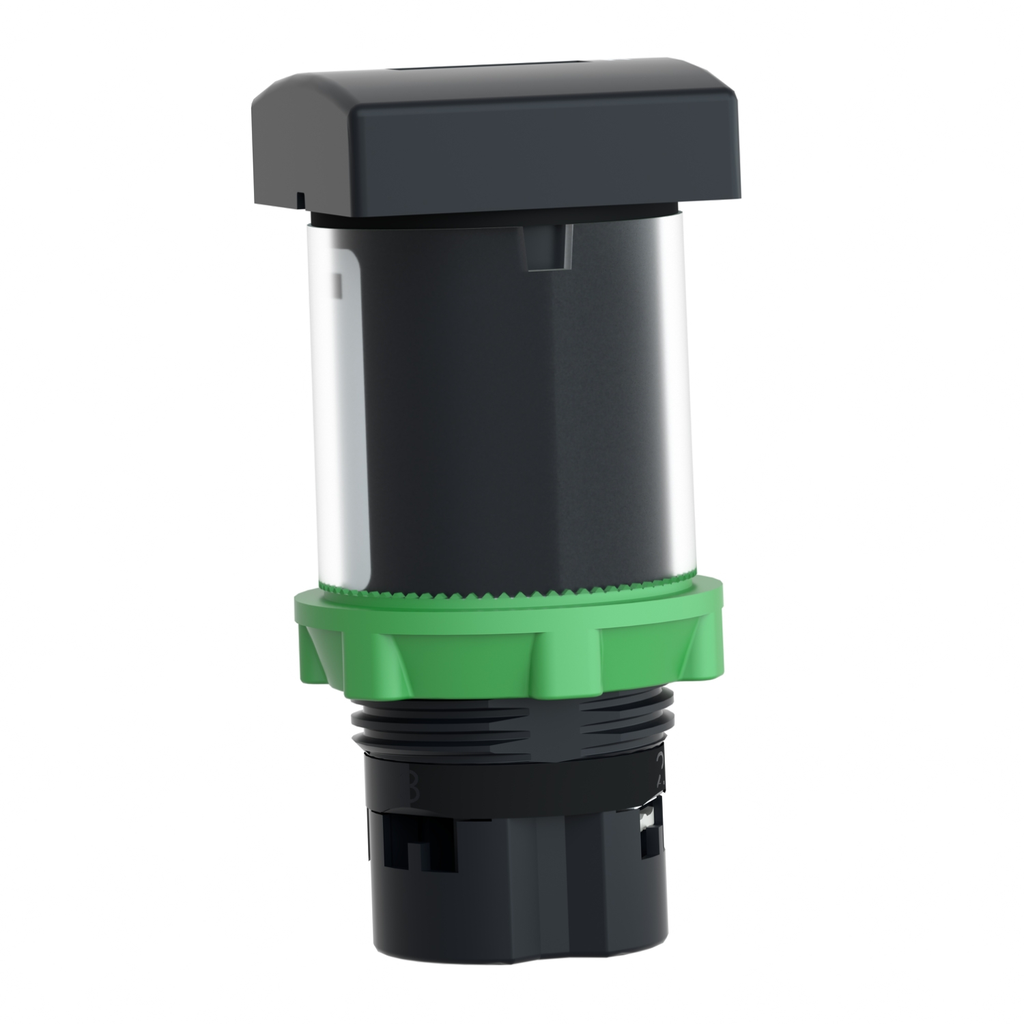

This Schneider Electric Harmony XB5 hour counter has 5 display digits and is supplied with 230 to 240Vac. It has a rectangular shape with a metal body and a plastic bezel. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into a standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications It is CE and UL certified. This range delivers an innovative and ergonomic design that allows easy operation and improves the look and feel of your control panels and machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• US Rated Supply Voltage : 230...240 V +/- 10 %
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : no, 0
• Carbon Footprint Of The Distribution Phase A4 : 0.0057537076, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0385238012
• Carbon Footprint Of The Installation Phase A5 : 0.0003269895, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.264051462
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409020EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : dark grey plastic
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Mounting Diameter : 22 mm
• Package Weight Lbs : 45.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : hour counter
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP1710010_V2
• Pep Verification Date : 2022-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Pushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.3086559602
• Circularity Profile : ENVEOLI1409020EN
• Environmental Disclosure : ENVPEP1710010_V2
• IP Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1710010_V2
• Pep Verification Date : 2022-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : hour counter
• Range Of Product : Harmony XB5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : monolithic product
