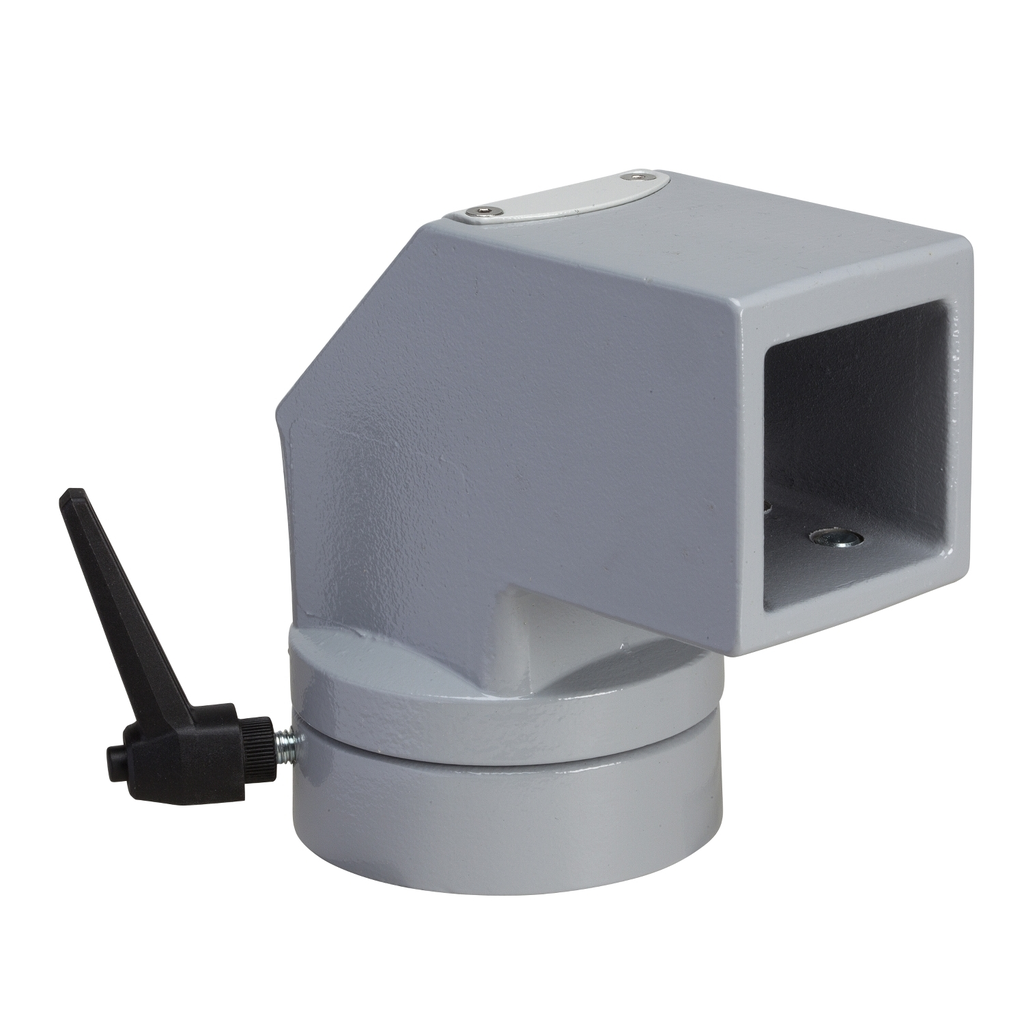

Horizontal rotating fixing, square 50 mm RAL 7040. For S3CM HMI encl.

CM Horiz rotating fixing 50mm

SQDNSYCMUCC50 NSYCMUCC50 360648021311
0.00 / EA
  • Depth: 180 mm
  • Diameter: 96 mm
  • Height: 147 mm
  • Material: Aluminum
  • Net Weight: 2 kg
  • Warranty Length: 18 mth
  • Width: 154 mm
Spacial S3CM HMI horizontal rotating fixing, square 50mm. H is 147 x 154 x 180 mm. Bent and rotating enclosure fixing. Mounting on enclosure, in horizontal position. Operating angle is 310 °. Permanent permissible load is 2 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7035. set of 1.
  • Product Description
  • Specifications
Spacial S3CM HMI horizontal rotating fixing, square 50mm. H is 147 x 154 x 180 mm. Bent and rotating enclosure fixing. Mounting on enclosure, in horizontal position. Operating angle is 310 °. Permanent permissible load is 2 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7035. set of 1.
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Operating Angle : 310 °
    • Color : Gray RAL 7040)
    • Material : aluminium
    • Diameter : 96 mm
    • Depth : 180 mm
    • Fixing Mode : fixing through the support surface by 4 screws M6
    • Permanent Permissible Load : 2 kg
    • Surface Finish : epoxy-polyester powder
    • Height : 147 mm
    • Net Weight : 2 kg
    • Width : 154 mm
  • Product Or Component Type : bent and rotating enclosure fixing
  • Accessory / Separate Part Category : cable management accessory
  • Device Application : multi-purpose
  • Device Composition : fixing elements || 1 rotating fixing
  • Range : Spacial
  • Mounting Location : on enclosure, in horizontal position
  • Mounting Support : for 50 mm square tube || option of passing cables through the inside
  • Range Compatibility : Spacial S3CM
  • Quantity Per Set : set of 1
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100104EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
