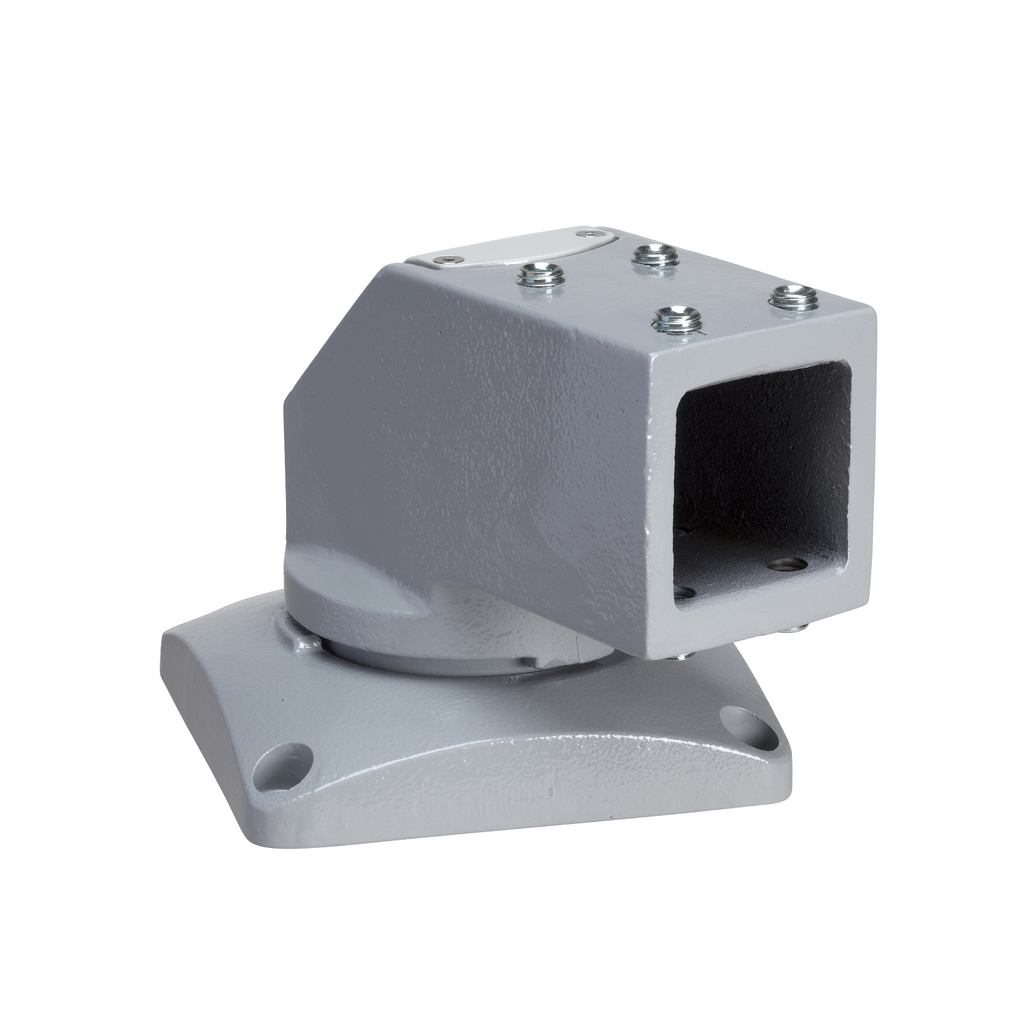

Spacial S3CM HMI horizontal rotating bracket, square 50mm. H: 134 x 140 x 164 mm. Fixing on support. Mounting between tube and support, in horizontal position . Operating angle: 295°. Permanent permissible load: 5.4 kg. Aluminium, epoxy-polyester powder

• Mounting Support
• option of passing cables through the inside
• for 50 mm square tube
• Range Compatibility
• PanelSeT PanelSeT S3CM
• Fixing Mode
• by fixing element M12 - horizontal tube
• by 4 screws M9 - on support
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• fixing elements
• 1 fixing and rotating bracket
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7040)

• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• ETIM 10 : EC002620
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Device Application : multi-purpose
• Enclosure Nominal Dimensions : -
• Material : moulded steel
• Mounting Location : between tube and support
• Operating Angle : 295 °
• Package Weight Lbs : 5.750 kg
• Permanent Permissible Load : 5.4 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : fixing on support
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Accessory Separate Part Category : mounting accessory
• General Attributes
• Product Or Component Type : fixing on support
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10177007&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP100104EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
• Height : 5.28 in
• Width : 5.51 in
• Depth : 6.46 in
