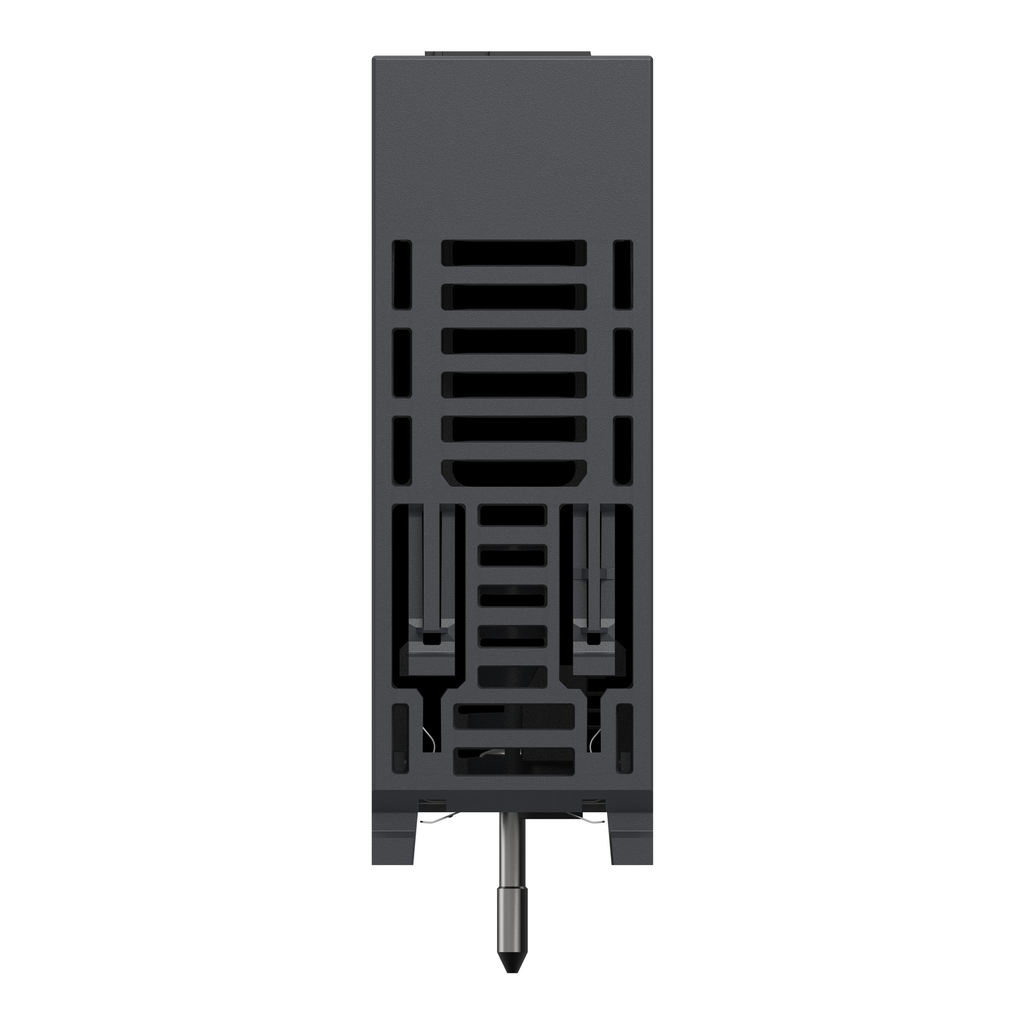

Counter module, Modicon M340 automation platform, high speed 8 channels

Counter module, Modicon M340 automation platform, high speed 8 channels

SQDBMXEHC0800 BMXEHC0800 785901501824
1346.00 / EACH
  • Country of Origin: France
  • Current: 200 mA, 24 V, 3.3 V, 80 mA
  • Input Voltage: 24 V
  • Number of Channels: 8
  • Warranty Length: 18 mth
  • Weight: 0.113 kg, 0.25 lb
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Environment
    • Ambient Air Temp For Op : 32…140 °F (0…60 °C)
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Protective Treatment : TC
    • Relative Humidity : 10…95 % without condensation
    • IP Degree Of Protection : IP20
  • Main
    • Counting Frequency : 10000 Hz
    • Product Or Component Type : Counter module
    • Number Of Channels : 8
    • Range Of Product : Modicon M340 automation platform
    • Input Compatibility : 19.2…30 V 2-wire/3-wire proximity sensor || incremental encoder with push-pull outputs, 10...30 V totem pole
    • Input Voltage : 24 V DC type 3
    • Number Of Inputs : 2 single mode) || 3 special dual phase mode)
  • Complementary
    • Counter Functions : Up/down counter || 32-bit counter counting || Frequency meter || Loop (modulo) counting || Count events || Down counting
    • Current Consumption : 200 mA 3.3 V DC bus || 80 mA 24 V DC sensor
    • Input Voltage Limits : 30 V
    • Product Weight : 0.25 lb(US) (0.113 kg)
    • Voltage State 1 Guaranteed : 11...30 V
    • ISOlation Voltage : 1500 V 60 s
    • Current State 1 Guaranteed : >= 6 mA
    • Module Format : Standard
    • Current State 0 Guaranteed : <= 1.5 mA
    • Input Type : High speed
    • Electrical Connection : 1 connector 20 pins
    • Cycle Time : 5 ms
    • Input Current : 2 mA at 11 V
    • Voltage State 0 Guaranteed : < 5 V
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Discount Schedule : PC34
    • Country Of Origin : FR
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901501824
    • Category : 18160 - MODICON M340
    • Returnability : Yes
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
