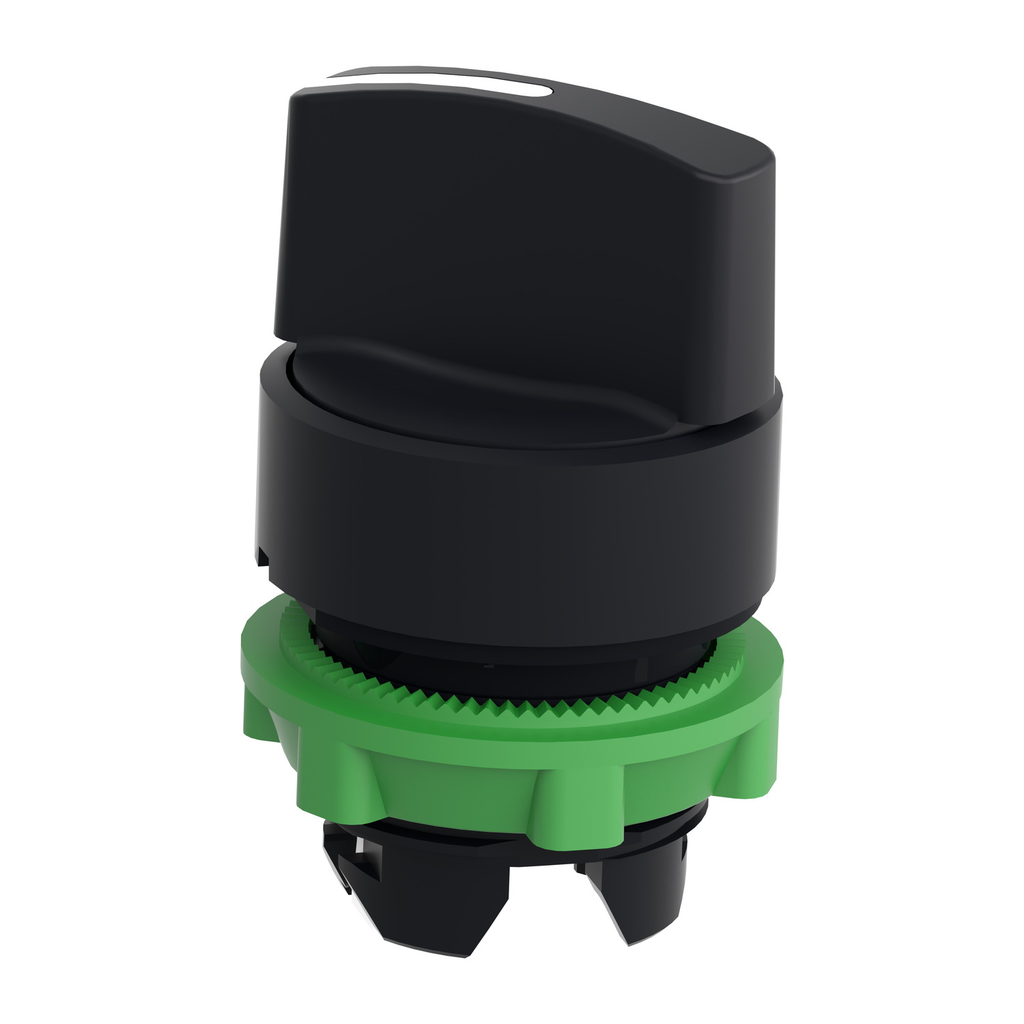

This Harmony XB5, black selector switch head with standard handle has 2 positions, operates with spring return from right to left mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2.stp, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-back.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-back.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-bottom.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-bottom.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-front.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-front.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-isometric.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-isometric.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-left.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-left.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-right.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-right.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-top.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AD2_NEW_2024&p_File_name=ZB5AD2_2D-top.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005565_3D-CAD&p_File_name=MCADID0005565_2D-top.dxf
• Physical Attributes
• Cad Overall Depth : 46 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : black
• Conformance Attributes
• Product Certifications : DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : UL 508, IEC 60947-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Electrical Composition Code : C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs
• Carbon Footprint Of The Distribution Phase A4 : 0.0026153043, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0351332093
• Carbon Footprint Of The Installation Phase A5 : 0.0068106931, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.1361911678
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, spring return from right to left
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Black selector switch head, 22 Dia, 2-position spring return
• Return Indicator : Y
• Stocking Flag : Y
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 60 %
• Average Percentage Of Recycled Plastic Content : 28 %
• Bezel Material : dark grey plastic
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Group Of Product : non illuminated
• Head Type : standard
• Main Group : selector switch
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22 mm
• Operator Position Information : 2 positions 90°
• Operator Profile : black standard handle
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for selector switch
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : right to left spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : black
• Operator Pos Information : 2 positions 90°
• Operator Profile 1 Cap Operator Or Lens Color : black
• Type Of Operator 3 Type Of Operator : spring return
• Type Of Operator 3 Return : right to left
• Pep Code : ENVPEP2308008_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Environment Attributes Main
• Ip Degree Of Protection : IP67 IEC 60529, IP69 IEC 60529, IP69K
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 60 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.1807503744
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308008EN
• Environmental Disclosure : ENVPEP2308008_V1-EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308008_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for selector switch
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000222
• ETIM 9 : EC000222
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
