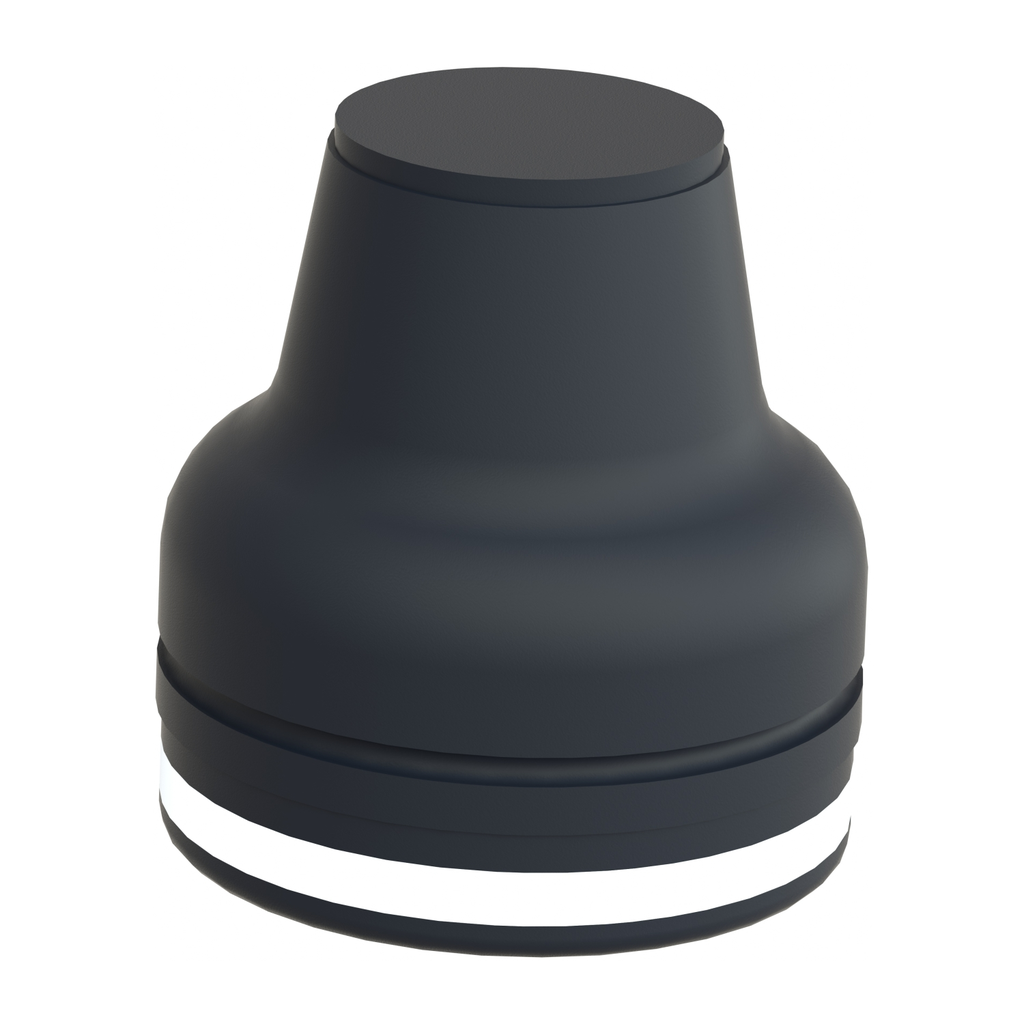

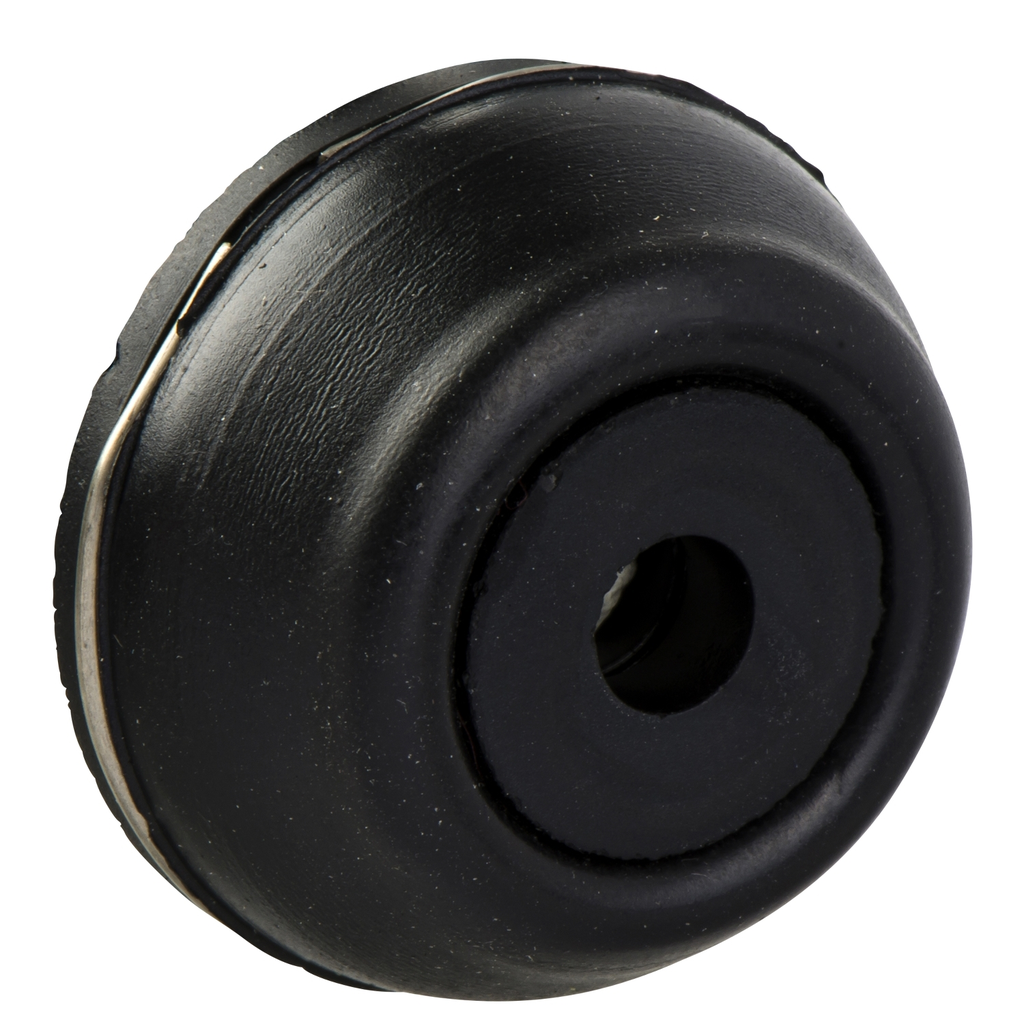

This black booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 16mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112.stp, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-back.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-back.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-bottom.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-bottom.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-front.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-front.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-isometric.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-isometric.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-left.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-left.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-right.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-right.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-top.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9112_NEW_2024&p_File_name=XACB9112_2D-top.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XACB9212-3dCAD
• Physical Attributes
• Cap Operator Or Lens Color : black
• Conformance Attributes
• Standards : IEC 60947-5-1, CSA C22.2 No 14
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.0010146465, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0043811189
• Carbon Footprint Of The Installation Phase A5 : 0.0000241814, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0 kg CO2 eq., 0.0240159285
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for push button, Harmony XAC, plastic, black, booted, operating travel 16mm, 25...+ 70 degree C
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : End of commerc. announced
• Return Indicator : Y
• Stocking Flag : N
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Component Name : XACB
• Electrical Shock Protection Class : class II conforming to IEC 61140
• Marking : unmarked
• Operating Travel : 16 mm
• Operator Additional Information : booted
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for push-button
• Range Of Product : Harmony XAC
• Returnability : Yes
• Shock Resistance : 100 gn IEC 60068-2-27
• Software Version : EIME v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0 kg CO2 eq.
• Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : black
• Pep Code : ENVPEP0709005EN
• Database Version : 2022-01
• Pep Verification Date : 2022-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Czech Republic
• Energy Model Installation A5 2 : Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
• Energy Model Use B6 2 : Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
• Energy Model End Of Life C1 C4 2 : Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
• Environment Attributes Main
• Product Compatibility : XESD1281, XESD1191, XESD1181, XESD1291
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.0294358753
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP0709005EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP0709005EN
• Pep Verification Date : 2022-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for push-button
• Range Of Product : Harmony XAC
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
