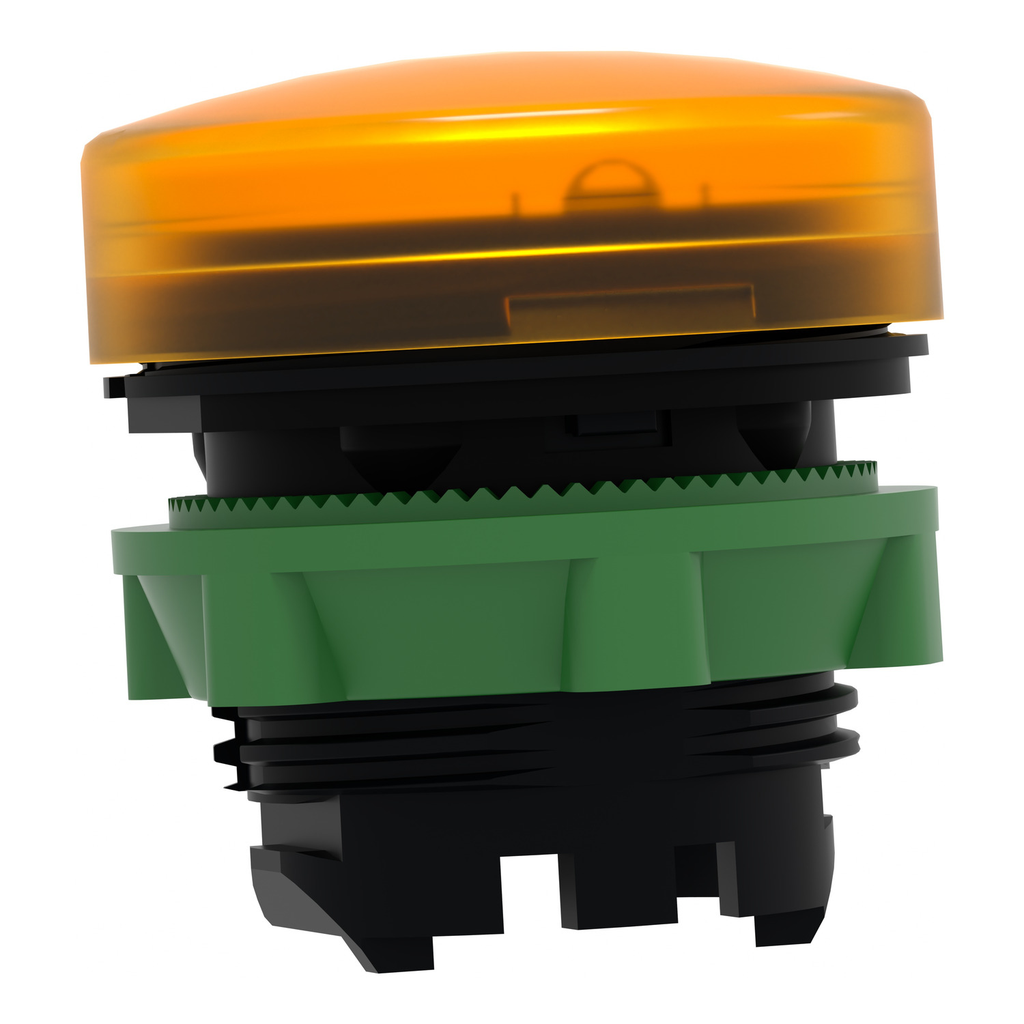

Head for pilot light, Harmony XB5, metal, orange, 22mm, plain lens for BA9s bulb

PILOT LIGHT

SQDZB5AV05 3389110908114
5.00 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Net Weight: 0.018 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB5 plain lens orange head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This Harmony XB5 plain lens orange head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK05 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Composition Code : P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
    • Net Weight : 0.018 kg
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 31 mm
  • Specifications
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Product Or Component Type : head for pilot light
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : yellow
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Product Compatibility : BA 9s
    • Device Short Name : ZB5
