Head for pilot light, Harmony XB4, 5 colours choice, 22mm, with plain lens, universal LED

PILOT LIGHT

SQDZB4BV003 ZB4BV003 3389110889611
5.00 / EA
http://schema.org/OutOfStock
QTY
  • Product Description
  • Specifications

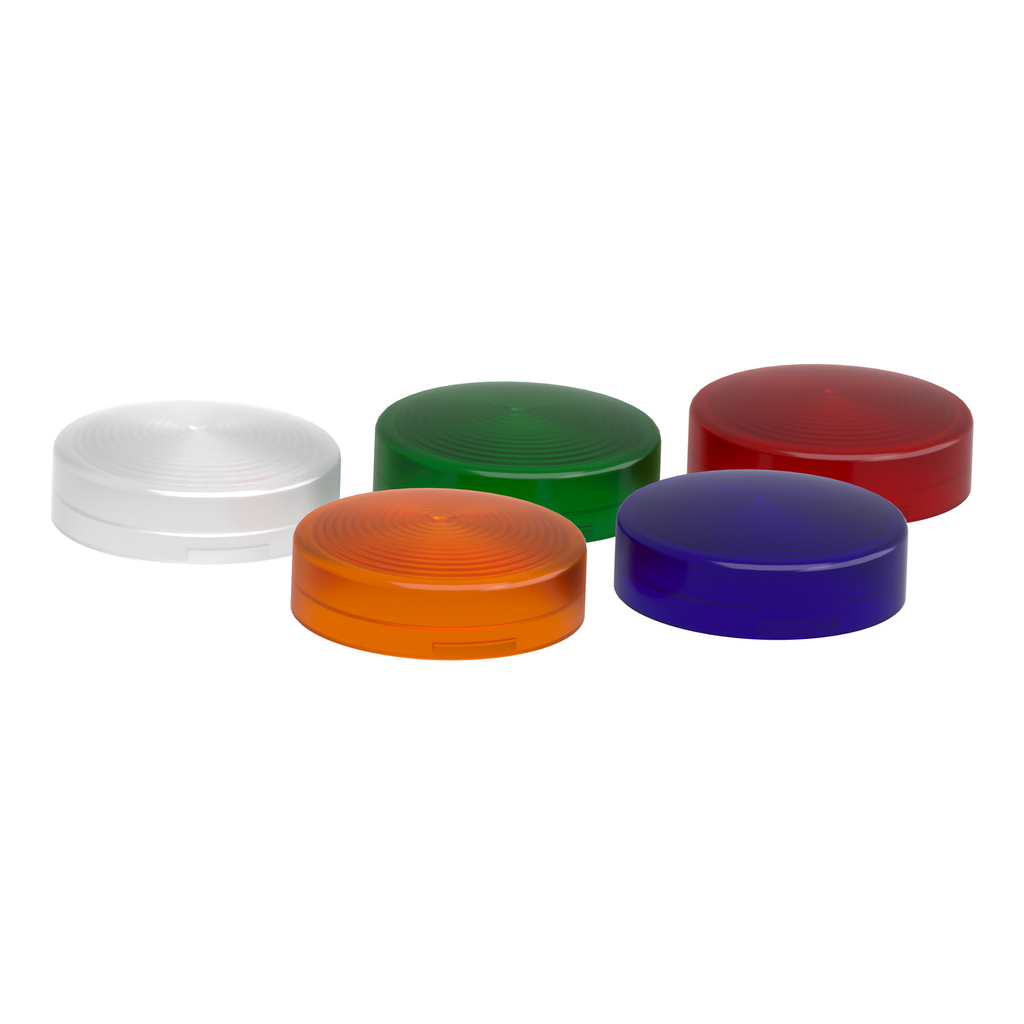

This Harmony XB4, plain lens head for pilot light with universal LED provides 5 colors of len: white, green, red, orange, blue. This heads set for universal LED pilot light comes with 5 different colors for multi-purposes use of machine operation. It is designed to last without maintenance for a bright indication of process and is clearly distinguishable visually at a distance thanks to clear colors of lens, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308026EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI2308026EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer
    • Net Weight : 0.026 kg
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 30 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 29 mm
    • Height : 29 mm
    • Weight : 0.026 kg
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22 mm
    • Product Or Component Type : head for pilot light
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : 5 colours choice
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Product Compatibility : universal LED
    • Device Short Name : ZB4
