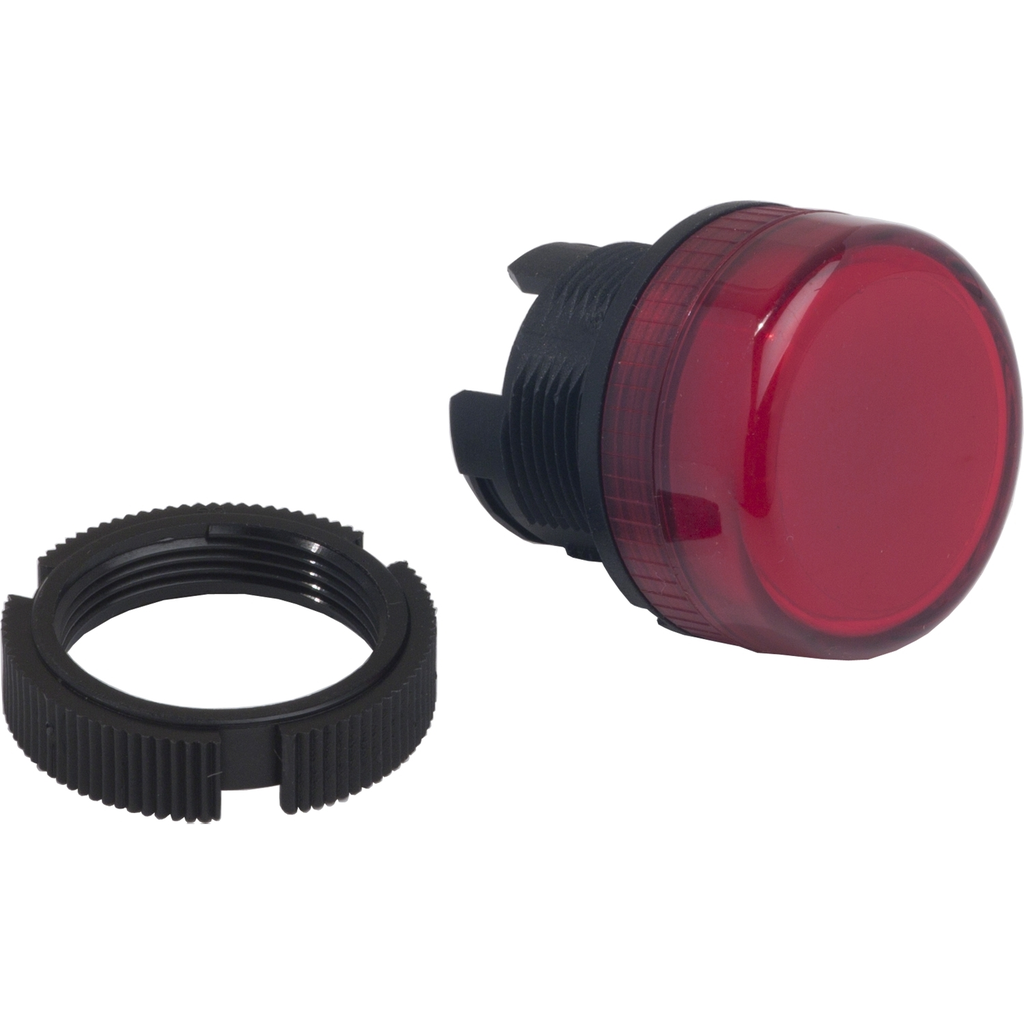

Head for pilot light, Harmony XAC, for incandescent bulb, plastic, red cap, 22mm

PILOT LIGHT RED

SQDZA2BV04 ZA2BV04 3389110645378
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for pilot light, Harmony XAC, for incandescent bulb, plastic, red cap, 22mm-1
  • Warranty Length: 18 mth
This Harmony ZA2BV04 is a red pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony ZA2BV04 is a red pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
  • Features
    • Mechanical durability of 1 million cycles
    • IP65 and IK08 degree of protection
    • Complies with IEC standards
    • Wide range of operating temperature from -25°C to 55°C
    • Class II conforming to IEC 61140
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : red
  • Conformance Attributes
    • Standards : CSA C22.2 No 14, IEC 60947-5-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 0.001961478260869565, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.02823586956521739
    • Carbon Footprint Of The Installation Phase A5 : 0.0036304565217391304, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.5009739130434783
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308019EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Cap Operator Or Lens Color : red
    • Compatibility Code : ZA2B
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Mechanical Durability : 1000000 cycles
    • Overvoltage Category : class II conforming to IEC 61140
    • Package Weight Lbs : 15.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for pilot light
    • Product Specific Application : for incandescent bulb
    • Protective Treatment : TH
    • Range Of Product : Harmony
    • Returnability : Yes
    • Shock Resistance : 100 gn IEC 60068-2-27
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
    • Medium Desc : Head for pilot light, Harmony XAC, for incandescent bulb, plastic, red cap, 22mm
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2308019EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : This monolithic red pilot light comes with integral LED and this provides clear visual feedback on the status of machines. Pilot lights helps to know when a machines process has started or stopped to keep workers safe and equipment operating smoothly Product has power consumption of 3.45W with 71% of use rate during 10 years of life time and adhering with internaional standard IEC 60947-5-1.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; CN
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; CN
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; CN
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; CN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.5348017173913043
    • Ambient Air Temperature For Operation : -25-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308019EN
    • Environmental Disclosure : ENVPEP2308019EN
    • IP Degree Of Protection : IP65 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308019EN
    • Pep Verification Date : 2023-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for pilot light
    • Range Of Product : Harmony
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
