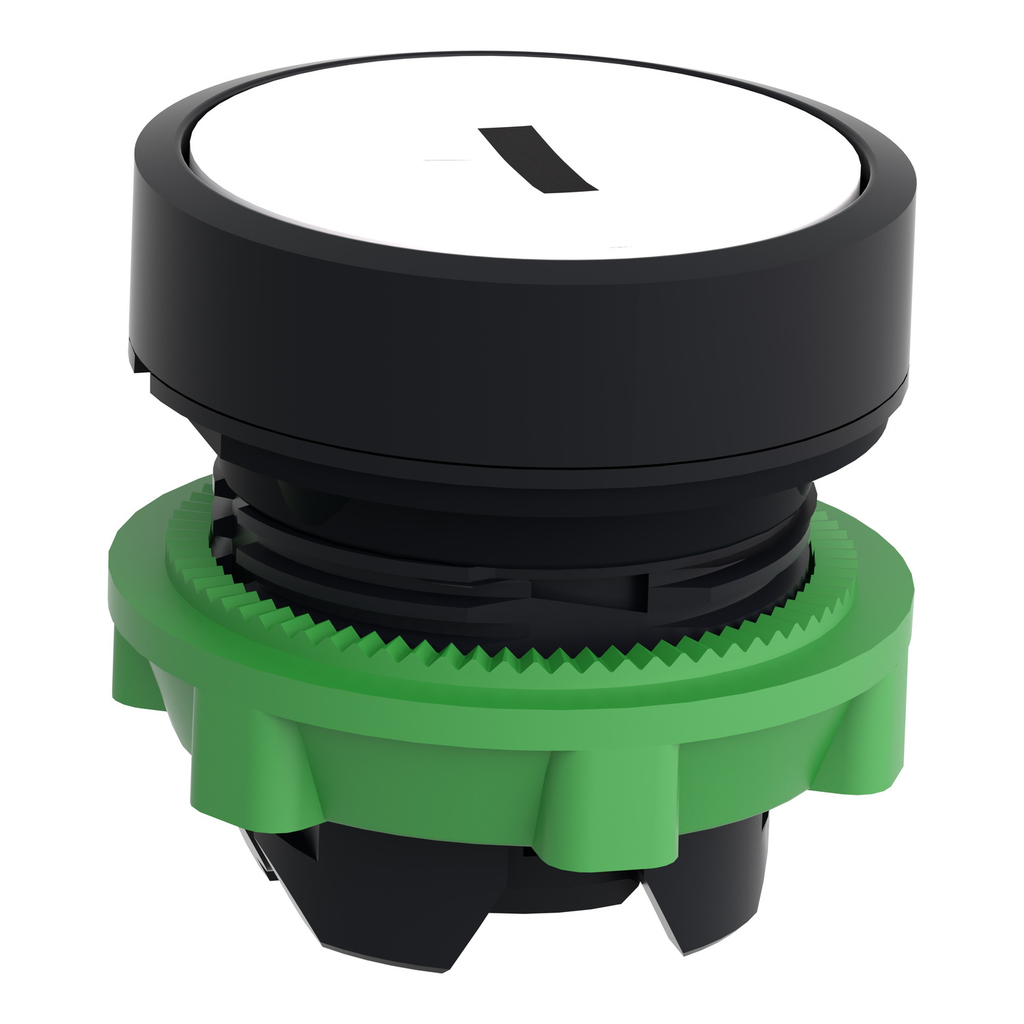

This white flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Environment
- Product Certifications : BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || CSA
- Ik Degree Of Protection : IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Net Weight : 0.018 kg
- Cad Overall Height : 29 mm
- Device Presentation : basic element
- Mechanical Durability : 10000000 cycles
- Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width : 29 mm
- Cad Overall Depth : 28 mm
- Specifications
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for non-illuminated push-button
- Shape Of Signaling Unit Head : round
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Operator Profile : white flush, I black)
- Device Short Name : ZB5
