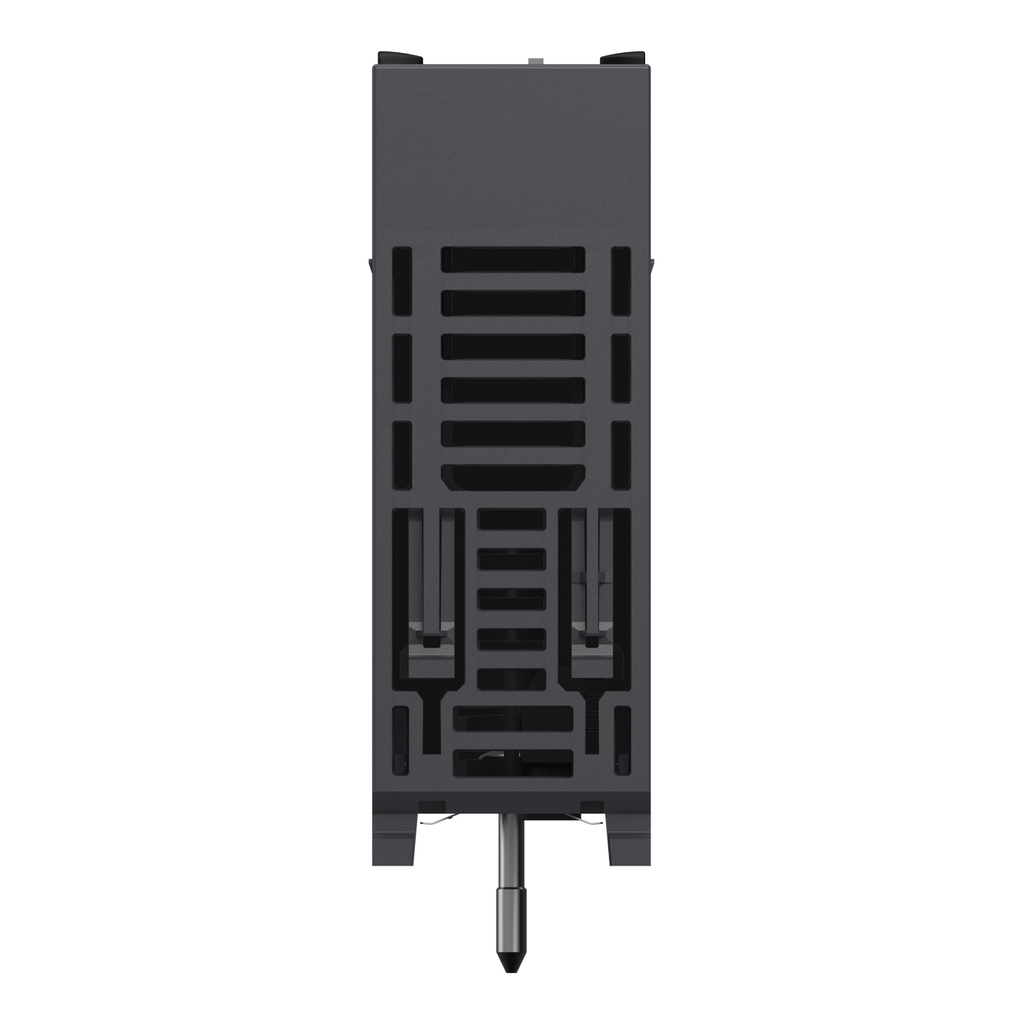

communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

H BUS MODULE 2 RS485/232 PORTS

SQDBMXNOM0200H BMXNOM0200H 3595864027388
1587.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment-2
  • Warranty Length: 18 mth
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, IECEx zone 2/22
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 61850-3, location G, IEC 60079-0
  • Complementary Attributes
    • Integrated Connection Type : RS232 RJ45 115.2 kbit/s 8 wires, RS232 RJ45 115.2 kbit/s 8 wires, RS232 RJ45 115.2 kbit/s 8 wires, RS232 RJ45 115.2 kbit/s 8 wires, RS485 RJ45 57.6 kbit/s 1 twisted pair, RS485 RJ45 57.6 kbit/s 1 twisted pair, RS485 RJ45 57.6 kbit/s 1 twisted pair, RS485 RJ45 57.6 kbit/s 1 twisted pair
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : 80 mA 24 V DC, 80 mA 24 V DC, 80 mA 24 V DC
    • Environmental Characteristic : gas resistant class Gx ISA S71.04, gas resistant class Gx ISA S71.04, gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, gas resistant class 3C4 IEC 60721-3-3, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, salt resistant level 2 IEC 68252, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, mold growth resistant class 3B2 IEC 60721-3-3, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2, hazardous location class I division 2
    • Local Signalling : 1 LED (red) for module fault (ERR), 1 LED (red) for module fault (ERR), 1 LED (red) for module fault (ERR), 1 LED (green) for module running (RUN), 1 LED (green) for module running (RUN), 1 LED (green) for module running (RUN), 1 LED (green) for activity on the serial link (SER COM 0), 1 LED (green) for activity on the serial link (SER COM 0), 1 LED (green) for activity on the serial link (SER COM 0), 1 LED (green) for activity on the serial link (SER COM 1), 1 LED (green) for activity on the serial link (SER COM 1), 1 LED (green) for activity on the serial link (SER COM 1)
    • Carbon Footprint Of The Distribution Phase A4 : 0.0299453281, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.368546875
    • Carbon Footprint Of The Installation Phase A5 : 0.0911616797, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 16 kg CO2 eq., 15.597046875
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 86 kg CO2 eq., 85.6203636364
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-10
    • HTML Description : Harshed serial link module with 2 RS-485/232 ports in Modbus and Character mode
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 229.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : serial links module
    • Product Specific Application : for severe environments
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 102 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation, 10-95 % without condensation
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 101.7070643942
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • Packaging Made With Recycled Cardboard : Yes
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : serial links module
    • Range Of Product : Modicon X80
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
