frequency module, Modicon X80, turbomachinery, input 2 channels, hardened

TURBOMACHINERY FREQUENCY INPUT

SQDBMXETM0200H BMXETM0200H 3606480915765
1735.67 / EA
http://schema.org/OutOfStock

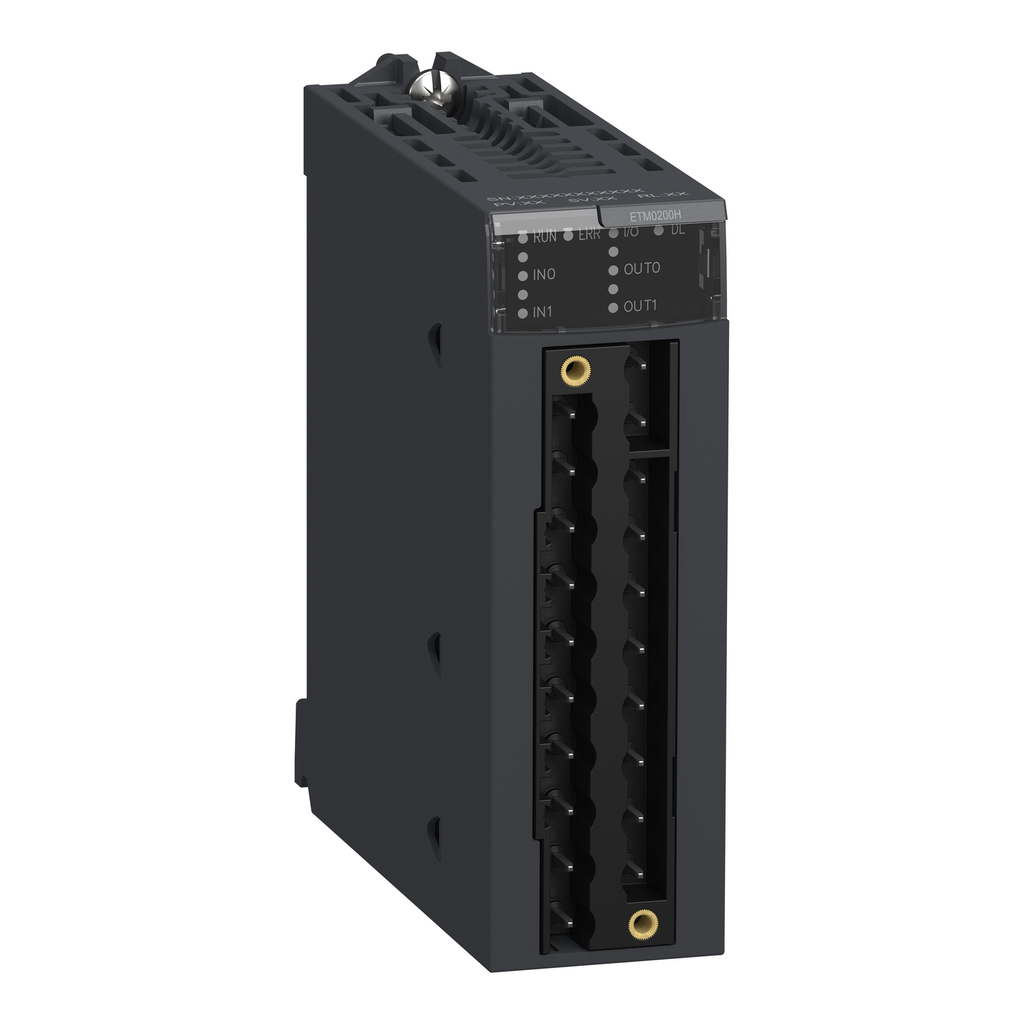

Mayer-DDS-frequency module, Modicon X80, turbomachinery, input 2 channels, hardened-1
  • Input Voltage: 100 V, 24 V
  • Number of Outputs: 2
  • Output Voltage: 24 V
This turbonmachinery frequency input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. The BMXETM0200H frequency input module offers turbine shaft and engine speed monitoring functionality for general purpose turbomachinery control applications. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This frequency module for turbo machine is equipped with 2 discrete inputs and 2 reflex digital outputs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.124kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This adaptor is compatible with Modicon M580 BMEP58XX40(S), Modicon M580 BMEH58XX40(S) and Quantum processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Load Current : 1 A per module, 0.5 A per output
    • Maximum Voltage Drop : <3 V at state 1, <3 V at state 1<3 V at state 1, <3 V at state 1
    • Maximum Leakage Current : 0.1 mA at state 0
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor<= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor
    • Environmental Characteristic : gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
    • Isolation Voltage : 1400 V DC 1 min field/bus or ground, 1000 V DC 1 min differential interfaces, 1000 V DC 1 min input/output
    • Voltage State 0 Guaranteed : < 0.3 V, < 0.3 V
    • Voltage State 1 Guaranteed : MPU 0.3...100 V AC, APU 2.5...30 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.021576, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.29278
    • Carbon Footprint Of The Installation Phase A5 : 0.043936, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.082
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 56 kg CO2 eq., 56.2860586592
    • Certificate Agency : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 21.082
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2438
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Cycle Time : 1 ms
    • Device Application : speed and frequency control
    • Electrical Connection : connector 28 pins
    • Function Available : compare
    • Module Format : standard
    • Number Of Channels : 2
    • Overlap Time : 0.2 ms
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Destination : turbo machine
    • Product Or Component Type : frequency module
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : No
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 78 kg CO2 eq.
    • Type Of Measurement : frequency
    • Warranty In Months : 18
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 86.3298
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Recyclability Potential, In % : 3
    • Offer Owner Code : 190786
    • Pn : 1
    • Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 21.062
    • Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 21.082
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 249.6
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 2.2102
    • Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 267.09
    • Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 86.541
    • Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 101.02
    • Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 44586
    • Materials For Recycling (Kg) Installation [A5] : 0.006
    • Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 0.1361
    • Net Use Of Fresh Water (M3) End Of Life [C1-c4] : 11553
    • Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 56586
    • Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -0.1723
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 249.6
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 22102
    • Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 258.99
    • Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 24029
    • Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -0.5349
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 93911
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 0.1927
    • Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 27309
    • Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 27309
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 246.87
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 22102
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 87289
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 0.1927
    • Water Use (M3 Eq) Manufacturing [A1-a3] : 58454
    • Water Use (M3 Eq) End Of Life [C1-c4] : 44137
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    • Product Compatibility : M340 PLC, M580 PLC
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 77.7263506592
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : frequency module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001422
    • ETIM 9 : EC001422
  • Output Attributes
    • Discrete Output Logic : positive logic (source)
    • Number Of Outputs : 2
    • Output Overload Protection : integrated
    • Output Short Circuit Protection : 1.5 A integrated
    • Output Type : reflex digital output
    • Output Voltage : 24 V DC
    • Output Voltage Limits : 19.2...30 V
  • Input Attributes
    • Input Compatibility : 19.2-30 V incremental encoder, active pick-up sensor, 10...30 V totem pole, magnetic pick-up sensor
    • Input Voltage : 24 V DC, 100 V AC
    • Input Voltage Limits : 19.2...30 V at 60 °C, 26.4 V at 70 °C
    • Number Of Inputs : 2-2 MPU), 2-2 APU)
    • Input Frequency : 0-500 kHz
    • Input Type : high speed
  • Specifications
    • Country of Origin : Brazil, France, Sweden, United States
