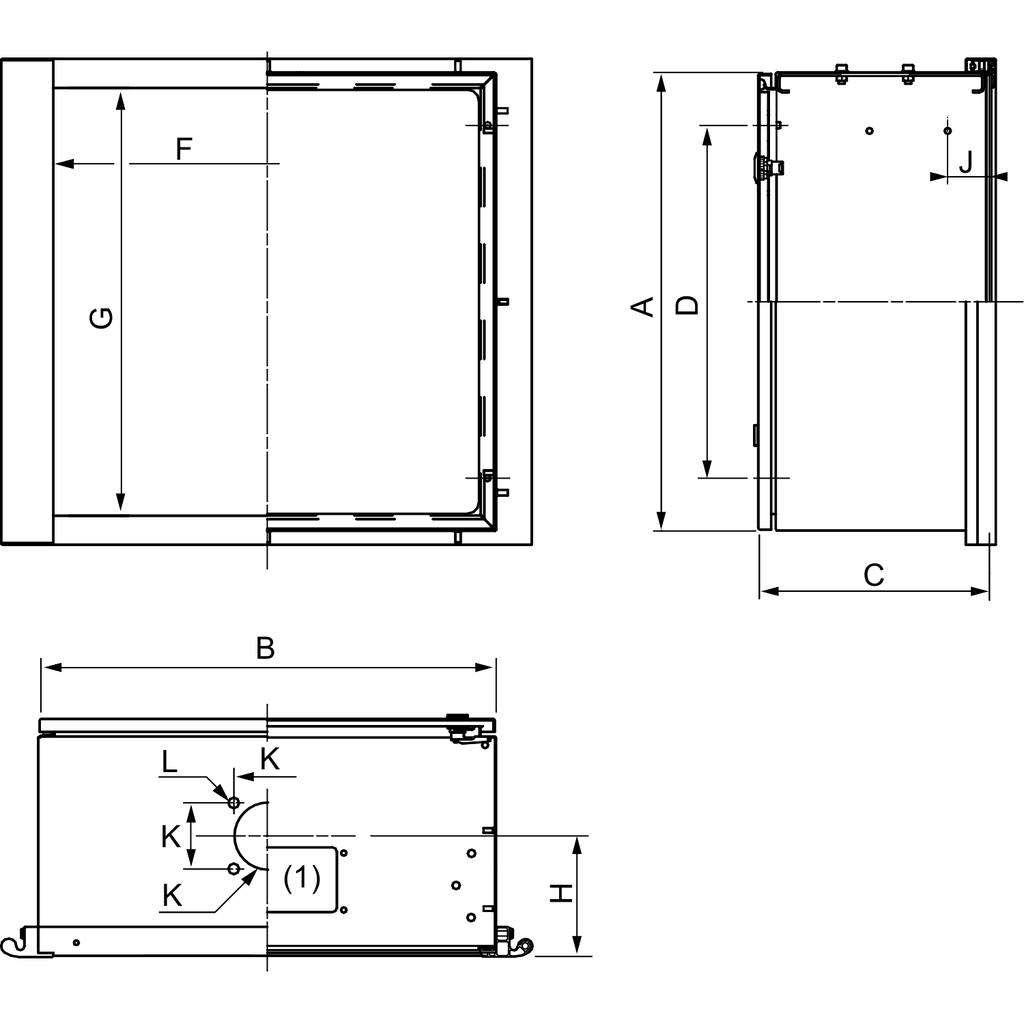

Spacial S3CM suspension system steel enclosure with trim frame aluminium. 400 x 400 x 200 mm. Human-machine dialogue application. Single piece body, without mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 54, IK10, Enclosure grey RAL 7035, front face grey RAL 7040.

• Physical Attributes
• Color : enclosure Gray RAL 7035), front face Gray RAL 7040)
• Enclosure Nominal Height : 400 mm
• Enclosure Nominal Width : 400 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 body, 1 door with lock, 2 rail, 1 reinforcement plate, 1 front trim frame
• Material : enclosure and front face steel, trim frame aluminium
• Removable Parts : door by hinges, trim frame by screws, 2 rails by screws
• Carbon Footprint Of The Distribution Phase A4 : 20.170878465512203, 20 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 24 kg CO2 eq., 23.93547818190648
• Carbon Footprint Of The Installation Phase A5 : 2.001693175613632, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 50 kg CO2 eq., 49.60718611230082
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Door Opening Side : reversible 120 °)
• Energy Efficiency Optimized : False
• Installation Accessory Type : suspension system
• Number Of Doors : rear 1
• Package Weight Lbs : 10.160 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : control enclosure
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 96 kg CO2 eq.
• Type Of Gland Plate : without gland plate
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1001004EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : JULES BARBALONGA
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 95.71523593533314
• Environmental Disclosure : ENVPEP1001004EN
• IP Degree Of Protection : IP54 IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : control enclosure
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
