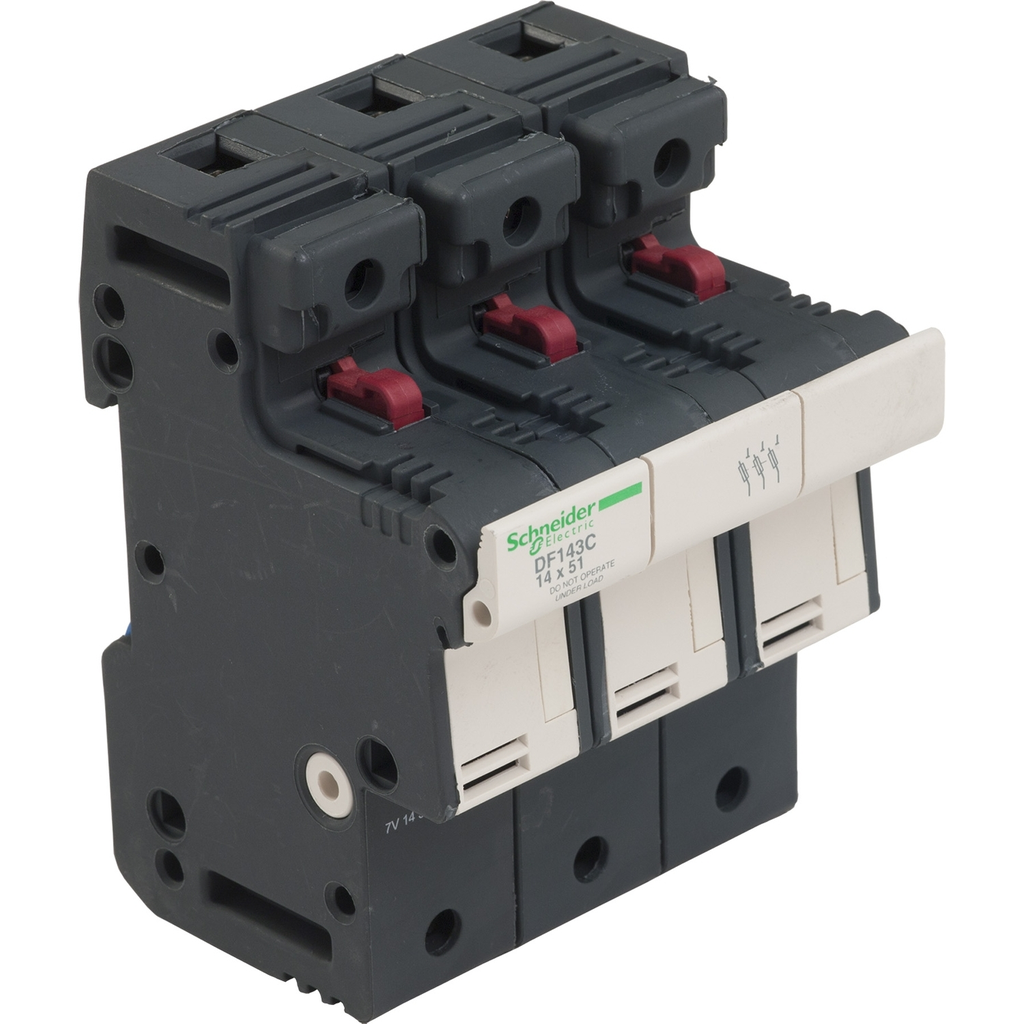

Fuse carrier TeSys DF, 3P 50A, fuse size 14x51 mm

FUSEHOLDER 600V 50AMP 3POLES 1

SQDDF143C DF143C 785901667841
72.89 / EACH
  • Certifications: CSA, EAC, IEC, UL Recognized
  • Depth: 76.5 mm
  • Fuse Type: AM, GG
  • Height: 110.8 mm
  • Net Weight: 0.42 kg
  • Standard: CSA C22.2 No 4248-1, EN/IEC 60269-2, EN/IEC 60947-3, UL 4248-1
  • Storage Temperature: -40-80 °C
  • Warranty Length: 18 mth
  • Width: 79 mm
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
  • Product Description
  • Specifications
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
  • Specifications
    • Fuse Size : 14 x 51 mm
    • [Ue] Rated Operational Voltage : 690 V AC || 690 V DC
    • Fuse Type : , aM || , gG
    • Product Or Component Type : fuse carrier
    • Product Name : TeSys DF
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV
    • Range : TeSys
    • Short-Circuit Withstand : 120 kA 400 V IEC 60947-3 || 120 kA 500 V IEC 60947-3 || 80 kA 690 V IEC 60947-3
    • [Ui] Rated Insulation Voltage : 690 V AC
    • Product Compatibility : DF3EA fuse cartridge striker || DF3EN fuse cartridge striker || DF14AM auxiliary contact block
    • [Ie] Rated Operational Current : 50 A
    • Control Type : toggle
    • Poles Description : 3P
    • [Ipk] Rated Peak Withstand Current : 15 kA with tubular links IEC 60269-1
    • Device Short Name : DF14
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Height : 110.8 mm
    • Mounting Support : 35 mm symmetrical DIN rail
    • Standards : EN/IEC 60947-3 || EN/IEC 60269-2 || UL 4248-1 || CSA C22.2 No 4248-1
    • Product Certifications : IEC || UL Recognized || CSA || EAC
    • Connections - Terminals : screw clamp terminals 1 2.5-25 mm²rigid || screw clamp terminals 2 2.5-10 mm²rigid || screw clamp terminals 1 2.5-25 mm²flexible with or without || screw clamp terminals 2 2.5-10 mm²flexible with or without
    • Net Weight : 0.42 kg
    • Mounting Position : vertical +/- 23°)
    • Tightening Torque : 3.5 N.m
    • Quantity Per Set : set of 2
    • Width : 79 mm
    • Depth : 76.5 mm
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2010021EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Eu Rohs Directive : Compliant
  • Environment
    • Ambient Air Temperature For Operation : -20-60 °C with derating above 20°C
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-80 °C
    • Protective Treatment : TH
    • Compatibility Code : DF14
    • Fire Resistance : 960 °C IEC 60695-2-1
