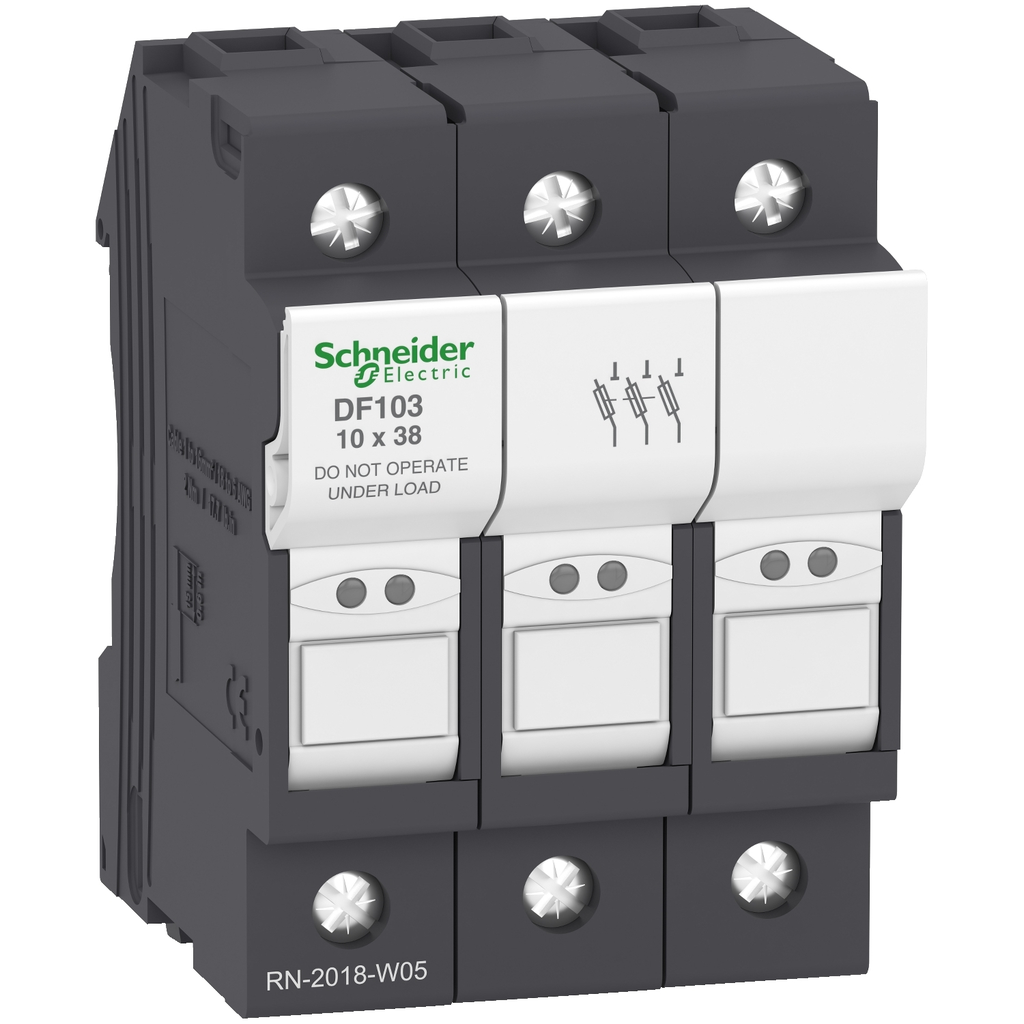

Fuse carrier TeSys DF, 3P 32A, fuse size 10x38 mm

FUSEHOLDER 600V 30AMP 3POLES 1

SQDDF103 DF103 785901584056
26.87 / EACH
  • Certifications: CCC, CSA, DNV-GL, EAC, IEC, UL Recognized
  • Depth: 61 mm
  • Fuse Type: AM, GG
  • Height: 79.5 mm
  • Net Weight: 0.126 kg
  • Standard: CSA C22.2 No 4248-1, EN 45545-2: R22 HL2, EN/IEC 60269-2, EN/IEC 60947-3, UL 4248-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 52.5 mm
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
  • Product Description
  • Specifications
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
  • Overvoltage Category : III
  • Fuse Size : 10 x 38 mm
  • Range : TeSys
  • Device Short Name : DF10
  • [Ue] Rated Operational Voltage : 690 V AC || 690 V DC
  • Fuse Type : , gG || , aM
  • Product Name : TeSys DF
  • Control Type : toggle padlockable
  • Short-Circuit Withstand : 120 kA 400 V IEC 60947-3 || 120 kA 500 V IEC 60947-3
  • [Ith] Conventional Free Air Thermal Current : 32 A 20 °C
  • Utilisation Category : AC-20B IEC 60947-3 || DC-20B IEC 60947-3
  • Product Or Component Type : fuse carrier
  • Power Dissipation In W : 3 W maximum power dissipation by fuse
  • [Ui] Rated Insulation Voltage : 690 V AC
  • Product Compatibility : DF2CA fuse cartridge || DF2CN fuse cartridge
  • [Ie] Rated Operational Current : 32 A 400 V AC
  • Poles Description : 3P
  • [Uimp] Rated Impulse Withstand Voltage : 6 kV
  • Offer Sustainability
    • California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP2010021EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Mercury Free : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Quantity Per Set : set of 4
    • Product Certifications : IEC || UL Recognized || CSA || CCC || EAC || DNV-GL
    • Standards : EN/IEC 60947-3 || EN/IEC 60269-2 || UL 4248-1 || CSA C22.2 No 4248-1 || EN 45545-2: R22 HL2
    • Net Weight : 0.126 kg
    • Width : 52.5 mm
    • Connections - Terminals : screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
    • Depth : 61 mm
    • Height : 79.5 mm
    • Mounting Support : 35 mm symmetrical DIN rail
    • Mounting Position : vertical +/- 23°)
    • Tightening Torque : 2.2 N.m PZ2 || 2.2 N.m flat Ø 5.5 mm
  • Environment
    • Pollution Degree : 3
    • Fire Resistance : 960 °C IEC 60695-2-1
    • Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Compatibility Code : DF10
    • Ip Degree Of Protection : IP20
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
