Fuse carrier TeSys DF, 3P 30A, fuse class CC, blown fuse indicator

Fuse carrier TeSys DF, 3P 30A, fuse class CC, blown fuse indicator

SQDDFCC3V DFCC3V 785901628057
59.72 / EA
  • Certifications: CSA, UL Recognized
  • Depth: 61 mm
  • Fuse Type: CC
  • Height: 79.5 mm
  • Net Weight: 0.126 kg
  • Standard: CSA C22.2 No 4248-1, CSA C22.2 No 4248-4, UL 4248-1, UL 4248-4
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 52.5 mm

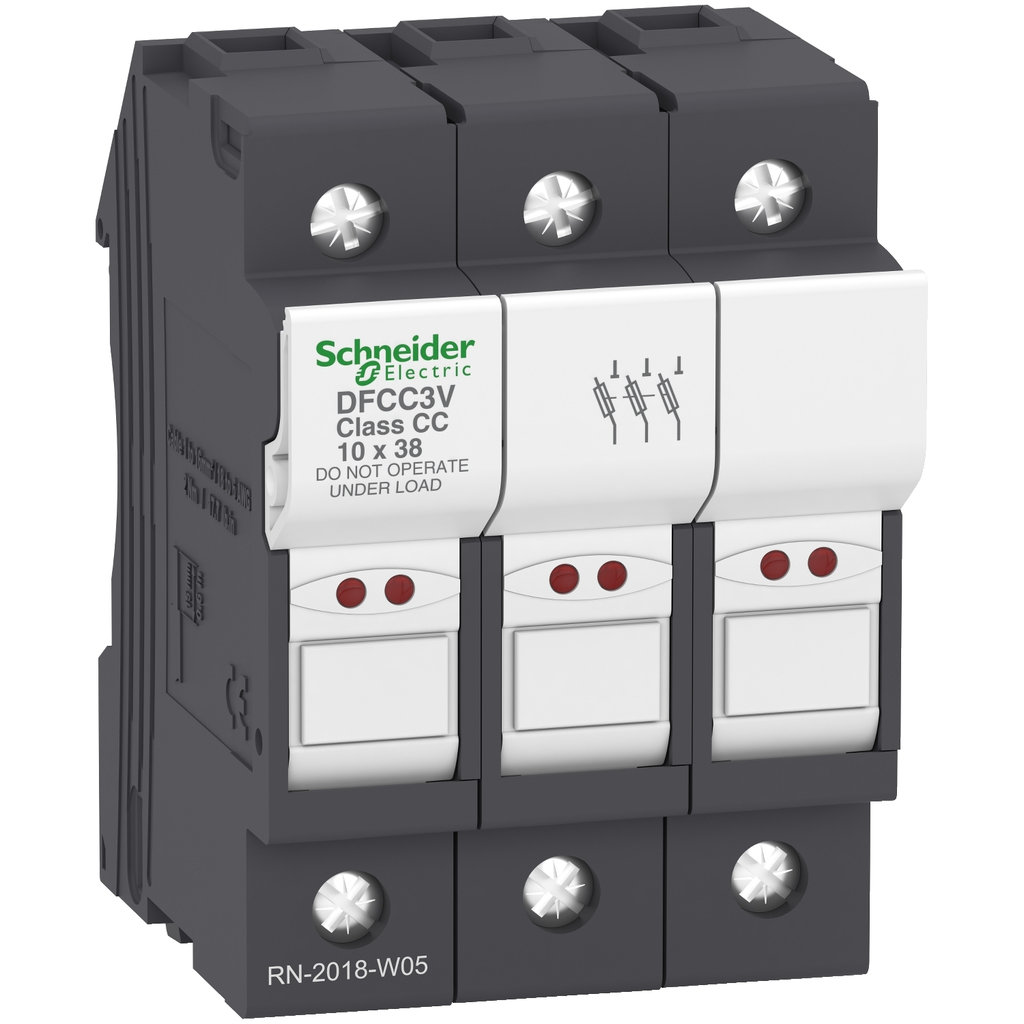

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).
  • Product Description
  • Specifications
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).
  • Offer Sustainability
    • Eu Rohs Directive : Compliant
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP2010021EN
  • Environment
    • Fire Resistance : 960 °C IEC 60695-2-1
    • Ip Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m) without derating
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C
    • Compatibility Code : DFCC
    • Pollution Degree : 3
  • Control Type : toggle padlockable
  • [Ue] Rated Operational Voltage : 600 V AC
  • Product Name : TeSys DF
  • Short-Circuit Withstand : 200 kA 600 V UL 512
  • Fuse Type : , CC
  • Device Short Name : DFCC
  • Range : TeSys
  • Power Dissipation In W : 3 W maximum power dissipation by fuse
  • Product Or Component Type : fuse carrier
  • [Ui] Rated Insulation Voltage : 600 V AC
  • Poles Description : 3P
  • [Uimp] Rated Impulse Withstand Voltage : 6 kV
  • Utilisation Category : AC-20B IEC 60947-3
  • Local Signalling : blown fuse indication
  • [Ie] Rated Operational Current : 30 A
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Product Certifications : UL Recognized || CSA
    • Mounting Position : vertical +/- 23°)
    • Mounting Support : 35 mm symmetrical DIN rail
    • Maximum Width : 52.5 mm
    • Tightening Torque : 2 N.m PZ2 || 2 N.m flat Ø 5.5 mm
    • Connections - Terminals : screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
    • Net Weight : 0.126 kg
    • Maximum Height : 79.5 mm
    • Standards : UL 4248-1 || UL 4248-4 || CSA C22.2 No 4248-1 || CSA C22.2 No 4248-4
    • Maximum Depth : 61 mm
    • Quantity Per Set : set of 6
