Fuse carrier, TeSys DF, 2P, 30A, 600VAC, fuse class CC

FUSEHOLDER 600V 30AMP 2POLES C

SQDDFCC2 DFCC2 3389119407274
49.79 / EA
http://schema.org/OutOfStock

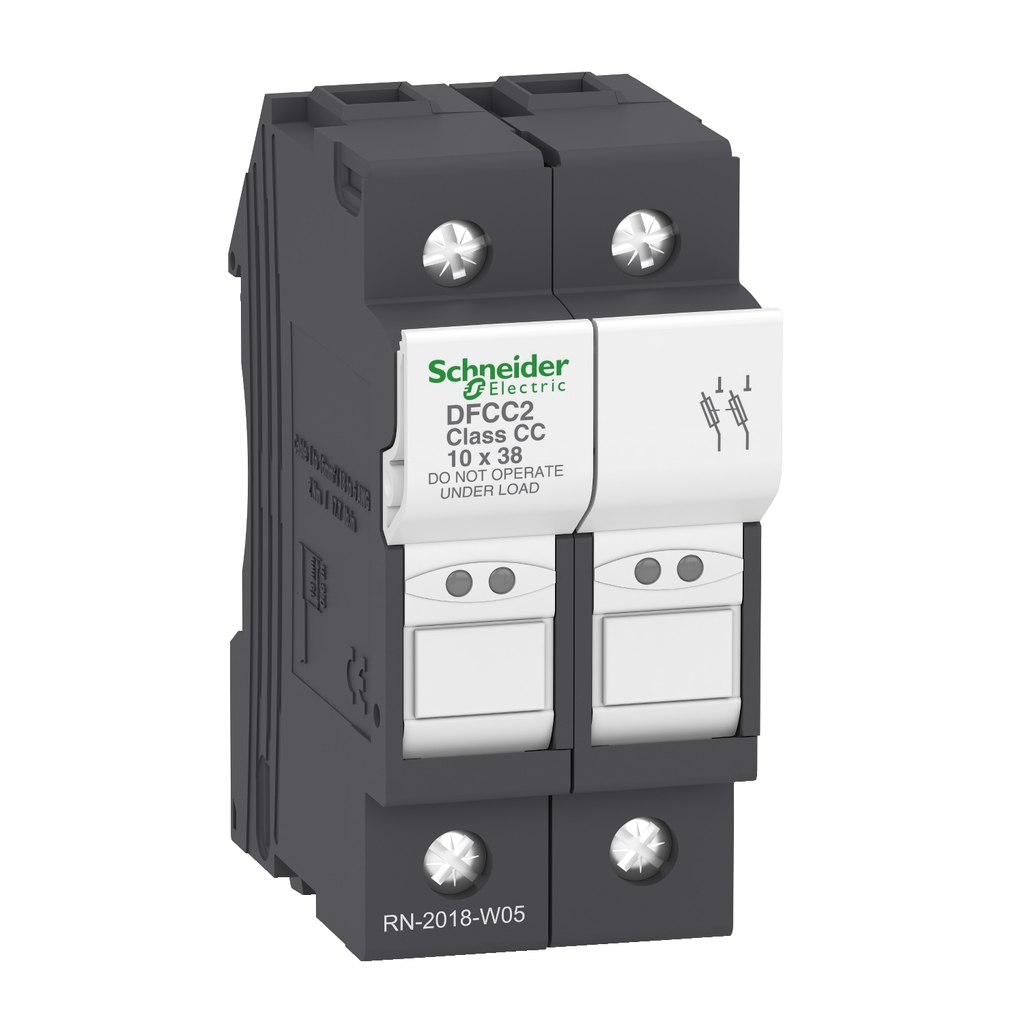

Mayer-DDS-Fuse carrier, TeSys DF, 2P, 30A, 600VAC, fuse class CC-1
  • Fuse Type: CC
  • Warranty Length: 18 mth
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).
QTY
  • Product Description
  • Features
  • Specifications
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Recognized, CSA
    • Standards : UL 4248-1, UL 4248-4, CSA C22.2 No 4248-1, CSA C22.2 No 4248-4
  • Complementary Attributes
    • Short Circuit Withstand : 200 kA 600 V UL 512, 200 kA 600 V UL 512, 200 kA 600 V UL 512
    • UE Rated Operational Voltage : 600 V AC, 600 V AC
    • UI Rated Insulation Voltage : 600 V AC, 600 V AC
    • IE Rated Operational Current : 30 A
    • UIMP Rated Impulse Withstand Voltage : 6 kV
  • Important Information Attributes
    • Control Type : toggle padlockable, toggle padlockable
    • Fire Resistance : 960 °C IEC 60695-2-1, 960 °C IEC 60695-2-1
    • Mounting Position : vertical +/- 23°), vertical +/- 23°)
    • Power Dissipation In W : 3 W maximum power dissipation by fuse, 3 W maximum power dissipation by fuse
    • Short Circuit Withstand : 200 kA 600 V UL 512, 200 kA 600 V UL 512, 200 kA 600 V UL 512
    • Tightening Torque : 2 N.m PZ2, 2 N.m PZ2, 2 N.m flat Ø 5.5 mm, 2 N.m flat Ø 5.5 mm
    • Utilisation Category : AC-20B IEC 60947-3, AC-20B IEC 60947-3
    • Carbon Footprint Of The Distribution Phase A4 : 0.030616666666666664, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.008873333333333332
    • Carbon Footprint Of The Installation Phase A5 : 0.00024566666666666666, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.9 kg CO2 eq., 0.9276666666666666
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 kg CO2 eq., 1.85
    • Connections Terminals : screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 1 1-16 mm²flexible with or without, screw clamp terminals 1 1-16 mm²flexible with or without, screw clamp terminals 1 1-16 mm²flexible with or without, screw clamp terminals 1 1-16 mm²flexible with or without, screw clamp terminals 1 1-16 mm²flexible with or without, screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 2 1-6 mm²flexible with or without
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-12
    • HTML Description : Fuse carrier TeSys DFPoles description : 2PSystem Voltage : 600 V AC Rated operational current : 30 ARated insulation voltage : 600 V ACRated impulse withstand voltage : 6 kV
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV fuse - disconnector
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : DFCC
    • Device Short Name : DFCC
    • Energy Efficiency Optimized : False
    • Fuse Type : , CC
    • Package Weight Lbs : 88.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fuse carrier
    • Range : TeSys
    • Range Of Product : TeSys fuse carriers
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • IE Rated Operational Current : 30 A
    • Pep Code : ENVPEP2010021EN
    • Pep Verification Date : 2020-10-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    • EU ROHS Directive : Compliant​, Compliant
    • Operating Altitude : 0...6561.68 ft (0...2000 m) without derating, 0...6561.68 ft (0...2000 m) without derating
    • Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2.8174023333333333
    • Ambient Air Temperature For Storage : -40-70 °C
    • Environmental Disclosure : ENVPEP2010021EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Pep Code : ENVPEP2010021EN
    • Pep Verification Date : 2020-10-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : fuse carrier
    • Range Of Product : TeSys fuse carriers
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
