Floor standing enclosure polyester vers.PLA completely sealed 750x750x320 IP65

7035 FS pol 750x750x320

SQDNSYPLA773G NSYPLA773G 360648077511
0.00 / EA
  • Certifications: DNV Marine, UL/cUL Listed, Veritas
  • Material: Fiberglass, Polyester
  • Standard: IEC 62208, UL 508 A
  • Storage Temperature: -35-90 °C

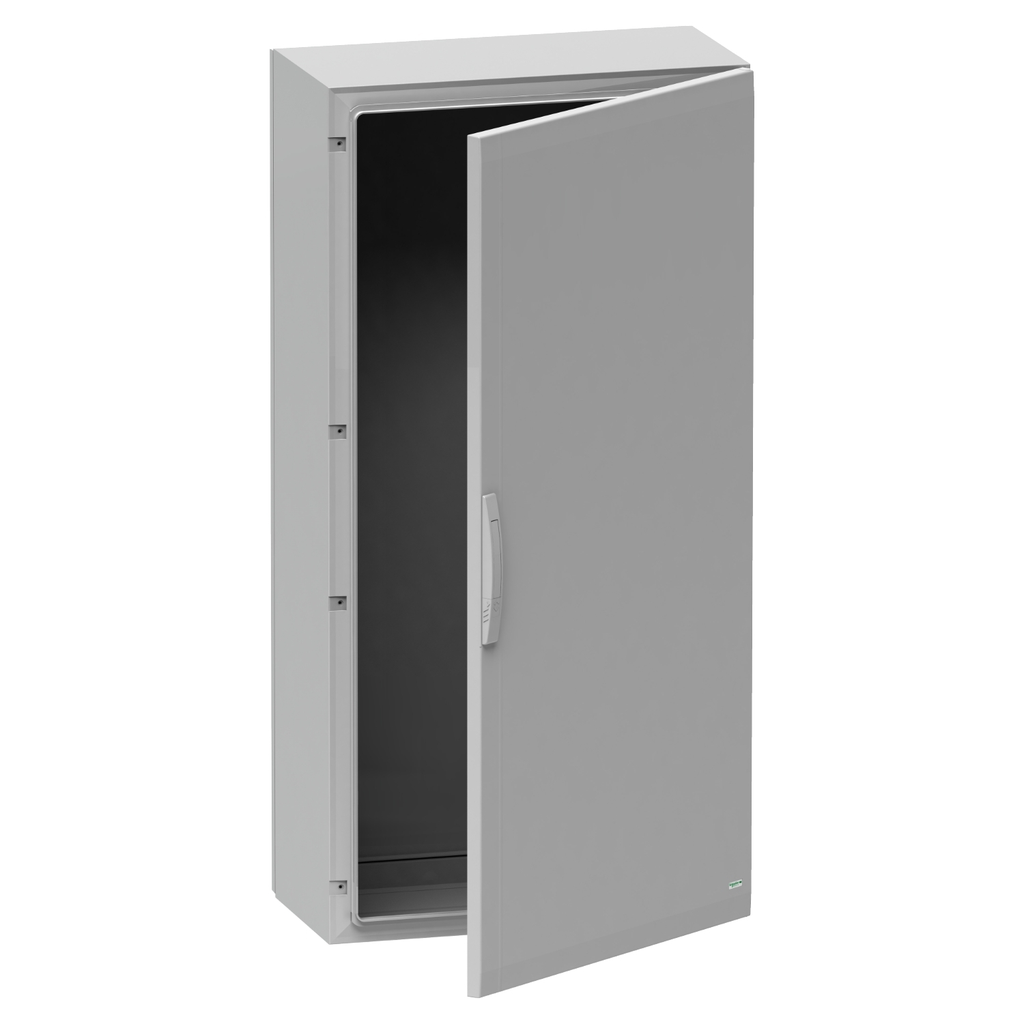

Thalassa PLA floor standing polyester enclosure. 750x 750x 320 mm. Sealed top and bottom part, assembled with side parts. 2 points lock, 5 mm double-bar insert. 1 door. Reversible 120° opening. Accessible front and rear. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
  • Product Description
  • Specifications
Thalassa PLA floor standing polyester enclosure. 750x 750x 320 mm. Sealed top and bottom part, assembled with side parts. 2 points lock, 5 mm double-bar insert. 1 door. Reversible 120° opening. Accessible front and rear. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
  • Environment
    • Ip Degree Of Protection : IP65 IEC 60529 completely sealed)
    • Fire Resistance : 960 °C IEC 62208
    • Ambient Air Temperature For Storage : -35-90 °C
    • Ik Degree Of Protection : IK10 IEC 62262 plain door)
  • Complementary
    • Lock Type : 2 points lock, 5 mm double-bar
    • Accessibility For Operation : rear || front
    • Electrical Insulation Class : class II
    • Color : Gray RAL 7035)
    • Standards : UL 508 A || IEC 62208
    • Product Certifications : Veritas || UL/cUL listed || DNV Marine
    • Material : polyester reinforced with fibreglass
    • Body Type : sealed top and bottom part assembled with side parts
    • Removable Parts : door by hinges || rear panel by fixing element
    • Number Of Doors : 1
    • Door Type : Solid front
    • Door Opening Side : reversible 120 °)
    • Nema Degree Of Protection : NEMA 3S || NEMA 1 || NEMA 2 || NEMA 3 || NEMA 12 || NEMA 5 || NEMA 3X || NEMA 3R || NEMA 13
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP110505EN
  • Device Application : multi-purpose
  • Enclosure Nominal Depth : 320 mm
  • Device Short Name : PLA
  • Enclosure Nominal Height : 750 mm
  • Device Composition : 1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door
  • Enclosure Nominal Width : 750 mm
  • Enclosure Mounting : floor-standing
  • Product Name : Thalassa PLA
  • Product Or Component Type : suitable enclosure
  • Range : Thalassa
