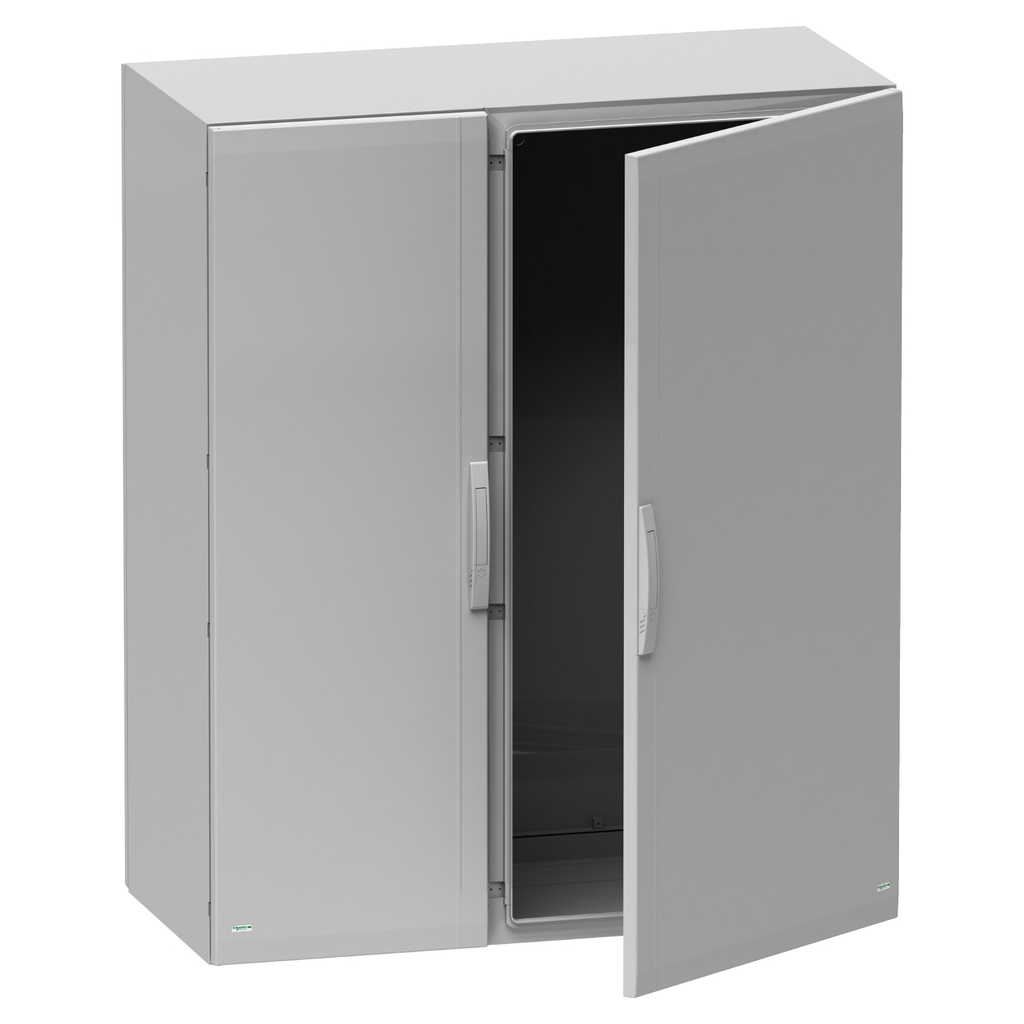

This PLA version of the PanelSeT PLA is a versatile, floor-standing enclosure that is suitable for various applications. It has a nominal height of 1500mm, a width of 1000mm, and a depth of 320mm. It is made of polyester reinforced with fiberglass, provi

• Carbon Footprint Of The Installation Phase A5
• 20.212468437127196
• 20 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 109 kg CO2 eq.
• 109.4157676741394
• Standards
• UL 508 A
• IEC 62208
• Ip Degree Of Protection
• IP65 IEC 60529 completely sealed)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 218 kg CO2 eq.
• 217.97114729767353
• Nema Degree Of Protection
• NEMA 12
• NEMA 13
• NEMA 2
• NEMA 1
• Removable Parts
• door by hinges
• rear panel by fixing element
• Accessories
• NSYMUPLA153G
• NSYUVPLA
• NSYTJPLA103G
• NSYFMPLA
• NSYZNPLA103G
• NSYAZ3PLA
• NSYSNLPLA
• NSYINS61
• NSYIN2452E1
• NSYCBCMPLAG
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 top part
• 1 bottom part
• 2 side part
• 2 door
• 2 rear panel
• Fire Resistance
• 960 °C IEC 62208
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 119.1193610168044
• 119 kg CO2 eq.
• Door Opening Side
• right and left 120 °)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)
• Door Type
• Solid front
• Product Certifications
• DNV Marine
• UL/cUL listed
• Veritas

• Physical Attributes
• Enclosure Nominal Height : 1500 mm
• Enclosure Nominal Width : 1000 mm
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• ETIM 10 : EC000261
• Manufacturing Carbon Footprint : 217.971147297674
• Distribution Carbon Footprint : 119.119361016804
• Installation Carbon Footprint : 20.2124684371272
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 109.415767674139
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Body Type : sealed top and bottom part assembled with side parts
• Device Application : multi-purpose
• Device Short Name : PLA
• Electrical Insulation Class : class II
• Enclosure Mounting : floor-standing
• Energy Efficiency Optimized : False
• Lock Type : 4 points lock, 5 mm double-bar
• Material : polyester reinforced with fibreglass
• Number Of Doors : 2
• Package Weight Lbs : 60.000 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : suitable enclosure
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 467 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 466.7187444257445
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : suitable enclosure
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=421416044&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 466.718744425744
• Ambient Air Temperature For Storage : -35-90 °C
• Environmental Disclosure : ENVPEP110505EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
