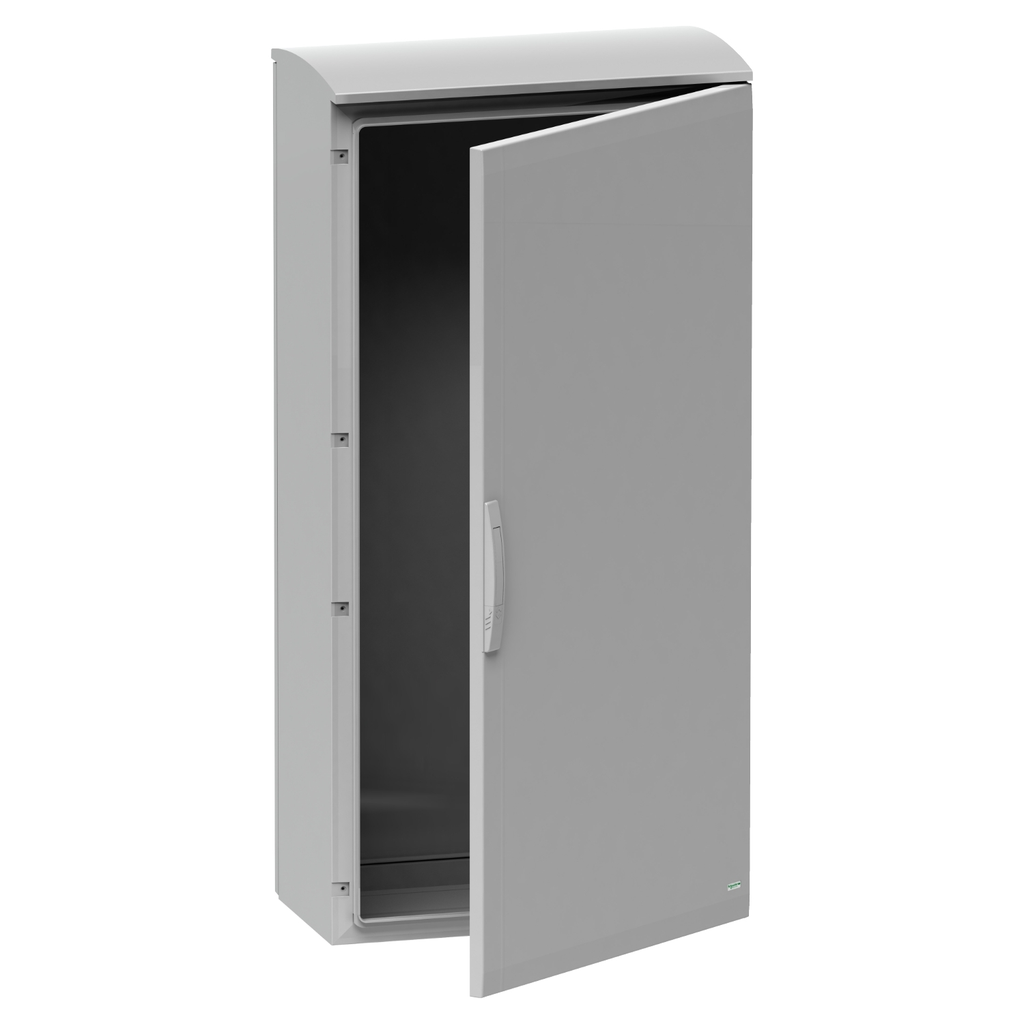

Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 1250x750x620mm, IP44, IK10

7035 FS pol canopy 1250x750x62

SQDNSYPLAT1276G NSYPLAT1276G 3606485434353
915.74 / EA
http://schema.org/OutOfStock
Mayer-DDS-Floor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 1250x750x620mm, IP44, IK10-2
  • Body Type: Open Top And Sealed Bottom Part Assembled With Side Parts
  • Country of Origin: Spain
  • Enclosure Height: 1250 mm
  • Enclosure Width: 750 mm
  • Lock Type: 5 mm
  • Material: Fiberglass, Polyester
  • Number of Doors: 1
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Carbon Footprint Of The Installation Phase A5
    • 15.833100275749636
    • 16 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 86 kg CO2 eq.
    • 85.7090180114092
  • Ip Degree Of Protection
    • IP44 IEC 60529 with ventilated canopy)
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 171 kg CO2 eq.
    • 170.74406538317757
  • Removable Parts
    • door by hinges
    • rear panel by fixing element
    • canopy by fixing element
  • Accessories
    • NSYUVPLA
    • NSYFMPLA
    • NSYZA276G
    • NSYSNLPLA
    • NSYINS61
    • NSYIN2452E1
    • NSYCBCMPLAG
    • NSYPMM127
    • NSYTEX8
    • NSYTVR125
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 top part
    • 1 bottom part
    • 2 side part
    • 1 rear panel
    • 1 door
    • 1 canopy
  • Fire Resistance
    • 960 °C IEC 62208
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 93.31016612983011
    • 93 kg CO2 eq.
  • Door Opening Side
    • reversible 120 °)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Door Type
    • Solid front
  • Physical Attributes
    • Enclosure Nominal Height : 1250 mm
    • Enclosure Nominal Width : 750 mm
  • Conformance Attributes
    • Product Certifications : Veritas
    • Standards : IEC 62208
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 12/12/2024
    • Manufacturing Carbon Footprint : 170.7440654
    • Distribution Carbon Footprint : 93.31016613
    • Installation Carbon Footprint : 15.83310028
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 85.70901801
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2053
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Body Type : open top and sealed bottom part assembled with side parts
    • Device Application : multi-purpose
    • Device Short Name : PLAT
    • Electrical Insulation Class : class II
    • Enclosure Mounting : floor-standing
    • Energy Efficiency Optimized : FALSE
    • Lock Type : 4 points lock, handle with 5 mm double bar insert
    • Material : polyester reinforced with fibreglass
    • Number Of Doors : 1
    • Package Weight Lbs : 47.000 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : suitable enclosure
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 366 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 365.5963498
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : suitable enclosure
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=496321569&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 365.5963498
    • Ambient Air Temperature For Storage : -35-90 °C
    • Environmental Disclosure : ENVPEP110505EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
