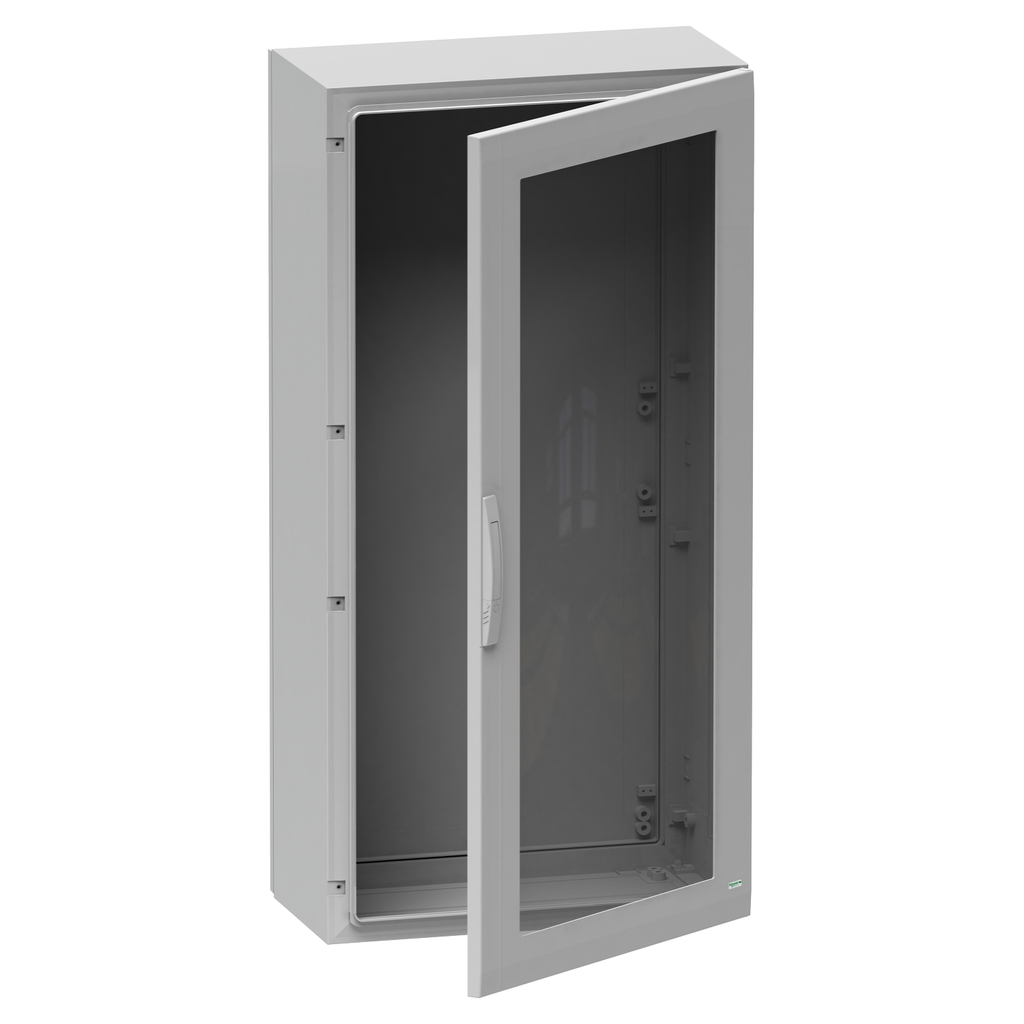

This PLA version of the PanelSeT PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications. It measures 500mm in height, 500mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass. This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor. The enclosure is available in grey (RAL 7035) color and comprises two side parts, one transparent front door, and one rear panel. The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside. The door features a two-point lock with a 5mm double-bar. The rear panel and door can be removed for maintenance purposes. The enclosure offers robust protection against various hazards, including fire, impact, dust, and water. The enclosure offers robust protection against various hazards, including fire, impact, dust, and water. It also has an IK08 rating (IEC 62262), indicating resistance to impacts. It is rated IP65 (IEC 60529), offering complete protection against dust and water. Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL/cUL listed, Veritas, and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance.

• Physical Attributes
• Color : Gray RAL 7035), Gray RAL 7035)
• Enclosure Nominal Height : 500 mm
• Enclosure Nominal Width : 500 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 top part, 1 top part, 1 bottom part, 1 bottom part, 2 side part, 2 side part, 1 rear panel, 1 rear panel, 1 door, 1 door
• Door Opening Side : reversible 120 °), reversible 120 °)
• Door Type : transparent front, transparent front
• Fire Resistance : 960 °C IEC 62208, 960 °C IEC 62208
• Removable Parts : door by hinges, door by hinges, rear panel by fixing element, rear panel by fixing element
• Carbon Footprint Of The Distribution Phase A4 : 28.588646644033055, 29 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 26 kg CO2 eq., 26.259784241793458
• Carbon Footprint Of The Installation Phase A5 : 4.850992424910528, 5 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 52 kg CO2 eq., 52.31307535144165
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Device Short Name : PLA
• Enclosure Mounting : floor-standing
• Energy Efficiency Optimized : False
• Lock Type : 2 points lock, 5 mm double-bar
• Material : polyester reinforced with fibreglass
• Package Weight Lbs : 14.400 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : suitable enclosure
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 112 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1105005EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP65 IEC 60529 completely sealed), IP65 IEC 60529 completely sealed), IP65 IEC 60529 completely sealed)
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 112.01249866217869
• Environmental Disclosure : ENVPEP1105005EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP1105005EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : suitable enclosure
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
