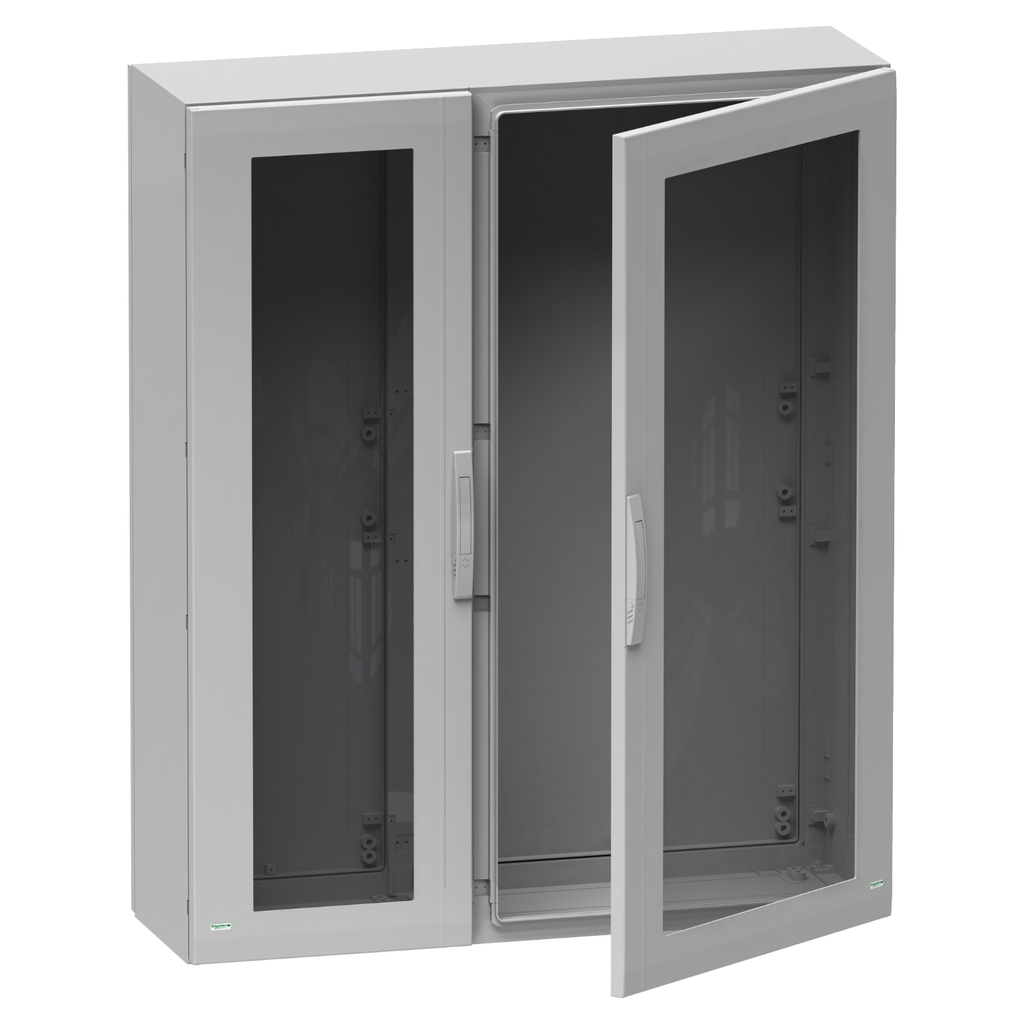

Floor standing encl. polyester vers.PLA compl.sealed 1500x1000x420 IP65 glazed

Floor standing encl. polyester vers.PLA compl.sealed 1500x1000x420 IP65 glazed

SQDNSYPLA15104TG NSYPLA15104TG 360648077470
0.00 / EA
  • Certifications: DNV Marine, UL/cUL Listed, Veritas
  • Material: Fiberglass, Polyester
  • Standard: IEC 62208, UL 508 A
  • Storage Temperature: -35-90 °C
  • Specifications
  • Specifications
    • Enclosure Mounting : floor-standing
    • Product Or Component Type : suitable enclosure
    • Product Name : Thalassa PLA
    • Device Composition : 1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel
    • Enclosure Nominal Height : 1500 mm
    • Enclosure Nominal Depth : 420 mm
    • Device Application : multi-purpose
    • Device Short Name : PLA
    • Enclosure Nominal Width : 1000 mm
    • Range : Thalassa
  • Complementary
    • Product Certifications : UL/cUL listed || DNV Marine || Veritas
    • Accessibility For Operation : front || rear
    • Electrical Insulation Class : class II
    • Removable Parts : door by hinges || rear panel by fixing element
    • Nema Degree Of Protection : NEMA 13 || NEMA 12 || NEMA 1 || NEMA 2
    • Body Type : sealed top and bottom part assembled with side parts
    • Standards : IEC 62208 || UL 508 A
    • Material : polyester reinforced with fibreglass
    • Color : Gray RAL 7035)
    • Door Type : transparent front
    • Lock Type : 4 points lock, 5 mm double-bar
    • Door Opening Side : right and left 120 °)
    • Number Of Doors : 2
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110505EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Environment
    • Ik Degree Of Protection : IK08 IEC 62262 glazed door)
    • Ambient Air Temperature For Storage : -35-90 °C
    • Ip Degree Of Protection : IP65 IEC 60529 completely sealed)
    • Fire Resistance : 960 °C IEC 62208
