fiber converter module;Modicon X80;single mode

FIBER CONVERTER SM/LC 2CH 100M

SQDBMXNRP0201 BMXNRP0201 3595864144467
785.82 / EA
http://schema.org/OutOfStock

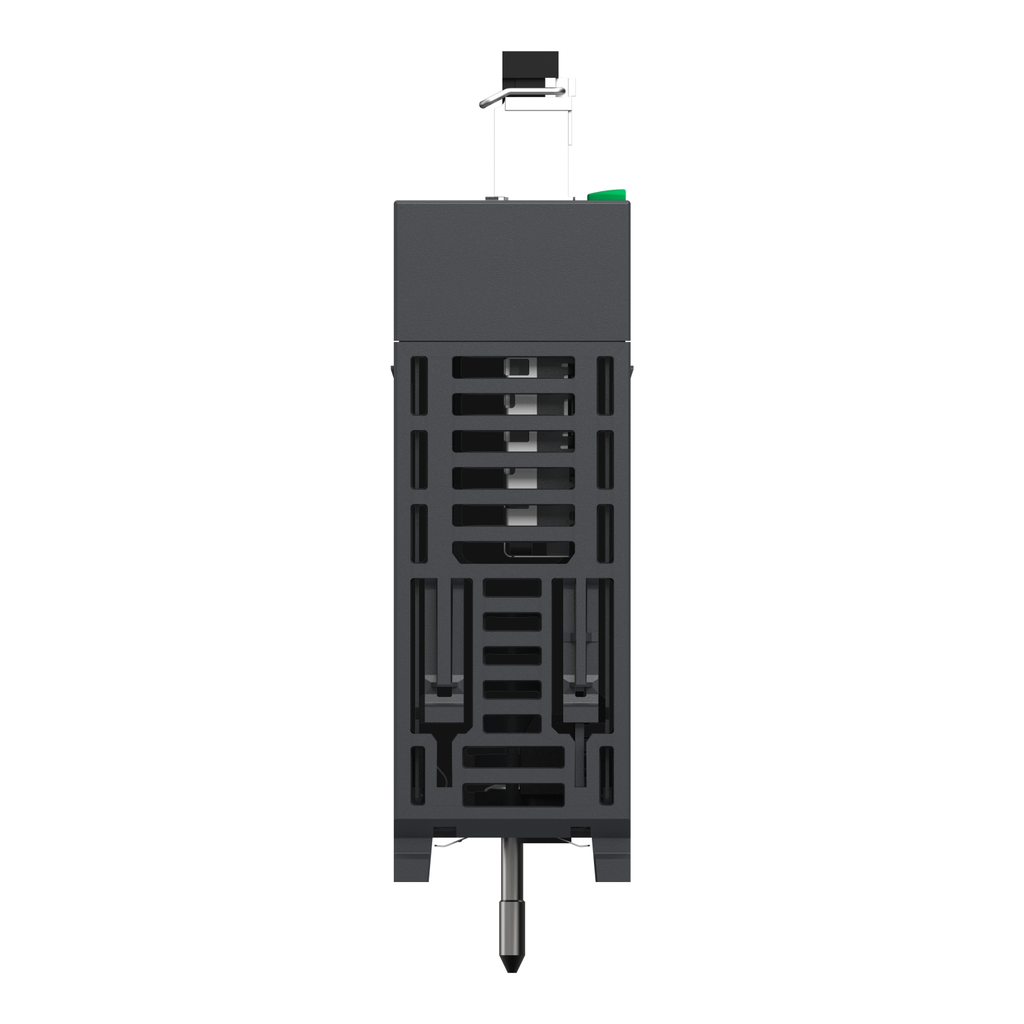

Mayer-DDS-fiber converter module;Modicon X80;single mode-2
  • Dielectric Strength: 1400 V, 500 V
  • Warranty Length: 18 mth
This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CE, RCM, CSA, EAC, Merchant Navy, UL
    • Standards : IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Attenuation : -15--8 dB 9/125 µm), -15--8 dB 9/125 µm)
    • Current Consumption : 140 mA typical, 140 mA typical, 200 mA maximum, 200 mA maximum
    • Dielectric Strength : 1400 V DC between field and bus, 1400 V DC between field and bus, 1400 V DC between field and bus, 500 V DC between channels, 500 V DC between channels, 500 V DC between channels
    • Local Signalling : 1 LED (green) for power supply status, 1 LED (green) for power supply status, 1 LED (green) for power supply status, 1 LED (red) for error condition (ERR), 1 LED (red) for error condition (ERR), 1 LED (red) for error condition (ERR), 2 LEDs (green) for link status, 2 LEDs (green) for link status, 2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity, 2 LEDs (green) for fiber port state and activity, 2 LEDs (green) for fiber port state and activity
    • Number Of Port : 2 RJ45 100BASE-TX IEEE 802.3u, 2 RJ45 100BASE-TX IEEE 802.3u, 2 RJ45 100BASE-TX IEEE 802.3u, 2 RJ45 100BASE-TX IEEE 802.3u, 2 fiber optic 100BASE-FX IEEE 802.3u, 2 fiber optic 100BASE-FX IEEE 802.3u, 2 fiber optic 100BASE-FX IEEE 802.3u, 2 fiber optic 100BASE-FX IEEE 802.3u
    • Carbon Footprint Of The Distribution Phase A4 : 0.0326914062, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.40234375
    • Carbon Footprint Of The Installation Phase A5 : 0.0995214844, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 17.02734375
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 150 kg CO2 eq., 149.8356363636
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : Fiber Converter SM/LC 2CH 100Mb
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Optic Fiber Type : single mode
    • Package Weight Lbs : 250.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fibre optic repeater
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Rise Fall Time : 2.5 ns
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 167 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 167.3975367543
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • Packaging Made With Recycled Cardboard : Yes
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : fibre optic repeater
    • Range Of Product : Modicon X80
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
