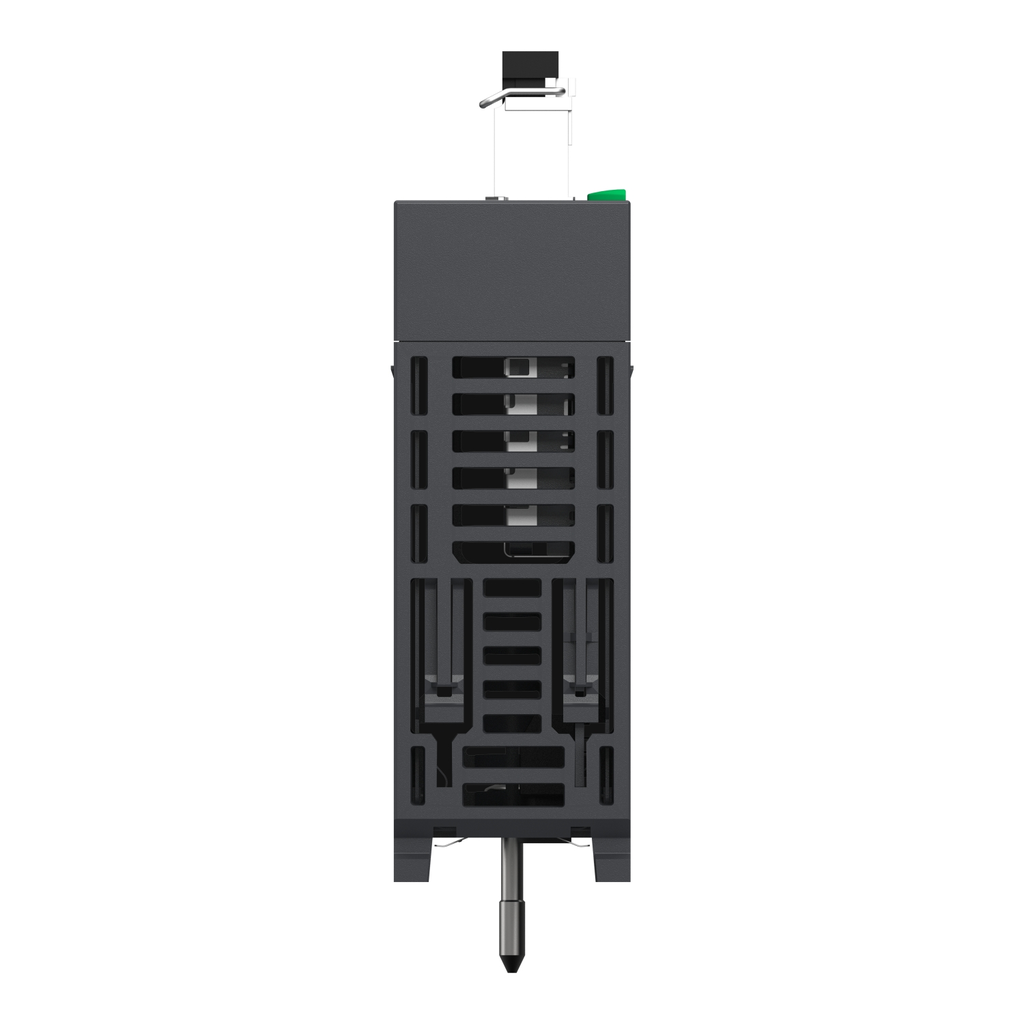

fiber converter module;Modicon X80;multimode

FIBER CONVERTER MM/LC 2CH 100M

SQDBMXNRP0200 BMXNRP0200 3595864142753
662.71 / EA
http://schema.org/OutOfStock
Mayer-DDS-fiber converter module;Modicon X80;multimode-2
  • Country of Origin: France
  • Warranty Length: 18 mth
This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Current Consumption
    • 140 mA typical
    • 200 mA maximum
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_3D-Simpl.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-BOTTOM.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-FRONT.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-isom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-isom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-LEFT.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-REAR.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-rear.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-RIGHT.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=BMXNRP0200_2D-TOP.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXNRP0200_3D-simpl&p_File_name=bmxnrp0200_2d-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000266_3D-CAD
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0991233984
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.4 kg CO2 eq.
    • 0.400734375
  • Standards
    • IEC 61010-2-201
    • IEC 61131-2
    • UL 61010-2-201
    • CSA C22.2 No 61010-2-201
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 17 kg CO2 eq.
    • 16.959234375
  • Attenuation
    • -23.5--14 dB 50/125 µm)
    • -20--14 dB 62.5/125 µm)
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 150 kg CO2 eq.
    • 149.8356363636
  • Directives
    • 2014/35/EU - low voltage directive
    • 2014/30/EU - electromagnetic compatibility
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Dielectric Strength
    • 1400 V DC between field and bus
    • 500 V DC between channels
  • Number Of Port
    • 2 RJ45 100BASE-TX IEEE 802.3u
    • 2 fiber optic 100BASE-FX IEEE 802.3u
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0325606406
    • 0 kg CO2 eq.
  • Local Signalling
    • 1 LED (green) for power supply status
    • 1 LED (red) for error condition (ERR)
    • 2 LEDs (green) for link status
    • 2 LEDs (green) for fiber port state and activity
  • Product Certifications
    • CE
    • RCM
    • CSA
    • EAC
    • Merchant Navy
    • UL
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-27
    • HTML Description : TSX M340 Ethernet Fiber Optic Media Converter, MM/LC, 2-channel,
    • Manufacturer : Square D
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 16.959234375
    • Distribution Carbon Footprint : 0.0325606406
    • Installation Carbon Footprint : 0.0991233984
    • Use Carbon Footprint : 149.8356363636
    • End Of Life Carbon Footprint : 0.400734375
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2438
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Optic Fiber Type : multi mode
    • Package Weight Lbs : 249.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fibre optic repeater
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Rise Fall Time : 3 ns
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 167 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 167.3272891527
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 249
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 264.9024
    • Recyclability Potential In : 32
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 1.0461010501
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.1126044141
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0002094323
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0003934492
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.9292334545000001
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0036603
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.003850357
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.1590235325
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0231443555
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0044059383
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.1251060364
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0063672023
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0151384219
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 167.16284888
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 16.935890625
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0325606406
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0947153203
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 149.7053090909
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.3943732031
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.6308259375
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 167.3272891527
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 16.959234375
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0325606406
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0991233984
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 149.8356363636
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.400734375
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.6459604688
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0037427173
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0037366535
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000013
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000033
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000060522
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000071
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000453219
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 3277.2528705646
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 206.9326171875
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.4536371484
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.03179375
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 3059.2698181818
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 9.5650042969
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -9.2871164062
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 2373.7347892479
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 225.597890625
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.021912
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.6764532422
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 2065.8501818182
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 81.5883515625
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -31.1619609375
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000067081
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000006789
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000017
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000026
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000060162
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000088
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000001028
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0002417172
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000349534
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000122
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000007161
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000203783
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000022526
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000002851
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 73.9042340005
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 70.2821953125
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.001171759
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3.4069992727
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2138676562
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3.5900742187
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000004732
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000004193
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000354
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.000000018
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000003
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000005599
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000013417
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000004749
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.0000000001
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000005
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.000000839
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000273
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000114
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 17864.2839425973
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0365388047
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 17863.7963636364
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.4510401562
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 49849.6520549267
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 49738.72265625
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000791742
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0046473516
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 110.9166545455
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0080176055
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.1895609766
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.1193009222
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0126552305
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000982383
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0001040742
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.1040418909
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0024014883
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0004376953
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.1185901406
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.05446875
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.06412139060000001
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 10877.4786475577
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.1295967188
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000028791
    • Net Use Of Fresh Water M3 Installation A5 : 0.0009853008
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.1332189091
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 10877.21484375
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0048049219
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 88659.729496581
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 65522.98828125
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0011418984
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.3224452734
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 23136.3490909091
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.06853725000000001
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -21502.51171875
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000030344
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000023149
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000066
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000000703
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000099
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000795
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.387753162
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0442237617
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0002723437
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0002100938
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.3422882909
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0007586719
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0014103516
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.007749843100000001
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0044713008
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000008131
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000432832
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0032304873
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000039587
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0006127734
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 13222.654687027
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.1344697266
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0010786758
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0007868789000000001
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 13222.5163636364
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0019881094
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0044450391
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 109234.6365412678
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 206.9326171875
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.4536371484
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10317.9375
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3059.2698181818
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 95650.04296875
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -92871.1640625
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 24522.3796952344
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 214.3442578125
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.4542499219
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 11058.12890625
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3502.464
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 9746.98828125
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -9937.62890625
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 74617.2514965969
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 74173.79296875
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0006049922
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0740298398
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 443.2023272727
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1815657422
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.6506000391
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 31034.54296875
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 31034.54296875
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 109231.5240412678
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 203.8201171875
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.4536371484
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10317.9375
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3059.2698181818
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 95650.04296875
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -92871.1640625
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 10856.7890625
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 10856.7890625
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -9839.390625
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 63761.4350903469
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 63317.9765625
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0006049922
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0740298398
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 443.2023272727
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1815657422
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.3333682031
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0139196836
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0139196836
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 154434.7800907095
    • Water Use M3 Eq Manufacturing A1 A3 : 55660.25390625
    • Water Use M3 Eq Distribution A4 : 0.0001235273
    • Water Use M3 Eq Installation A5 : 0.0423251367
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 57217.7454545455
    • Water Use M3 Eq End Of Life C1 C4 : 41556.73828125
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.2063684766
  • General Attributes
    • Product Or Component Type : fibre optic repeater
    • Range Of Product : Modicon X80
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=133444314&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 167.3272891527
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
