network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card

ETHERNET 10/100 RJ45

SQDBMXNOE0100 BMXNOE0100 3595863910674
1602.24 / EA
http://schema.org/OutOfStock

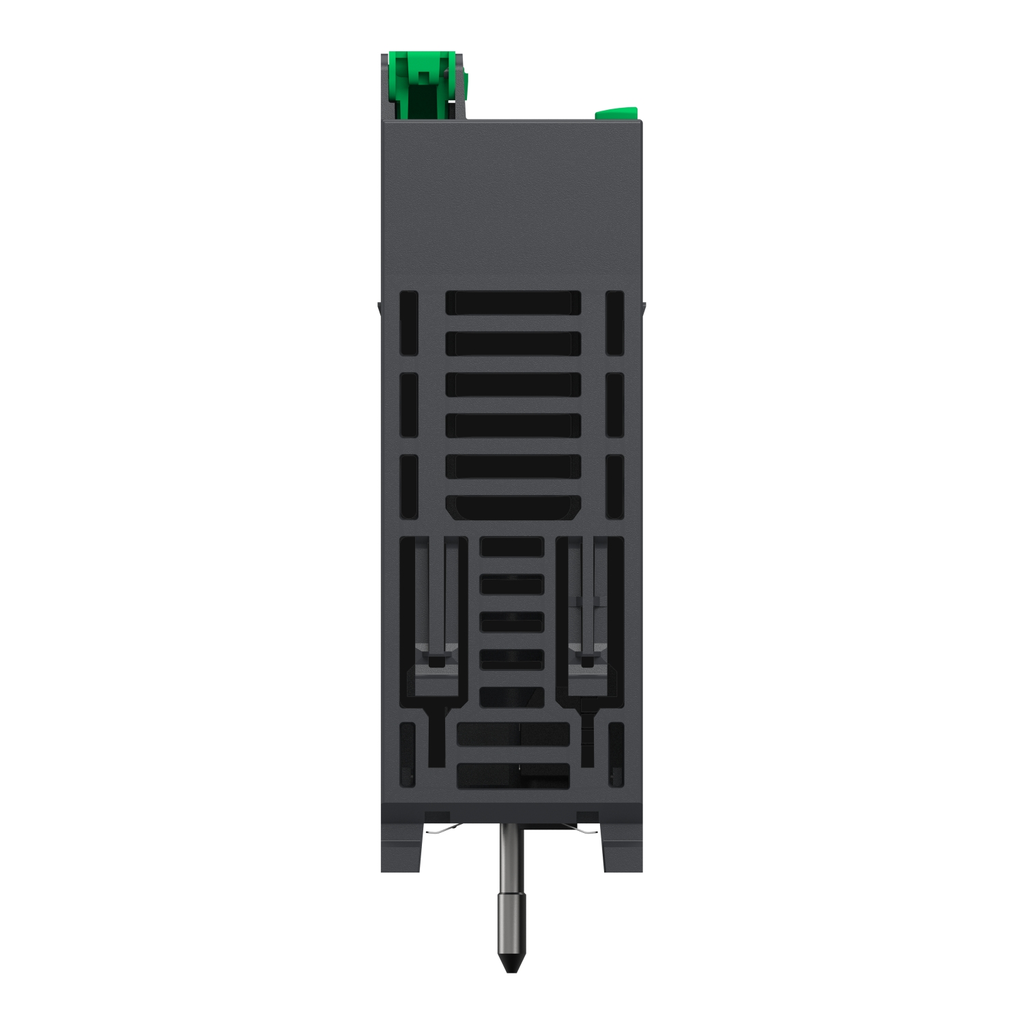

Mayer-DDS-network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card-1
  • IsSustainable: Yes
  • Warranty Length: 18 mth
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has RJ45 10/100Mbps connection. It is a module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
QTY
  • Product Description
  • Features
  • Specifications
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has RJ45 10/100Mbps connection. It is a module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • M340 serves as a all-in-one CPU
    • Plug-and-work solution
    • Reduced startup time
    • Increased network reliability and maintainability
    • Reduced total cost of ownership
  • Communications & Management Attributes
    • Communication Service : bandwidth management, Data Editor (via PC terminal), FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, web server configurable
  • Complementary Attributes
    • Integrated Connection Type : Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Local Signalling : 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR)
    • Carbon Footprint Of The Distribution Phase A4 : 0.0307299219, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.378203125
    • Carbon Footprint Of The Installation Phase A5 : 0.0935501953, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 16 kg CO2 eq., 16.005703125
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 96 kg CO2 eq., 96.3229090909
    • Memory Usage : application saving, activating the standard web server
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-29
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Concept : Transparent Ready
    • Control Type : RESET push-button cold restart
    • Current Consumption : 90 mA 24 V DC
    • Marking : CE
    • Package Weight Lbs : 235.000 g
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP network module
    • Protective Treatment : TC
    • Range Of Product : Modicon M340 automation platform
    • Returnability : Yes
    • Supply : internal power supply via rack
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 113 kg CO2 eq.
    • Medium Desc : network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2402021EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Memory Description : supplied Flash memory card (BMXRWSC016M)
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 112.8310954581
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP network module
    • Range Of Product : Modicon M340 automation platform
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico, United States
