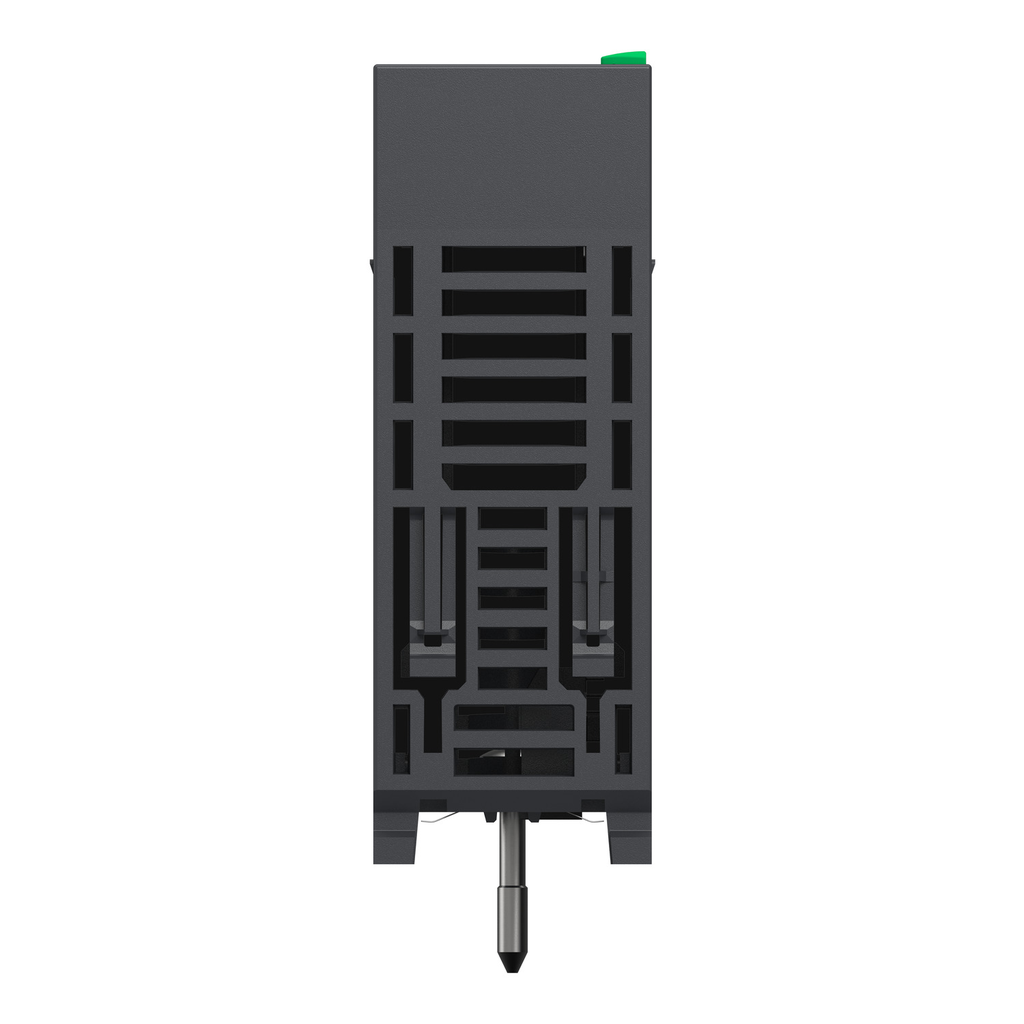

Ethernet TCP/IP network module, Modicon M340 automation platform, 4 x RJ45 10/100

Ethernet TCP/IP network module, Modicon M340 automation platform, 4 x RJ45 10/100

SQDBMXNOC0401 BMXNOC0401 785901834076
1954.23 / EACH
  • Certifications: ATEX Zone 2/22, CE, CSA, EAC, IECEx Zone 2/22, Merchant Navy, RCM, UL
  • Country of Origin: France
  • Current: 3.3 V, 555 mA
  • Standard: CSA C22.2 No 61010-2-201, EN/IEC 60079-0, EN/IEC 61000-6-5, EN/IEC 61010-2-201, EN/IEC 61131-2, EN/IEC 61850-3, IACS E10, UL 61010-2-201
  • Warranty Length: 18 mth
  • Weight: 0.2 kg, 0.44 lb
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
  • Product Description
  • Specifications
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
  • Main
    • Product Or Component Type : Ethernet TCP/IP network module
    • Protective Treatment : TC
    • Range Of Product : Modicon M340 automation platform
    • Integrated Connection Type : Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
    • Concept : Transparent Ready
  • Offer Sustainability
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Supply : Internal power supply via rack
    • Communication Service : Bandwidth management || Data Editor (via PC terminal) || FDR server || Rack Viewer || SNMP network administrator || Modbus TCP I/O Scanner and Messaging || Ethernet/IP I/O Scanner and Messaging || Embedded 4-port switch || RSTP support || Port mirroring
    • Product Weight : 0.44 lb(US) (0.2 kg)
    • Marking : CE
    • Module Format : Standard
    • Memory Usage : Application saving || Activating the standard web server
    • Current Consumption : 555 mA 3.3 V DC
    • Control Type : Processor or system fault (ERR)
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Local Signalling : for processor running (RUN) 1 LED (green) || for processor or system fault (ERR) 1 LED (red) || for status of Ethernet network (ETH STS) 1 LED (amber) || for MS (Module Status) 1 LED (green/red) || for NS (Network Status) 1 LED (green/red)
  • Environment
    • Ambient Air Temp For Op : 32…140 °F (0…60 °C)
    • Environmental Characteristic : Hazardous location class I division 2
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
    • Relative Humidity : 10…95 % without condensation
    • IP Degree Of Protection : IP20
    • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 || EN/IEC 61850-3 || EN/IEC 60079-0
    • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
  • Ordering And Shipping Details
    • Category : 18160 - MODICON M340
    • Nbr. Of Units In Pkg. : 1
    • Returnability : Yes
    • Discount Schedule : PC34
    • GTIN : 00785901834076
    • Country Of Origin : FR
  • Contractual Warranty
    • Warranty : 18 months
